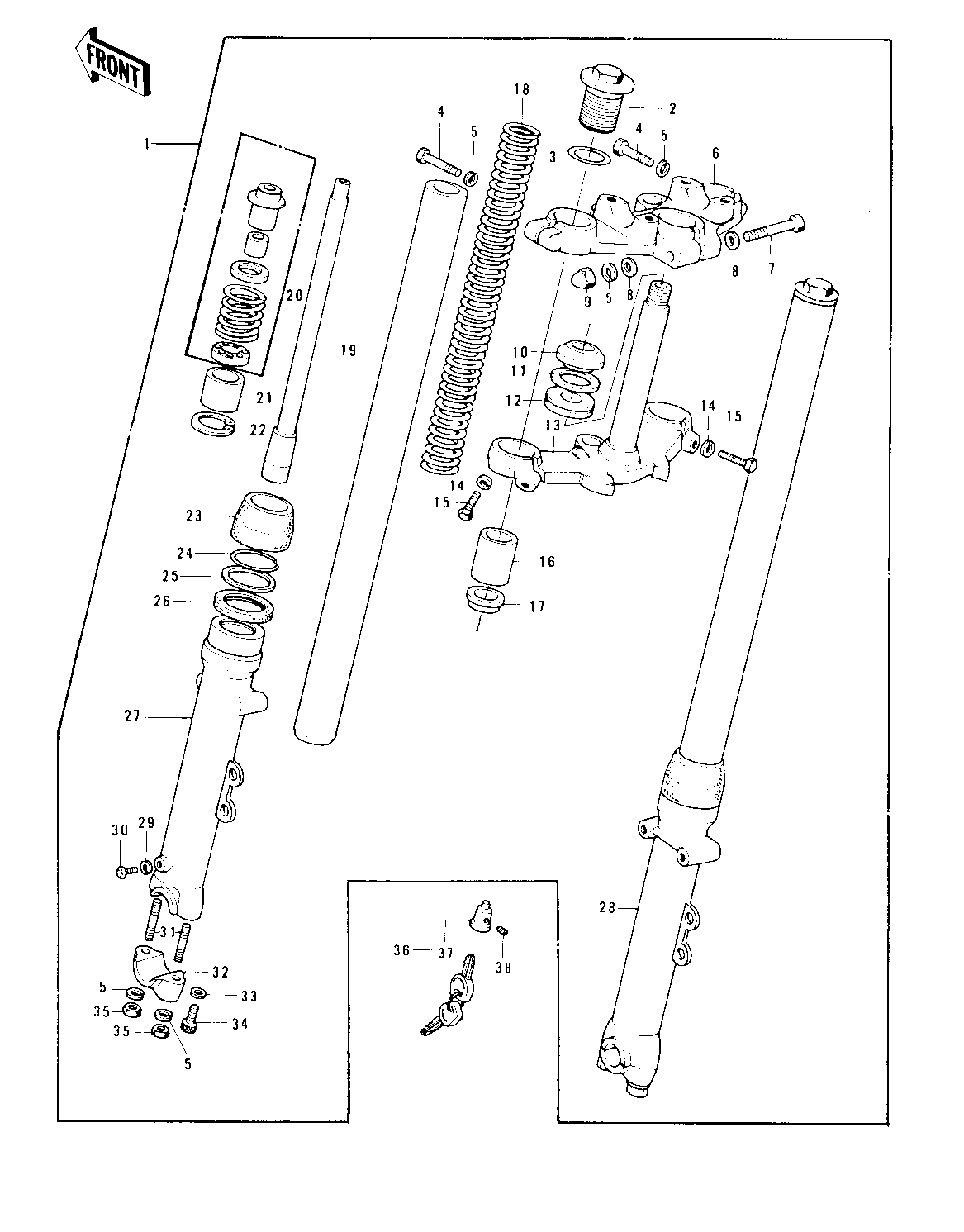

1976 LTD - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-175 1
BOLT-FORK TOP 2 44062-003 2
'O' RING FORK TOP 3 44046-015 2
BOLT-HEX HEAD.8M/M 4 44041-045 2
WASHER SPRING 8MM 5 461F0800 7
HEAD,STEERING 6 44039-073 1
BOLT-STEERING STEM H 7 44041-042 1
WASHER PLAIN 8MM 8 410B0800 2
NUT FUEL TANK FRONT 9 92020-007 1
CONE,STEERING STEM 10 92047-012 1
WASHER,PLAIN 11 92022-231 1
OIL SEAL,STEERING ST 12 92056-003 1
STEM,STEERING 13 44037-098 1
WASHER SPRING 12MM 14 461F1200 2
BOLT-HEX HEAD,12X36 15 92003-064 2
SPACER 16 44028-039 2
GUIDE-FORK SPRING 17 44029-019 2
SPRING,FORK 18 44026-071 2
TUBE,FORK INNER 19 44013-037 2
CYLINDER-FORK 20 44022-027 2
PISTON,FORK 21 44018-009 2
CIRCLIP,FORK PISTON 22 44044-019 2
DUST SHEILD,FORK 23 44010-032 2
RING-SNAP,FORK OIL 24 92033-1100 2
WASHER-OIL SEAL FIT 25 44043-044 2
OIL SEAL,FORK 26 44009-024 2
TUBE,RH,FORK OUTER 27 44006-063 1
TUBE,LH,FORK OUTER 28 44005-065 1
GASKET FORK DRAIN PL 29 44045-002 2
SCREW PAN HEAD 4X8 30 220B0408 2
STUD,8X35 31 92004-1009 2
HOLDER,FRONT AXLE 32 44063-014 2
GASKET,FORK CYLINDER 33 44045-057 2
BOLT-FORK CYLINDER 34 44041-040 2
NUT,LOCK,8MM 35 92015-1124 4
LOCK,STEERING 36 27016-048 1
SCREW,SEAT LOCK 38 92014-016 1
