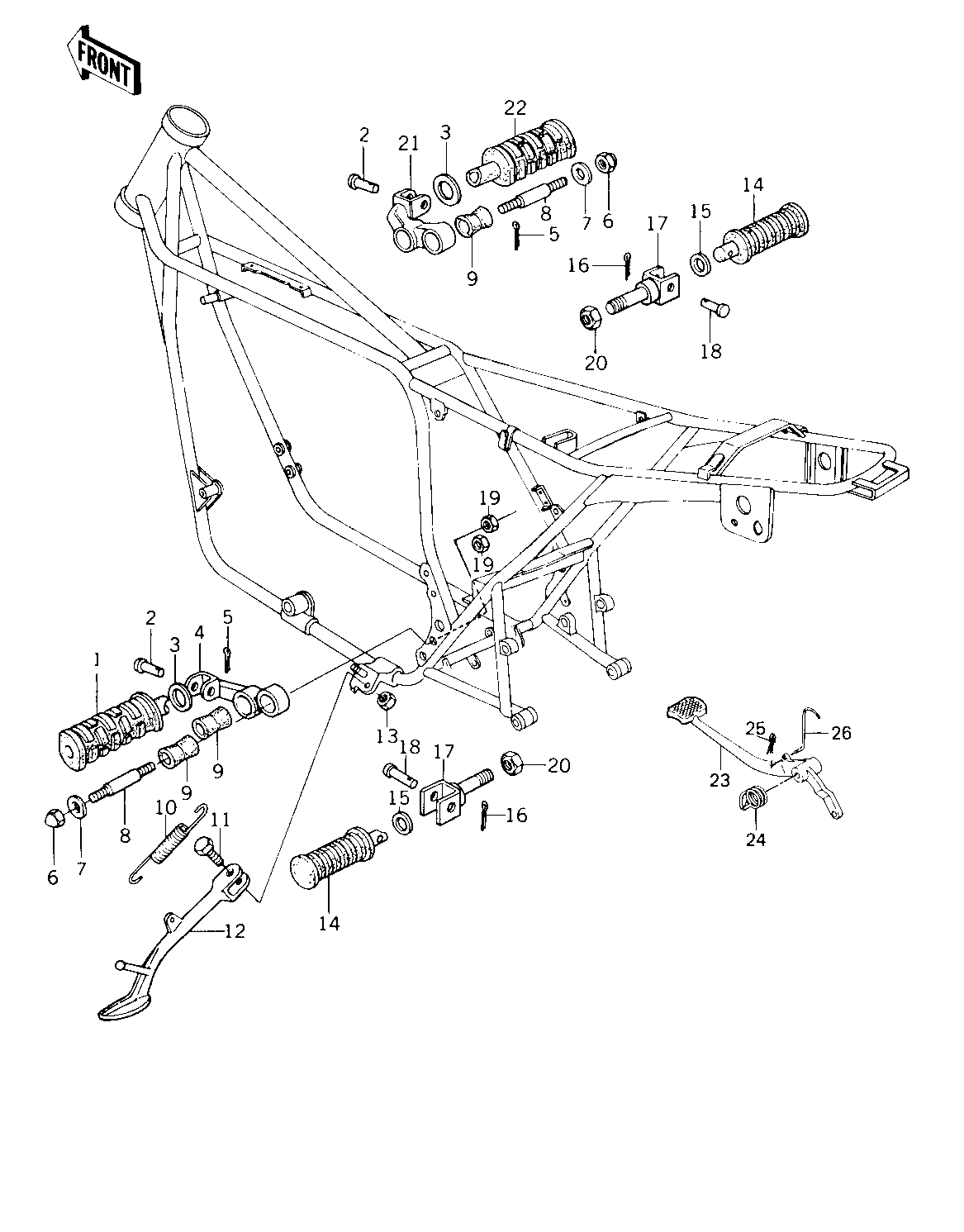

1976 LTD - FOOTRESTS/STAND/BRAKE PEDAL
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BAR-FOOTREST,L.H | 1 | 34028-011 | 1 | ||
| PIN-FOOTREST BAR FIT | 2 | 92043-080 | 2 | ||
| WASHER,PLAIN | 3 | 92022-250 | 2 | ||
| BRACKET,FOOTREST,L.H | 4 | 34003-036 | 1 | ||
| PIN COTTER 2.5X16 | 5 | 550D2516 | 2 | ||
| NUT,CAP AND LOCK,8MM | 6 | 92019-013 | 4 | ||
| CAP,FOOTRESTBAR | 7 | 92102-010 | 4 | ||
| STUD,FOOTREST BAR FI | 8 | 92004-048 | 4 | ||
| DAMPER RUBBER,FOOTRS | 9 | 92075-140 | 4 | ||
| SPRING,SIDE STAND | 10 | 34025-005 | 1 | ||
| BOLT-SIDE STAND | 11 | 92003-079 | 1 | ||
| STAND-SIDE | 12 | 34024-065 | 1 | ||
| NUT 10MM | 13 | 315B1000 | 1 | ||
| RUBBER,FOOTREST | 14 | 92076-027 | 2 | ||
| WASHER-PLAIN (OPT) | 15 | 92022-199 | 2 | ||
| PIN,COTTER,2.0X12 | 16 | 550D2012 | 2 | ||
| BRACKET,REAR FOOTRES | 17 | 33028-011 | 2 | ||
| PIN | 18 | 92043-1464 | 2 | ||
| NUT 10MM | 19 | 315B1000 | 4 | ||
| NUT-HEX-FINE,12MM | 20 | 315B1200 | 2 | ||
| BRACKET,FOOTREST,R.H | 21 | 34003-037 | 1 | ||
| BAR-FOOTREST,R.H | 22 | 34028-012 | 1 | ||
| PEDAL,BRAKE | 23 | 43001-073 | 1 | ||
| SPRING,BRAKE PEDAL | 24 | 43005-039 | 1 | ||
| PIN COTTER 1.6X10 | 25 | 550D1610 | 1 | ||
| HOOK,BRK LAMP SW SPR | 26 | 27012-010 | 1 |
