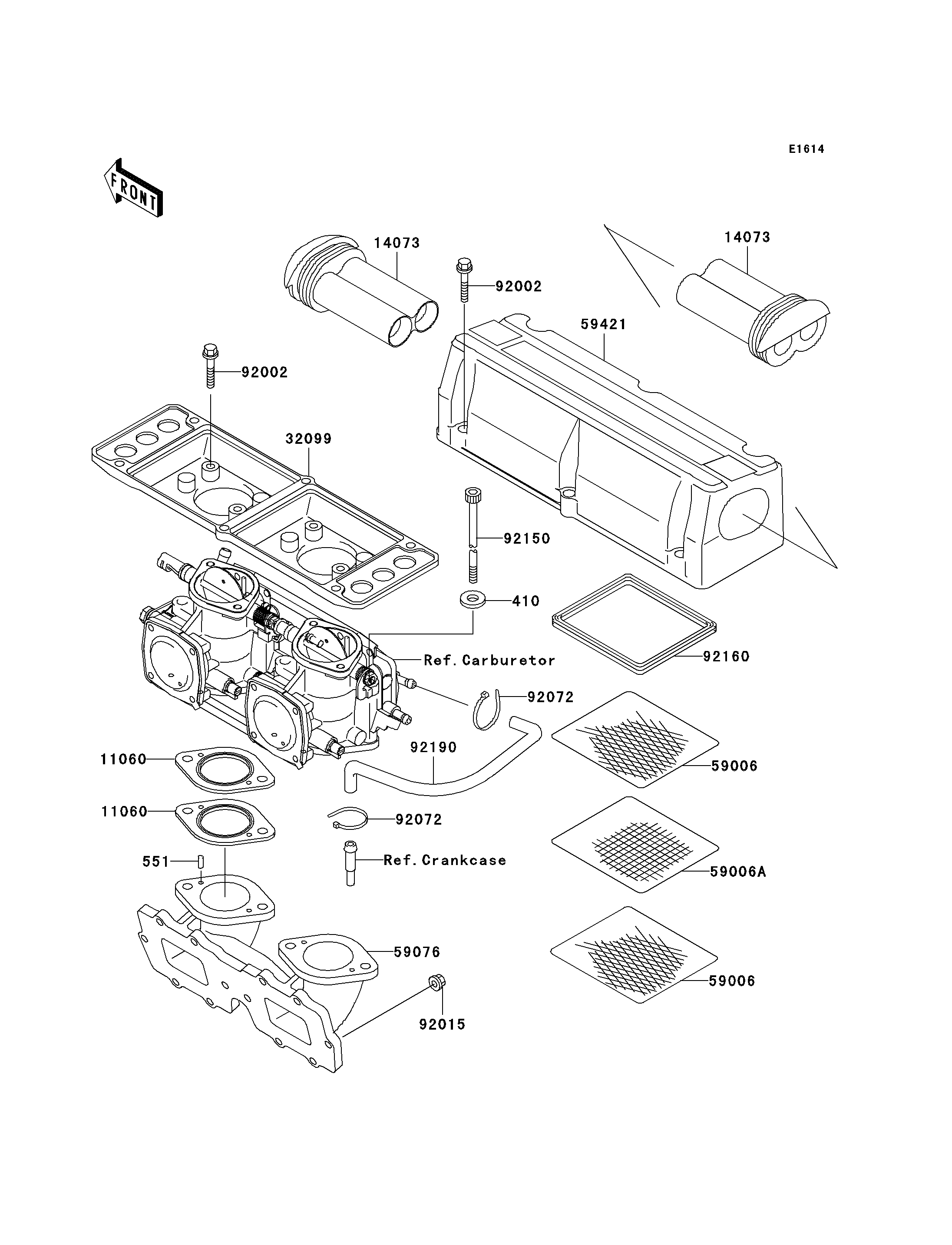

2011 JET SKI® 800 SX-R™ - Flame Arrester
410
551
11060
11060
14073
14073
32099
59006
59006
59006A
59076
59421
92002
92002
92015
92072
92072
92150
92160
92190
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WASHER-PLAIN-SMALL,8MM | 410 | 410S0800 | 4 | ||
| PIN-DOWEL | 551 | 551R0416 | 4 | ||
| GASKET,CARBURETOR | 11060 | 11060-3761 | 4 | ||
| DUCT | 14073 | 14073-3733 | 2 | ||
| CASE | 32099 | 32099-3801 | 1 | ||
| ARRESTER-FLAME | 59006 | 59006-3707 | 4 | ||
| ARRESTER-FLAME | 59006A | 59006-3708 | 2 | ||
| MANIFOLD-INTAKE | 59076 | 59076-3730 | 1 | ||
| COVER-INTAKE | 59421 | 59421-3733 | 1 | ||
| BOLT,6X30 | 92002 | 92002-3726 | 10 | ||
| NUT,CAP,6MM | 92015 | 92015-1385 | 12 | ||
| BAND,L=152 | 92072 | 92072-3874 | 2 | ||
| BOLT,SOCKET,8X85 | 92150 | 92150-3852 | 4 | ||
| DAMPER | 92160 | 92160-3704 | 2 | ||
| TUBE | 92190 | 92190-3965 | 1 |
| WASHER-PLAIN-SMALL,8MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PIN-DOWEL | |
| REF # | 551 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| GASKET,CARBURETOR | |
| REF # | 11060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DUCT | |
| REF # | 14073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CASE | |
| REF # | 32099 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ARRESTER-FLAME | |
| REF # | 59006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| ARRESTER-FLAME | |
| REF # | 59006A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MANIFOLD-INTAKE | |
| REF # | 59076 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-INTAKE | |
| REF # | 59421 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X30 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| NUT,CAP,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| BAND,L=152 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X85 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE | |
| REF # | 92190 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
