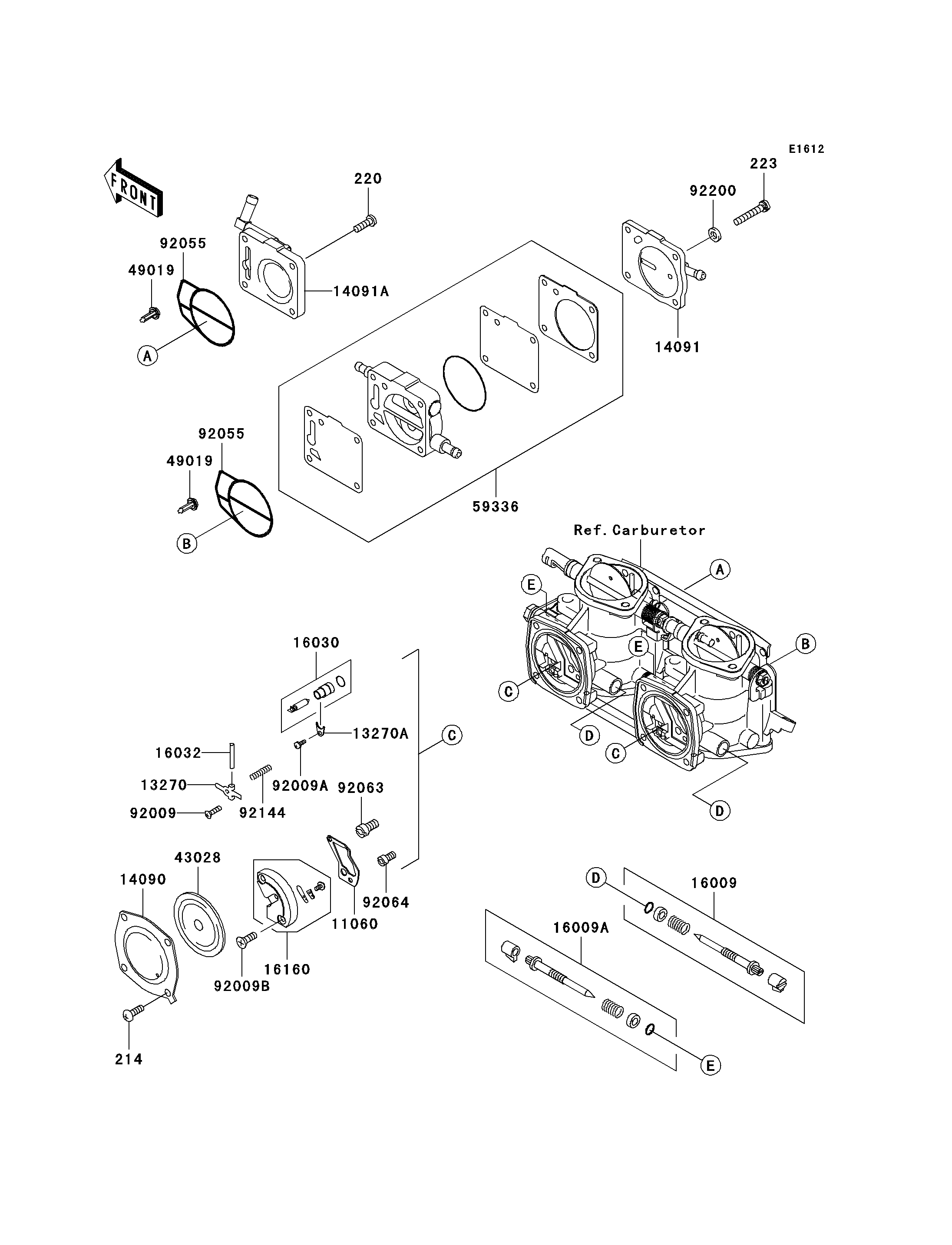

2011 JET SKI® 800 SX-R™ - Carburetor Parts

DOWNLOAD PDF
SELECT A NEW PART
214
220
223
11060
13270
13270A
14090
14091
14091A
16009
16009A
16030
16032
16160
43028
49019
49019
59336
92009
92009A
92009B
92055
92055
92063
92064
92144
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN+-,5X10 214 214R0510 8
SCREW-PAN-CROS,5X16 220 220R0516 4
SCREW-PAN-WS-CROS,5X35 223 223R0535 4
GASKET 11060 11060-3774 2
PLATE 13270 13270-3828 2
PLATE 13270A 13270-3829 2
COVER 14090 14090-3785 2
COVER 14091 14091-3774 1
COVER 14091A 14091-3775 1
NEEDLE-JET,SLOW 16009 16009-3717 2
NEEDLE-JET,MAIN 16009A 16009-3718 2
VALVE-FLOAT 16030 16030-3703 2
PIN,FLOAT 16032 16032-006 2
BODY 16160 16160-3737 2
DIAPHRAGM 43028 43028-3709 2
FILTER-FUEL 49019 49019-3713 2
CASE-PUMP,DIAPHRAGM 59336 59336-3712 1
SCREW,3X8 92009 92009-3712 2
SCREW,3X7 92009A 92009-3821 2
SCREW,4X14 92009B 92009-3822 4
RING-O 92055 92055-3745 2
JET-MAIN,#132.5 92063 92063-3724 2
JET-PILOT,#72.5 92064 92064-3704 2
SPRING 92144 92144-3756 2
WASHER,5.3X10X1.0 92200 92200-3745 4
