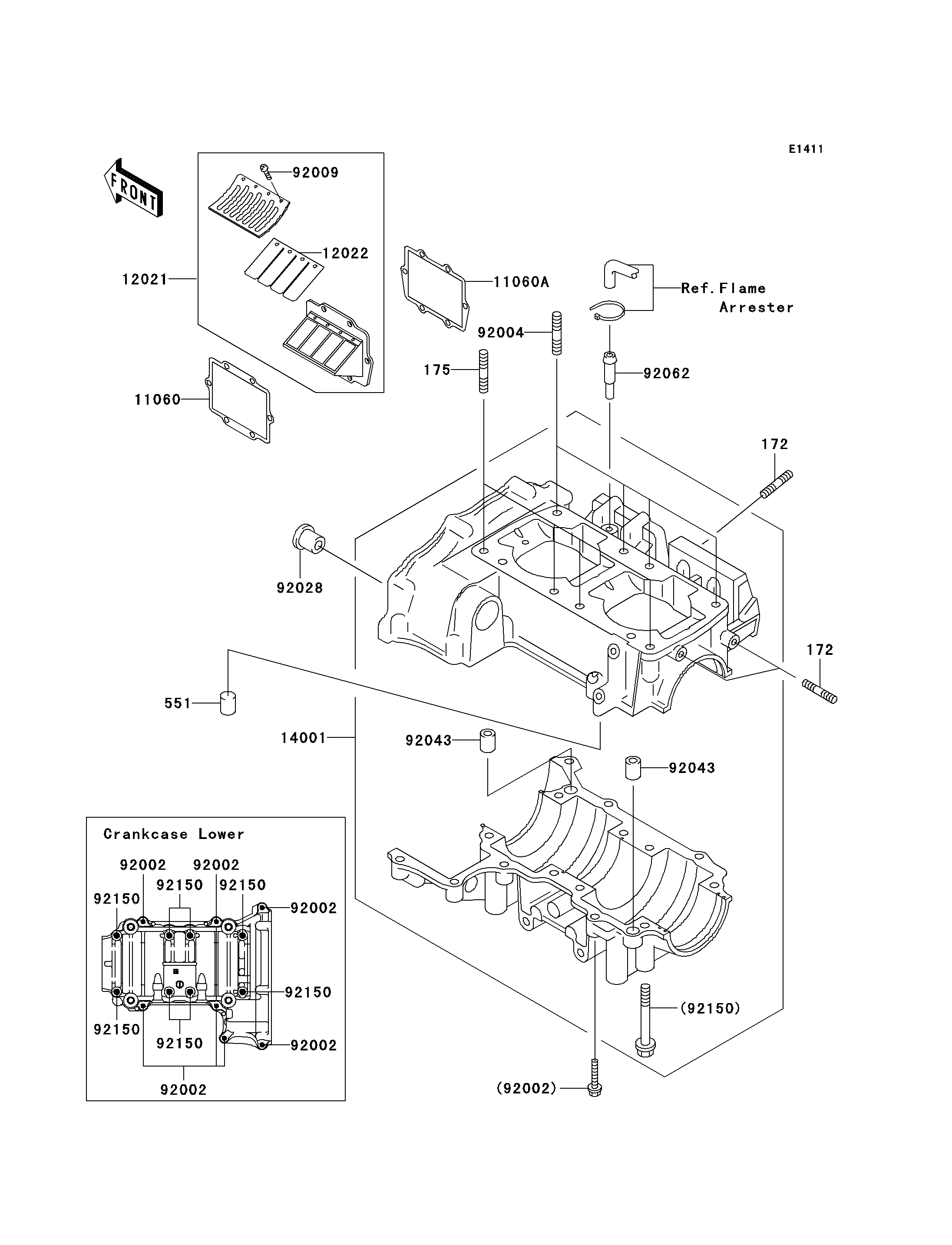

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
172
172
175
551
11060
11060A
12021
12022
14001
92002
92002
92002
92002
92002
92004
92009
92028
92043
92043
92062
92150
92150
92150
92150
92150
92150
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-STUD,6X20 | 172 | 172R0620 | 14 | ||
| BOLT-STUD-FINE,10X35 | 175 | 175R1035 | 4 | ||
| PIN-DOWEL | 551 | 551R0612 | 1 | ||
| GASKET,REED VALVE | 11060 | 11060-3717 | 2 | ||
| GASKET,REED VALVE | 11060A | 11060-3757 | 2 | ||
| VALVE-ASSY-REED | 12021 | 12021-3708 | 2 | ||
| VALVE-REED | 12022 | 12022-3703 | 4 | ||
| SET-CRANKCASE | 14001 | 14001-5391 | 1 | ||
| BOLT,6X30 | 92002 | 92002-3726 | 7 | ||
| STUD,10X35 | 92004 | 92004-3752 | 4 | ||
| SCREW,3X6 | 92009 | 92009-1371 | 16 | ||
| BUSHING | 92028 | 92028-3718 | 1 | ||
| PIN,DOWEL,10X14 | 92043 | 92043-1037 | 2 | ||
| NOZZLE | 92062 | 92062-3705 | 1 | ||
| BOLT,8X65 | 92150 | 92150-3708 | 8 |
