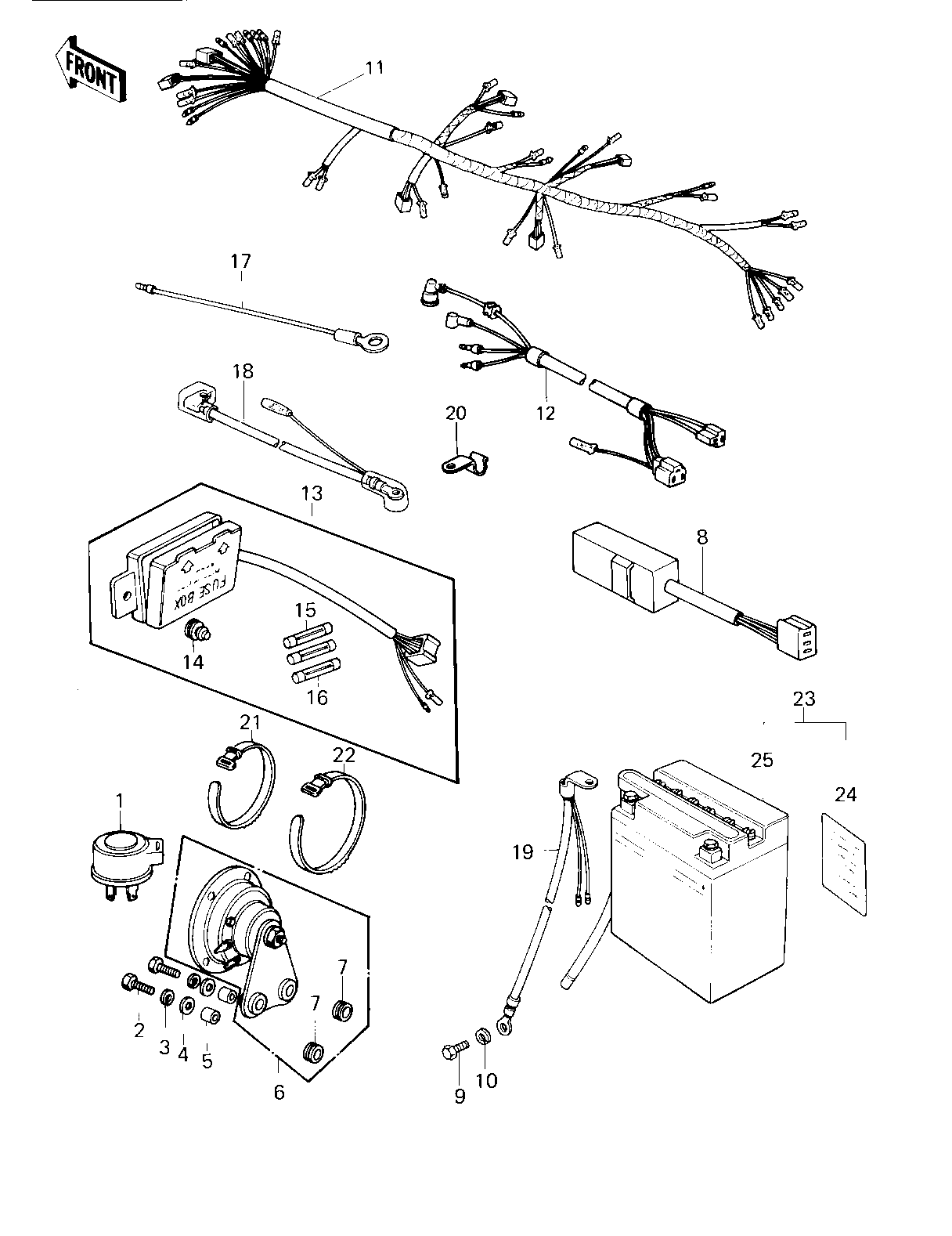

1980 LTD II - CHASSIS ELECTRICAL EQUIPMENT
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| RELAY-TURN SIGNAL | 1 | 27002-011 | 1 | ||
| BOLT HEX HEAD 8X28 | 2 | 114G0828 | 2 | ||
| WASHER SPRING 8MM | 3 | 461F0800 | 2 | ||
| WASHER PLAIN 8MM | 4 | 411B0800 | 2 | ||
| COLLAR,HORN FITTING | 5 | 92027-271 | 2 | ||
| HORN | 6 | 27003-074 | 1 | ||
| DAMPER RUBBER,HORN M | 7 | 92075-294 | 2 | ||
| SWITCH,OUTAGE,INDICT | 8 | 28019-001 | 1 | ||
| BOLT-UPSET,6X12 | 9 | 112G0612 | 1 | ||
| WASHER SPRING 6MM | 10 | 461F0600 | 1 | ||
| WIRING HARNESS,MAIN | 11 | 26001-1102 | 1 | ||
| WIRING HARNESS | 12 | 26001-1024 | 1 | ||
| FUSE ASSY | 13 | 26004-035 | 1 | ||
| DAMPER RUBBER,FUSE | 14 | 92075-279 | 1 | ||
| FUSE-20A | 15 | 26006-005 | 2 | ||
| FUSE 10A | 16 | 26006-003 | 3 | ||
| LEAD WIRE,SIGNAL LAM | 17 | 26011-063 | 4 | ||
| WIRE-LEAD,BATTERY | 18 | 26011-1146 | 1 | ||
| WIRE-LEAD,BATTERY | 19 | 26011-1146 | 1 | ||
| CLAMP | 20 | 92037-1044 | 1 | ||
| BAND,SHORT | 21 | 92072-030 | 4 | ||
| BAND,WIRING HARNESS | 22 | 92072-056 | 3 | ||
| YUA BAT YB14L-A2 | 23 | 26012-1008 | 1 | ||
| LABEL-WARNING,BATTER | 24 | 56040-1036 | 1 | ||
| YUA BAT YB14L-A2 | 25 | 26012-1008 | 1 | USE FOR CANADIAN MARKET |
