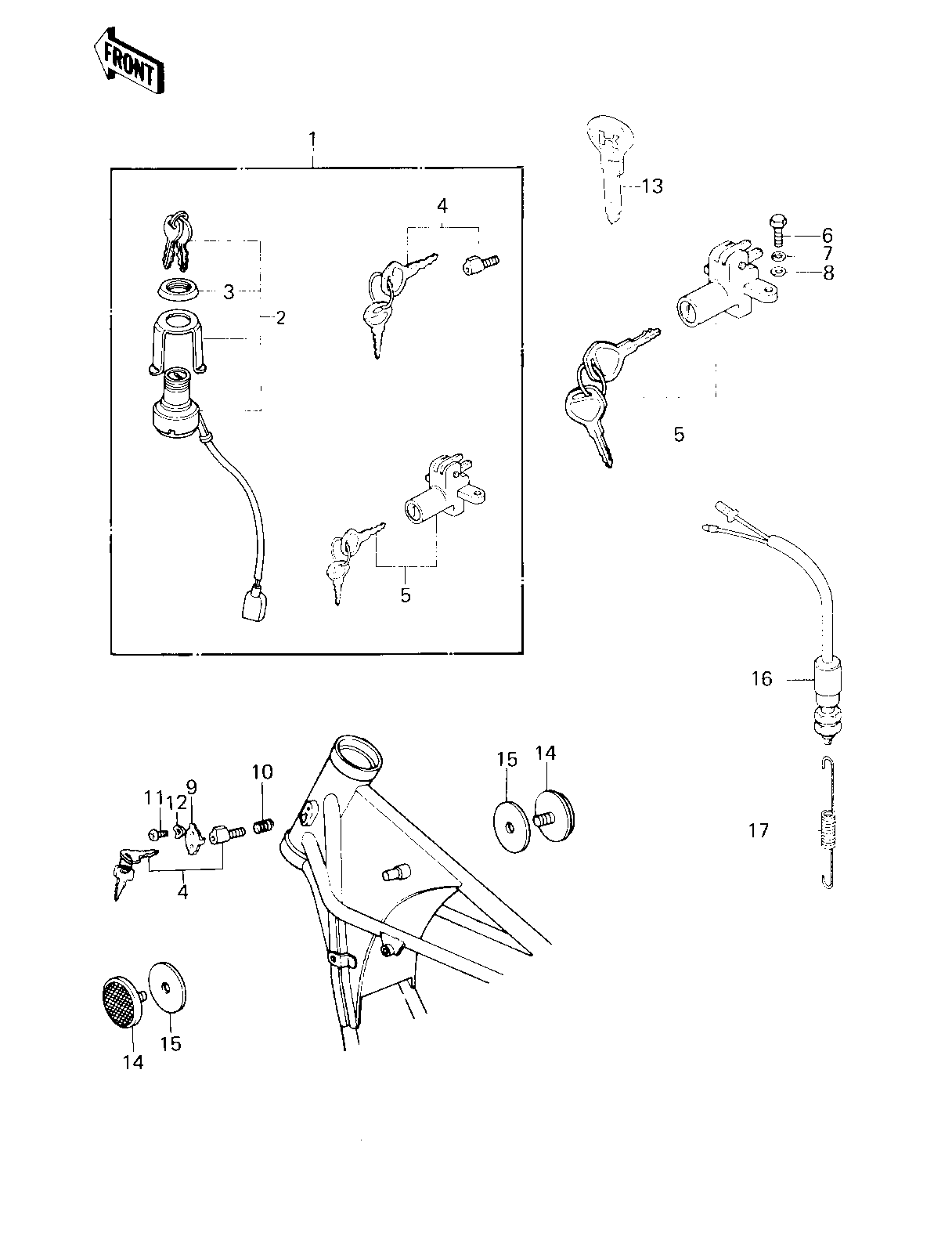

1980 LTD II - IGNITION SWITCH/LOCKS/REFLECTORS
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LOCK SET,KZ750B4 | 1 | 27004-5029 | 1 | ||
| SWITCH-ASSY,IGNITION | 2 | 27005-5006 | 1 | ||
| NUT,IGNITION SW LOCK | 3 | 27007-004 | 1 | ||
| LOCK-ASSY,STEERING | 4 | 27016-5009 | 1 | ||
| LOCK-ASSY,SEAT | 5 | 27016-5010 | 1 | ||
| BOLT-UPSET 6X14 | 6 | 112B0614 | 1 | ||
| WASHER SPRING 6MM | 7 | 461F0600 | 1 | ||
| WASHER PLAIN 6MM | 8 | 410B0600 | 1 | ||
| CAP,STEERING LOCK | 9 | 11012-1134 | 1 | ||
| SPRING-STEERING LOCK | 10 | 27032-001 | 1 | ||
| SCREW-TAPPING | 11 | 92008-007 | 1 | ||
| WASHER | 12 | 92097-003 | 1 | ||
| KEY-LOCK,BLANK | 13 | 27008-1103 | (1 | OPTION | |
| REFLECTOR,REFLEX | 14 | 28012-016 | 2 | ||
| DAMPER RUBBER,REFLEC | 15 | 92094-011 | 2 | ||
| SWITCH-BRAKE LAMP | 16 | 27010-015 | 1 | ||
| SPRING-BRAKE LAMP SW | 17 | 27011-011 | 1 |
