Parts Diagrams |

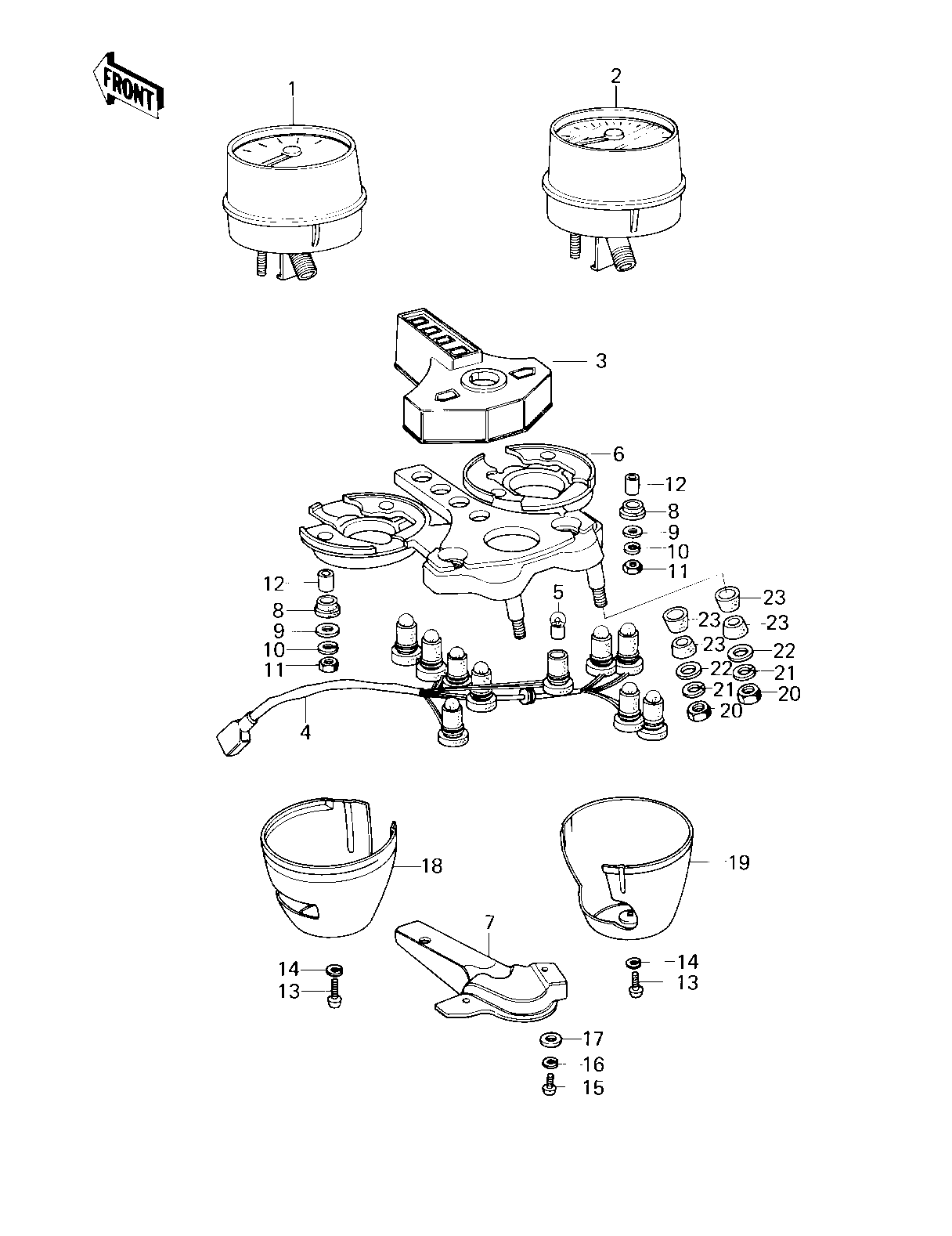

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SPEEDOMETER ASSY,MPH | 1 | 25005-1068 | 1 | ||
| SPEEDOMETER ASSY,KPH (Canada) | 1 | 25005-1013 | 1 | ||
| TACHOMETER ASSY | 2 | 25015-1008 | 1 | ||
| COVER,METER,INDICATE | 3 | 25023-015 | 1 | ||
| SOCKET,SPEEDOMETER | 4 | 25011-049 | 1 | ||
| BULB 12V 3W | 5 | 92069-018 | 10 | ||
| BRACKET,METER | 6 | 25008-045 | 1 | ||
| COVER,METER BRACKET | 7 | 25024-006 | 1 | ||
| RUBBER,METER | 8 | 92075-172 | 4 | ||
| WASHER,PLAIN,5MM | 9 | 92022-241 | 4 | ||
| WASHER SPRING 5MM | 10 | 461F0500 | 4 | ||
| NUT 5MM | 11 | 312B0500 | 4 | ||
| COLLAR,METER | 12 | 92027-211 | 4 | ||
| SCREW PAN HEAD 3X8 | 13 | 220B0308 | 2 | ||
| WASHER SPRING 3MM | 14 | 461F0300 | 2 | ||
| SCREW PAN HEAD 3X8 | 15 | 220B0308 | 3 | ||
| WASHER SPRING 3MM | 16 | 461F0300 | 3 | ||
| WASHER PLAIN 3MM | 17 | 410B0300 | 3 | ||
| COVER,SPEEDOMETER | 18 | 25012-023 | 1 | ||
| COVER,TACHOMETER | 19 | 25012-024 | 1 | ||
| NUT,8MM | 20 | 311B0800 | 2 | ||
| WASHER SPRING 8MM | 21 | 461F0800 | 2 | ||
| WASHER FUEL TANK FIT | 22 | 92022-035 | 2 | ||
| DAMPER RUBBER | 23 | 92075-080 | 4 |
