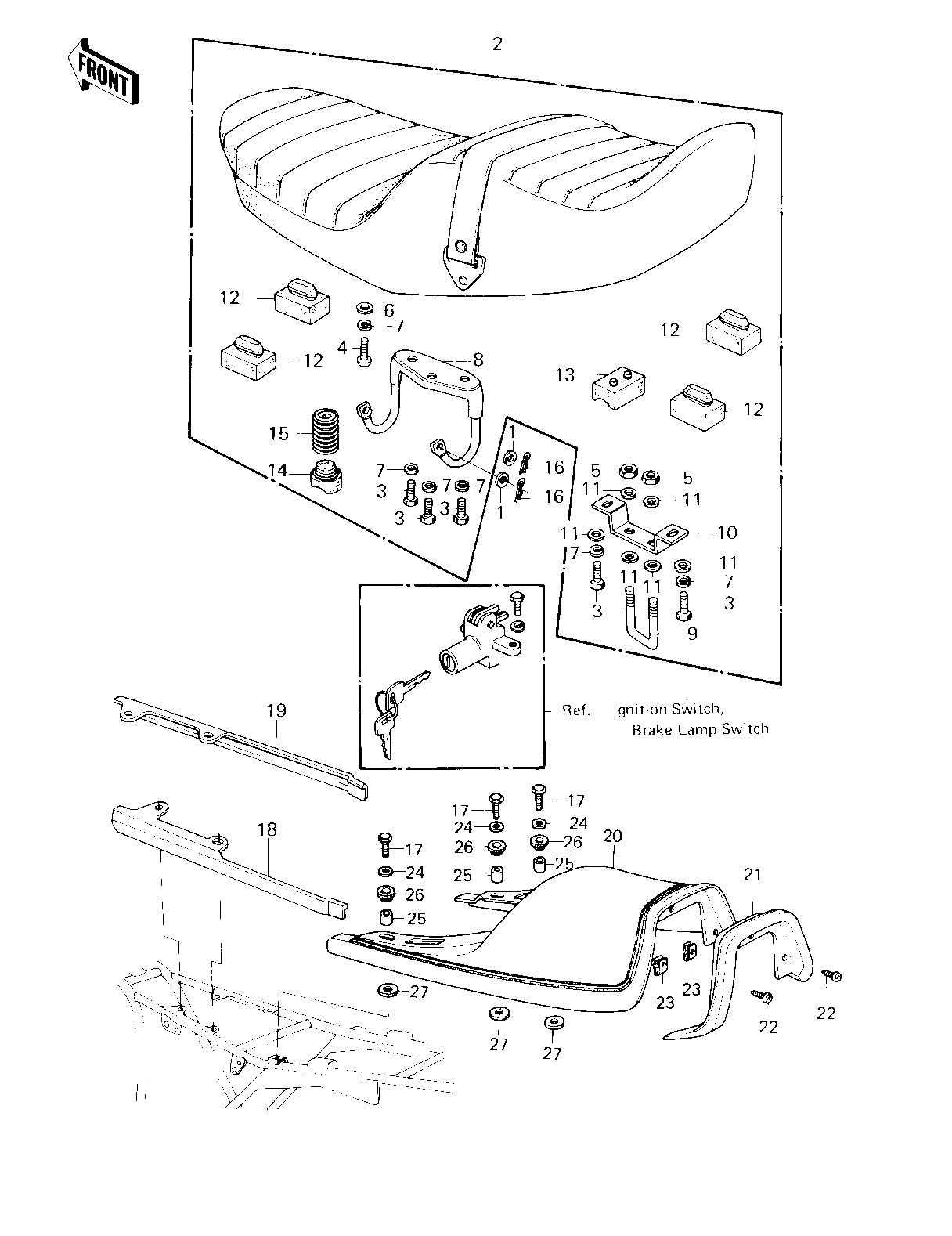

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WASHER PLAIN 8MM | 1 | 410B0800 | 2 | ||
| SEAT-ASSY,DUAL | 2 | 53001-1063 | 1 | ||
| BOLT-UPSET 6X14 | 3 | 112B0614 | 5 | ||
| SCREW PAN HEAD 6X14 | 4 | 220B0614 | 1 | ||
| NUT 6MM | 5 | 311B0600 | 4 | ||
| WASHER PLAIN 6MM | 6 | 411B0600 | 1 | ||
| WASHER SPRING 6MM | 7 | 461F0600 | 6 | ||
| HINGE | 8 | 53009-029 | 1 | ||
| CATCH, SEAT | 9 | 53056-002 | 1 | ||
| BRACKET,SEAT CATCH | 10 | 53058-002 | 1 | ||
| WASHER 6.5X20X1.6T | 11 | 92022-125 | 6 | ||
| DAMPER RUBBER | 12 | 92075-099 | 4 | ||
| UNAVAILABLE IN PRICE BOOK | 13 | 92075-13 | 1 | ||
| DAMPER RUBBER | 14 | 92075-276 | 1 | ||
| SPRING | 15 | 92081-147 | 1 | ||
| PIN,SNAP | 16 | 554A0800 | 2 | ||
| BOLT 6X22 | 17 | 112B0622 | 5 | ||
| COVER,FRONT SEAT,L.H | 18 | 53043-014-D2 | 1 | ||
| COVER,FRONT SEAT,R.H | 19 | 53043-015-D2 | 1 | ||
| COVER,RR SEAT,R.RED | 20 | 53043-010-D2 | 1 | ||
| COVER,SEAT | 21 | 53057-005 | 1 | ||
| SCREW,SEAT COVER FIT | 22 | 92008-010 | 3 | ||
| NUT,SEAT COVER | 23 | 92018-006 | 3 | ||
| WASHER,PLAIN,7MM | 24 | 92022-228 | 5 | ||
| COLLAR | 25 | 92027-241 | 5 | ||
| RUBBER,FENDER COVER | 26 | 92075-174 | 5 | ||
| DAMPER RUBBER | 27 | 92075-175 | 5 |
