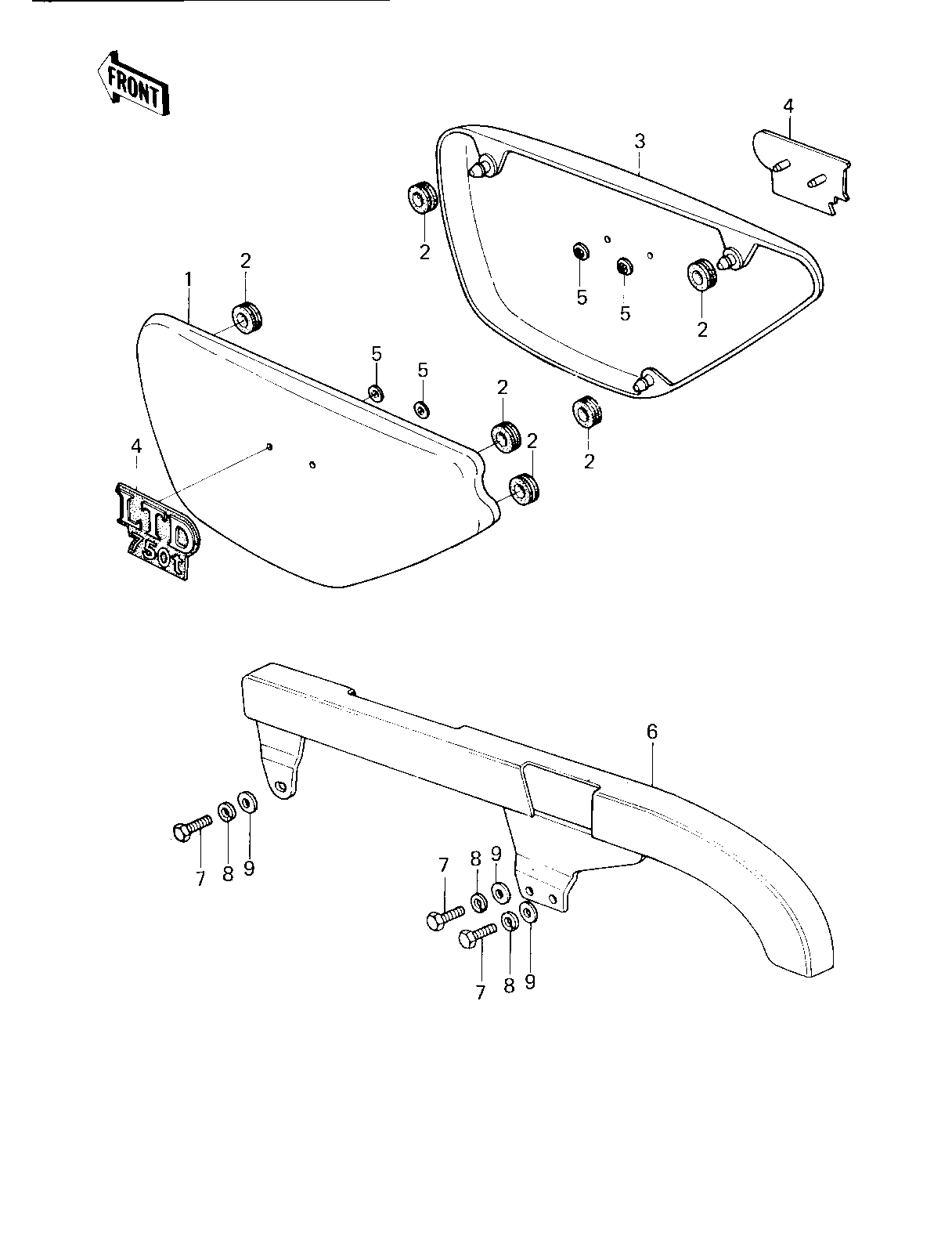

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,SIDE,L.H,R.RED | 1 | 36001-1076-D2 | 6 | ||
| GROMMET | 2 | 92071-056 | 6 | ||
| COVER,SIDE,R.H,R.RED | 3 | 36001-1077-D2 | 1 | ||
| MARK,SIDE COV,LTD750 | 4 | 56018-1148 | 2 | ||
| NUT,LOCK,3MM | 5 | 92018-005 | 4 | ||
| CASE,CHAIN | 6 | 36014-1039 | 1 | ||
| BOLT-UPSET,6X16 | 7 | 112G0616 | 3 | ||
| WASHER SPRING 6MM | 8 | 461F0600 | 3 | ||
| WASHER PLAIN 6MM | 9 | 410B0600 | 3 |
| COVER,SIDE,L.H,R.RED | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| COVER,SIDE,R.H,R.RED | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COV,LTD750 | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,3MM | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CASE,CHAIN | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X16 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
