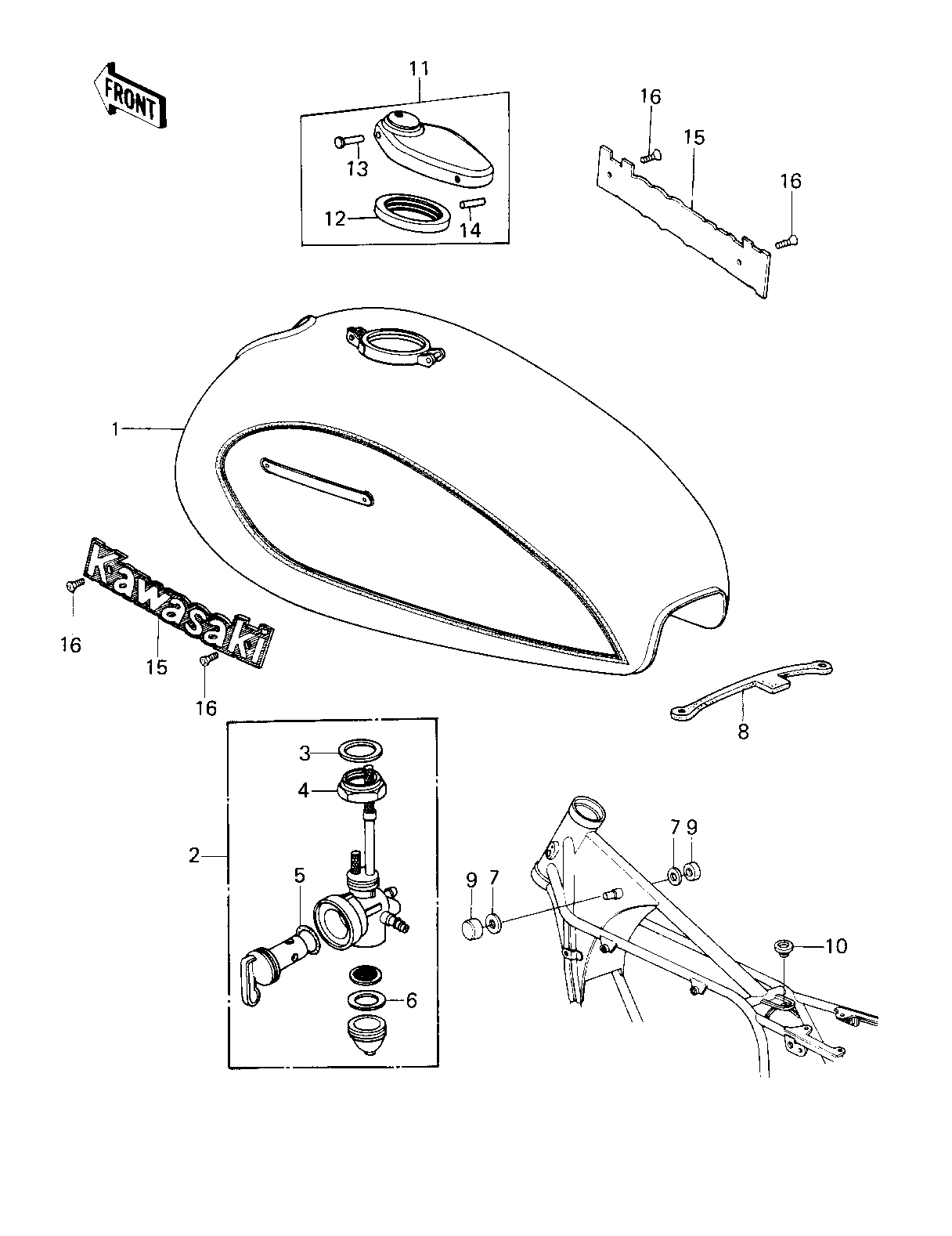

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TANK-FUEL,L.RUBY RED | 1 | 51001-106-D2 | 1 | ||
| COCK ASSY,FUEL | 2 | 51023-050 | 1 | ||
| GASKET-FUEL COCK JNT | 3 | 92065-081 | 1 | ||
| FUEL COCK JOINT NUT | 4 | 51035-009 | 1 | ||
| "0" RING, 10MM | 5 | 670B2010 | 1 | ||
| GASKET FUEL COCK CUP | 6 | 51037-010 | 1 | ||
| WASHER-PL-10.5X26X2. | 7 | 92022-044 | 2 | ||
| BAND,FUEL TANK | 8 | 92072-042 | 1 | ||
| DAMPER RUBBER,FL TAN | 9 | 92075-125 | 2 | ||
| DAMPER RUBBER,FL TK | 10 | 92075-274 | 1 | ||
| CAP,FUEL TANK | 11 | 51048-012 | 1 | ||
| GASKET-FUEL TANK CAP | 12 | 51059-008 | 1 | ||
| PIN,HOOK | 13 | 92043-126 | 1 | ||
| PIN,CAP HINGE | 14 | 92043-127 | 1 | ||
| EMBLEM,FUEL TANK | 15 | 56014-1037 | 2 | ||
| SCREW-CSK-CROS | 16 | 221C0306 | 4 |
