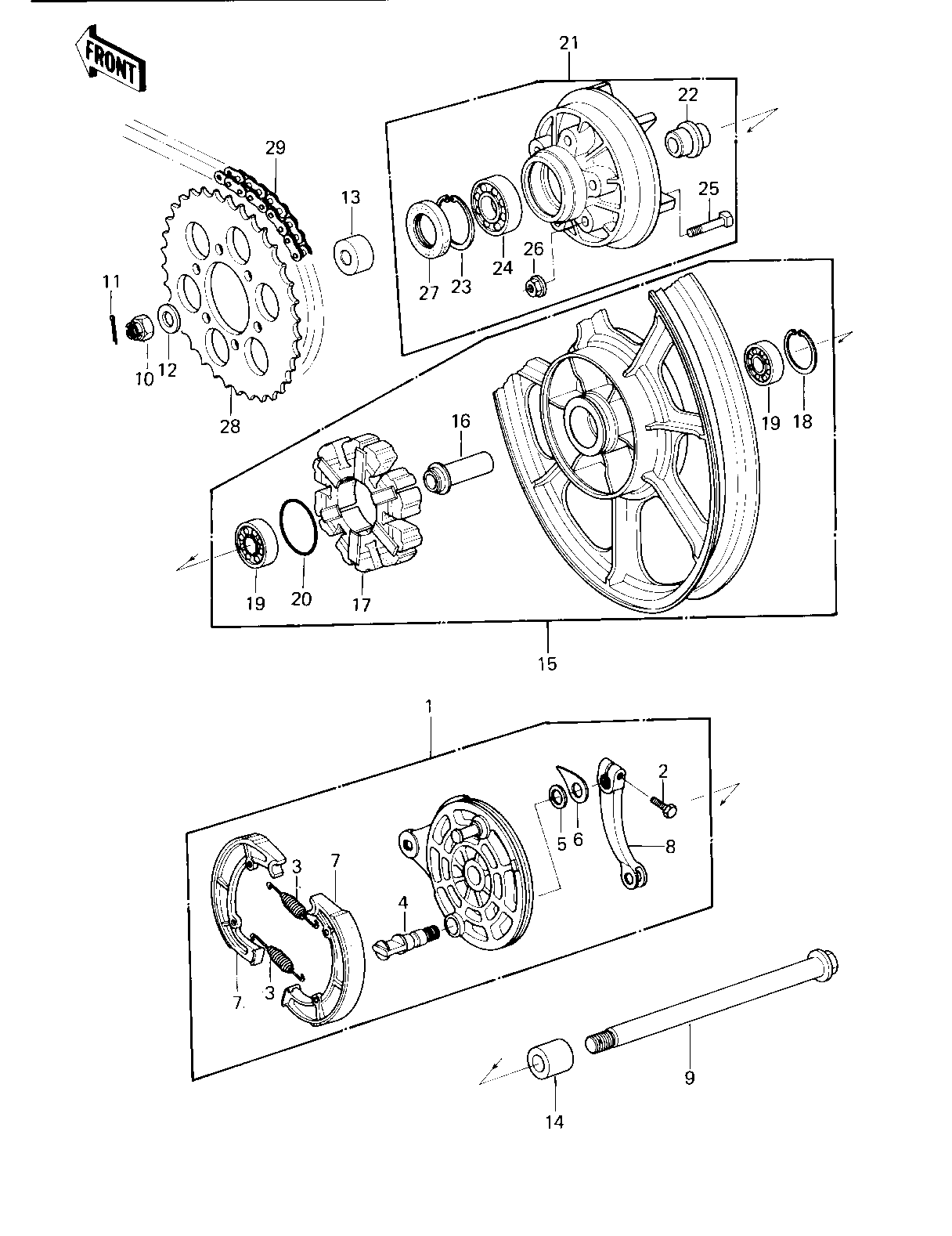

1980 LTD II - REAR WHEEL/HUB/BRAKE/CHAIN
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PANEL-ASY,RR BRK | 1 | 41035-1026 | 1 | ||
| BOLT HEX HEAD 8X28 | 2 | 114G0828 | 1 | ||
| SPRING,BRAKE SHOE | 3 | 41049-012 | 1 | ||
| CAM SHAFT,BRAKE | 4 | 41050-017 | 1 | ||
| DUST SHIELD-BRAKE CA | 5 | 41051-003 | 1 | ||
| INDICATOR,BRAKE SHOE | 6 | 41085-004 | 1 | ||
| SHOE,BRAKE | 7 | 42019-012 | 1 | ||
| LEVER REAR BRAKE CAM | 8 | 42029-039 | 1 | ||
| AXLE,REAR | 9 | 41068-1027 | 1 | ||
| NUT CASTLE,18MM | 10 | 42045-018 | 1 | ||
| PIN-COTTER,4.0X35 | 11 | 550D4035 | 1 | ||
| WASHER,PLAIN,20MM | 12 | 92022-248 | 1 | ||
| COLLAR,REAR AXLE L.H | 13 | 92027-1211 | 1 | ||
| COLLAR,REAR AXLE,R.H | 14 | 92027-1212 | 1 | ||
| SOLID WHEEL ASSY,REA | 15 | 41073-1059 | 1 | ||
| COLLAR,RR HUB BEARIN | 16 | 42010-040 | 1 | ||
| SHOCK DAMPER | 17 | 42014-032 | 1 | ||
| RING,SNAP,56.2M/M | 18 | 92033-1043 | 1 | ||
| BEARING,BALL,#6304ZZ | 19 | 601B6304ZZ | 2 | ||
| "0" RING,60MM | 20 | 671B2560 | 1 | ||
| COUPLING ASSY,REAR | 21 | 42033-1012 | 1 | ||
| SLEEVE,REAR COUPLING | 22 | 42036-1027 | 1 | ||
| CIRCLIP,62M/M | 23 | 92033-1044 | 1 | ||
| BALL BEARING,#6206 | 24 | 601B6206 | 1 | ||
| BOLT | 25 | 92001-161 | 6 | ||
| NUT,10MM | 26 | 92015-1415 | 6 | ||
| OIL SEAL | 27 | 92050-027 | 1 | ||
| SPROCKET,REAR,38T | 28 | 42041-1054 | 1 | ||
| CHAIN,530X106 SH-D | 29 | 92057-1044 | 1 |
