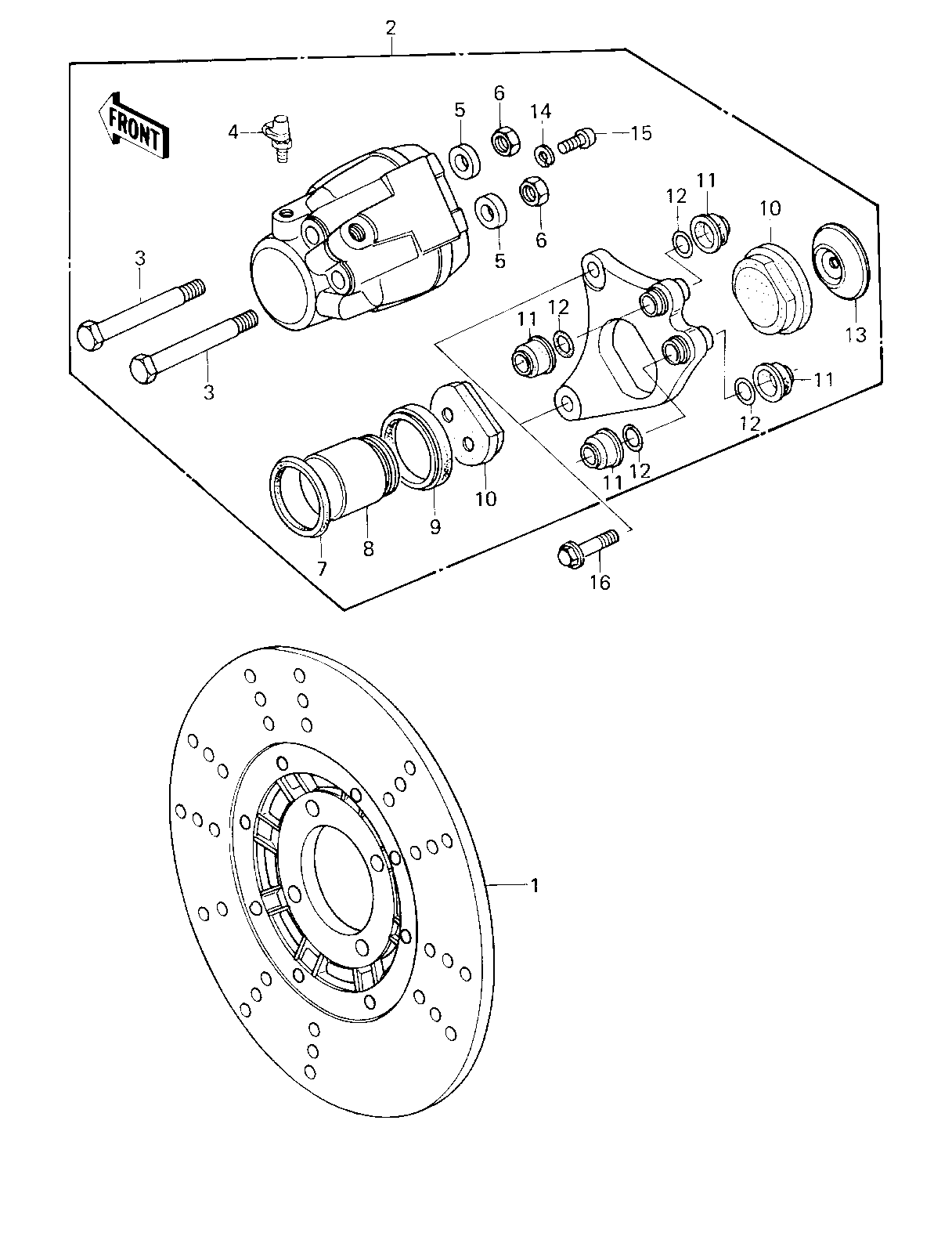

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DISC PLATE,FRONT BRA | 1 | 41080-1022 | 1 | ||
| CALIPER ASSY,L.H, | 2 | 43041-1024 | 1 | BLUE MARK | |
| BOLT | 3 | 43045-006 | 2 | ||
| BLEEDER SET | 4 | 43085-001 | 1 | ||
| PLUG | 5 | 43088-002 | 2 | ||
| NUT 10MM | 6 | 315B1000 | 2 | ||
| RING,PISTON SEAL | 7 | 43049-002 | 1 | ||
| PISTON,BRAKE,42M/M | 8 | 43020-1012 | 1 | ||
| DUST SEALD,RUBBER | 9 | 43054-003 | 1 | ||
| PAD SET | 10 | 43082-1001 | 1 | ||
| DUST SHILD,SHAFT | 11 | 43052-005 | 4 | ||
| "0" RING | 12 | 43053-006 | 4 | ||
| SPACER | 13 | 43040-004 | 1 | ||
| WASHER SPRING 6MM | 14 | 461F0600 | 1 | ||
| SCREW PAN HEAD 6X12 | 15 | 220B0612 | 1 | ||
| BOLT,HEX HEAD,10X38 | 16 | 92001-1293 | 2 |
| DISC PLATE,FRONT BRA | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CALIPER ASSY,L.H, | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | BLUE MARK |
| BOLT | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BLEEDER SET | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT 10MM | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING,PISTON SEAL | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON,BRAKE,42M/M | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUST SEALD,RUBBER | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD SET | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUST SHILD,SHAFT | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| "0" RING | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SPACER | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X12 | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,10X38 | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
