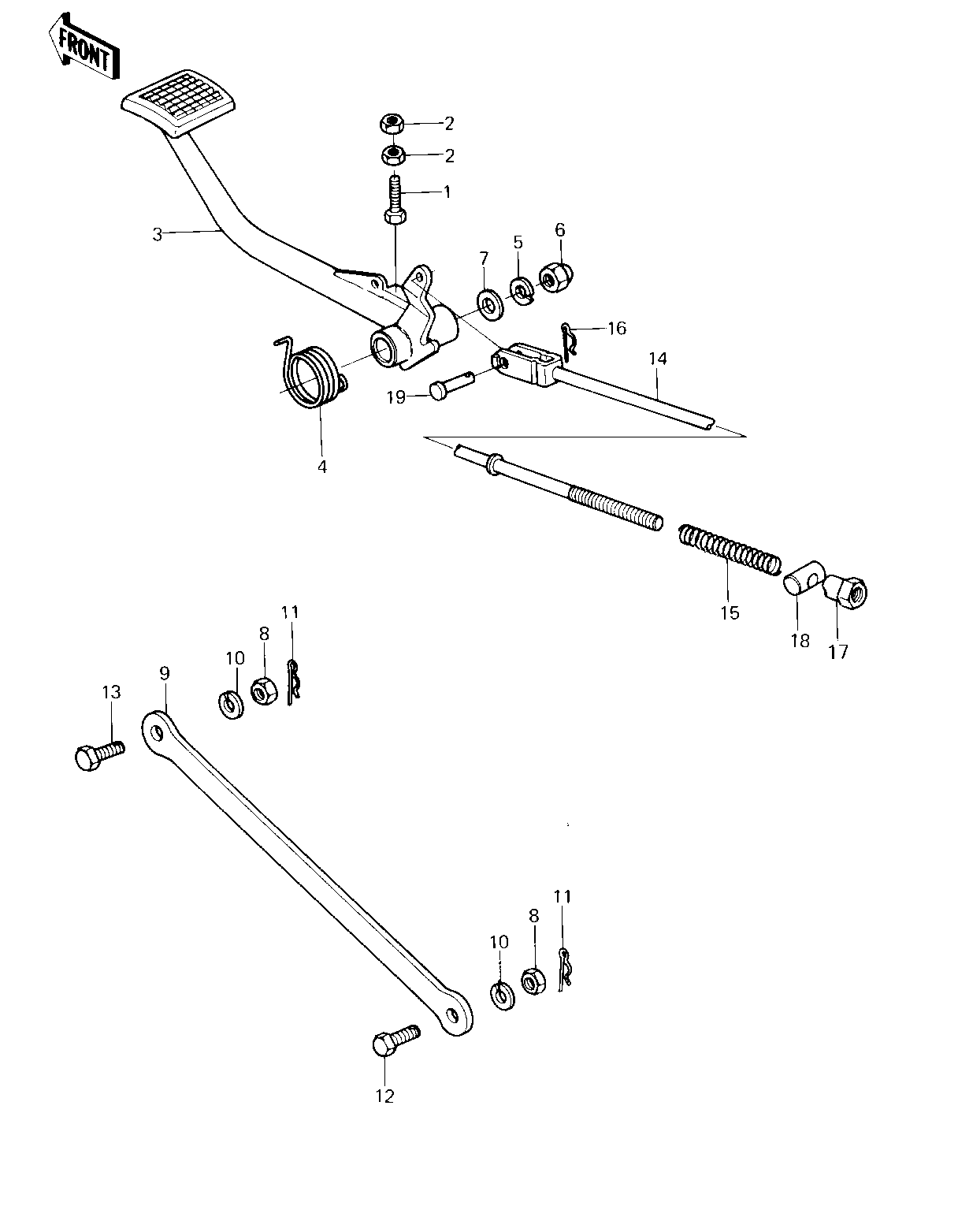

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET,6X20 | 1 | 112G0620 | 1 | ||
| NUT 6MM | 2 | 311B0600 | 2 | ||
| PEDAL,BRAKE | 3 | 43001-1038 | 1 | ||
| SPRING,BK PEDAL RETN | 4 | 43005-036 | 1 | ||
| WASHER SPRING 8MM | 5 | 461F0800 | 1 | ||
| NUT,CAP AND LOCK,8MM | 6 | 92019-013 | 1 | ||
| WASHER,8.5X20X1.6 | 7 | 92022-1561 | 2 | ||
| NUT,10MM | 8 | 314B1000 | 2 | ||
| TORQUE ROD | 9 | 43007-1016 | 1 | ||
| WASHER SPRING 10MM | 10 | 461F1000 | 2 | ||
| PIN,SNAP | 11 | 554A0800 | 2 | ||
| BOLT-HEX HEAD,10X40 | 12 | 92003-097 | 1 | ||
| BOLT TORQUE LINK FIT | 13 | 92003-103 | 1 | ||
| ROD,BRAKE | 14 | 43011-1016 | 1 | ||
| SPRING,BRAKE ROD | 15 | 43012-001 | 1 | ||
| PIN,SNAP | 16 | 554A0600 | 1 | ||
| NUT-BRAKE ROD ADJUST | 17 | 92015-042 | 1 | ||
| PIN-BRAKE ROD | 18 | 92043-065 | 1 | ||
| PIN,BRAKE ROD FITTIN | 19 | 92043-090 | 1 |
