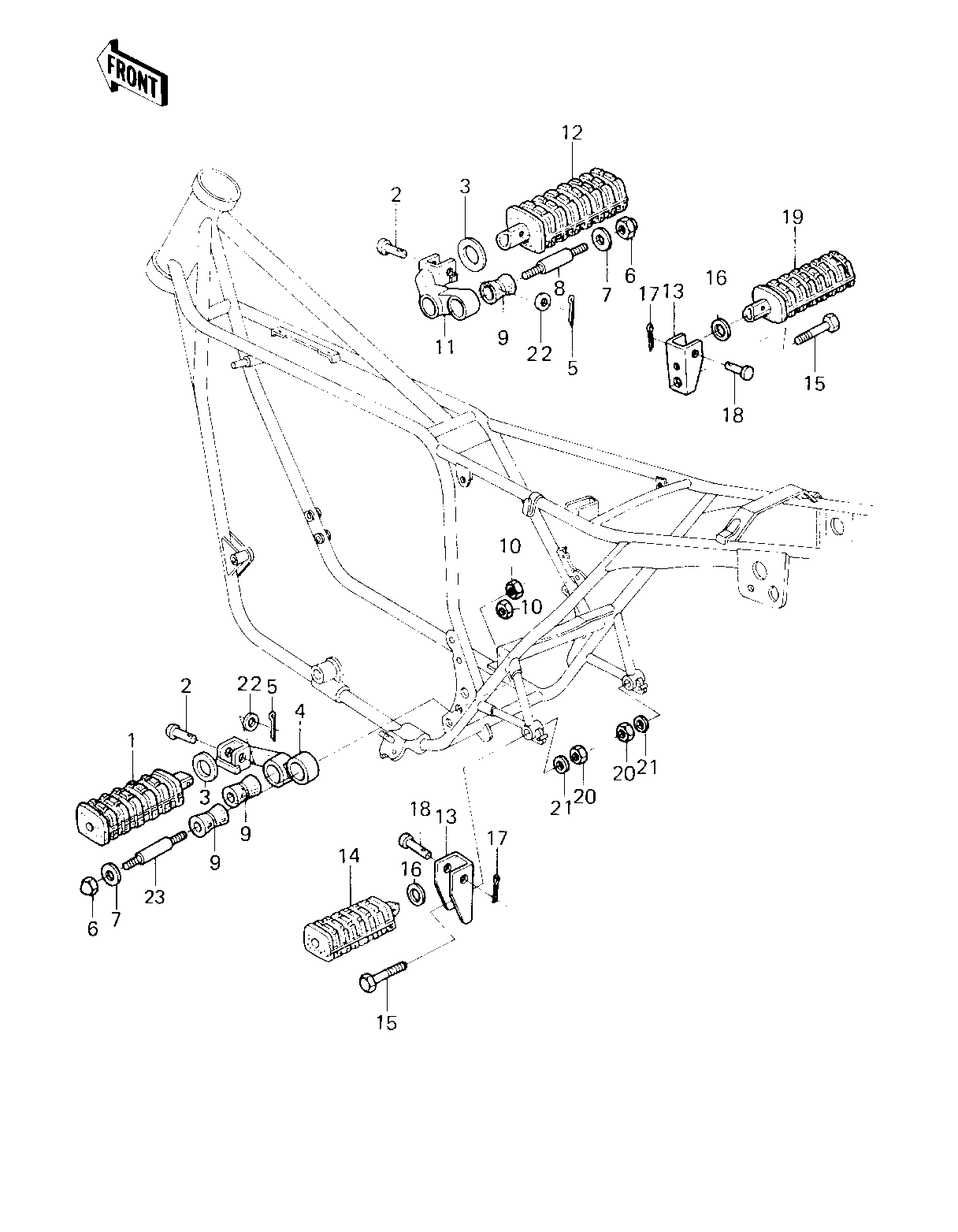

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| STEP-ASSY,FR,RH | 1 | 34028-1018 | 1 | ||
| PIN,FOOTREST BAR FIT | 2 | 92043-115 | 2 | ||
| WASHER,PLAIN | 3 | 92022-250 | 2 | ||
| HOLDER,FRONT STEP L | 4 | 34003-1047 | 1 | ||
| PIN COTTER 2.5X16 | 5 | 550D2516 | 2 | ||
| NUT,CAP AND LOCK,8MM | 6 | 92019-013 | 4 | ||
| CAP,FOOTRESTBAR | 7 | 92102-010 | 4 | ||
| STUD,FOOTREST BAR FI | 8 | 92004-048 | 2 | ||
| DAMPER RUBBER,FOOTRE | 9 | 92075-293 | 4 | ||
| NUT 10MM | 10 | 315B1000 | 4 | ||
| HOLDER,FRONT STEP R. | 11 | 34003-1048 | 1 | ||
| STEP-ASSY,FR,RH | 12 | 34028-1018 | 1 | ||
| BRACKET,STEP | 13 | 32054-1021 | 2 | ||
| STEP,FOOTREST,REAR,L | 14 | 34028-1009 | 1 | ||
| BOLT,HEX HEAD,10X60 | 15 | 113B1060 | 2 | ||
| WASHER-PLAIN | 16 | 92022-181 | 2 | ||
| PIN,COTTER,2.0X12 | 17 | 550D2012 | 2 | ||
| PIN | 18 | 92043-1464 | 2 | ||
| STEP,FOOTREST,REAR,R | 19 | 34028-1010 | 1 | ||
| NUT,LOCK,10MM | 20 | 92019-021 | 2 | ||
| WASHER PLAIN 10MM | 21 | 411B1000 | 2 | ||
| WASHER,PLAIN | 22 | 92022-1028 | 2 | ||
| STUD | 23 | 92004-067 | 2 |
