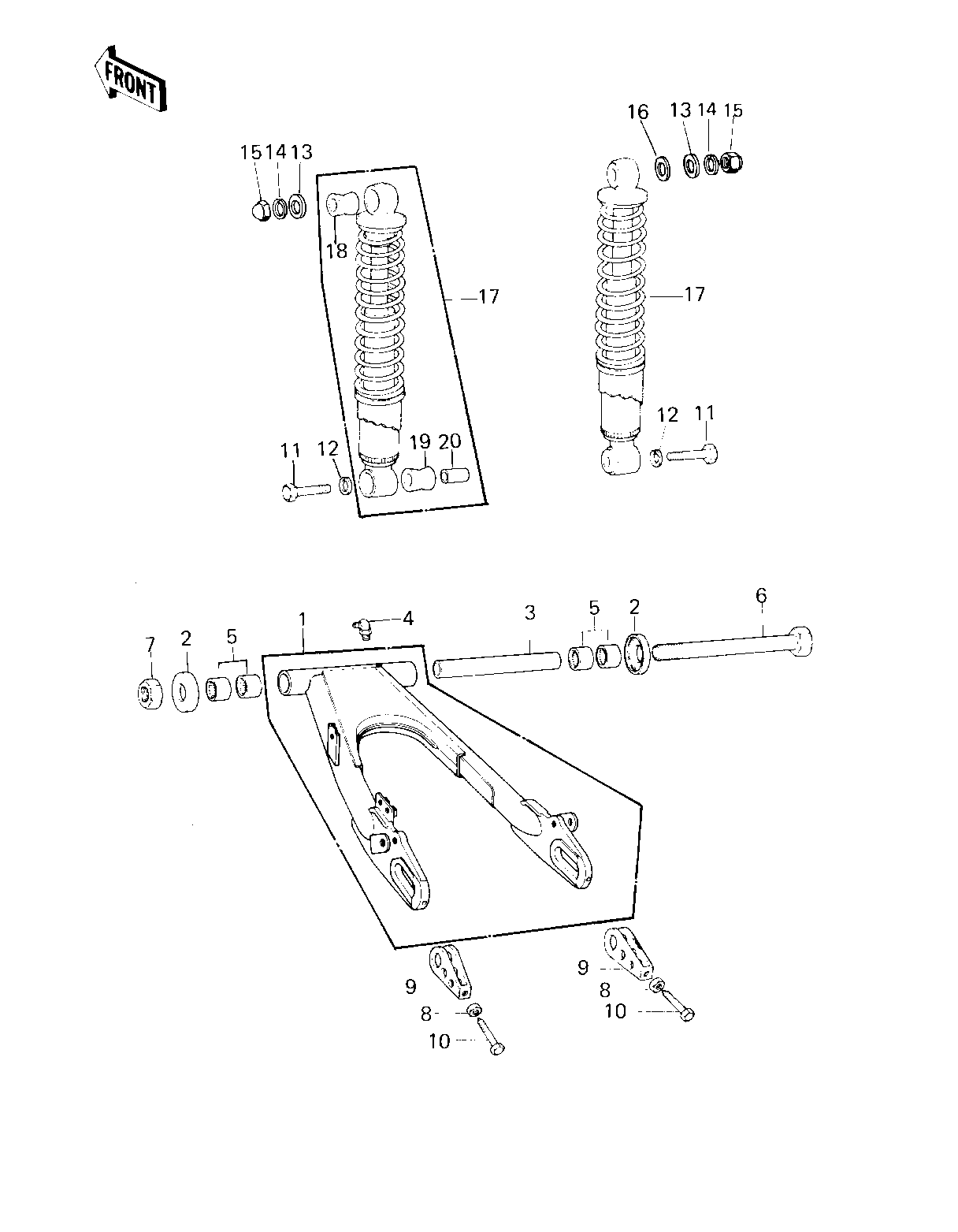

1980 LTD II - SWING ARM/SHOCK ABSORBERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWING ARM 1 33001-1040 1
CAP,SWING ARM 2 33035-009 2
SLEEVE,SWING ARM 3 42036-1014 1
GREASE NIPPLE 4 92005-002 1
BEARING-NEEDLE,HK221 5 92046-1115 4
SHAFT,SWING ARM PIVO 6 33032-047 1
NUT-SELF LOCKING 7 92019-012 1
NUT 10MM 8 315B1000 2
ADJUSTER,CHAIN 9 33040-066 2
BOLT-CHN ADJUST 10MM 10 92001-143 2
BOLT HEX HEAD 10X35 11 113N1035 2
WASHER SPRING 10MM 12 461F1000 2
WASHER PLAIN 10MM 13 411B1000 2
WASHER SPRING 10MM 14 461F1000 2
NUT SHOCK ABSORBER 15 92020-003 2
WASHER,PLAIN 16 92022-1022 1
SHOCK ABSBR RR 17 45014-1042 2
BUSHING,SHCK ABS RUB 18 45017-015 2
BUSHING, SHCK ABS RU 19 45017-012 2
BUSHING,SHOCK ABSORB 20 45016-008 2
