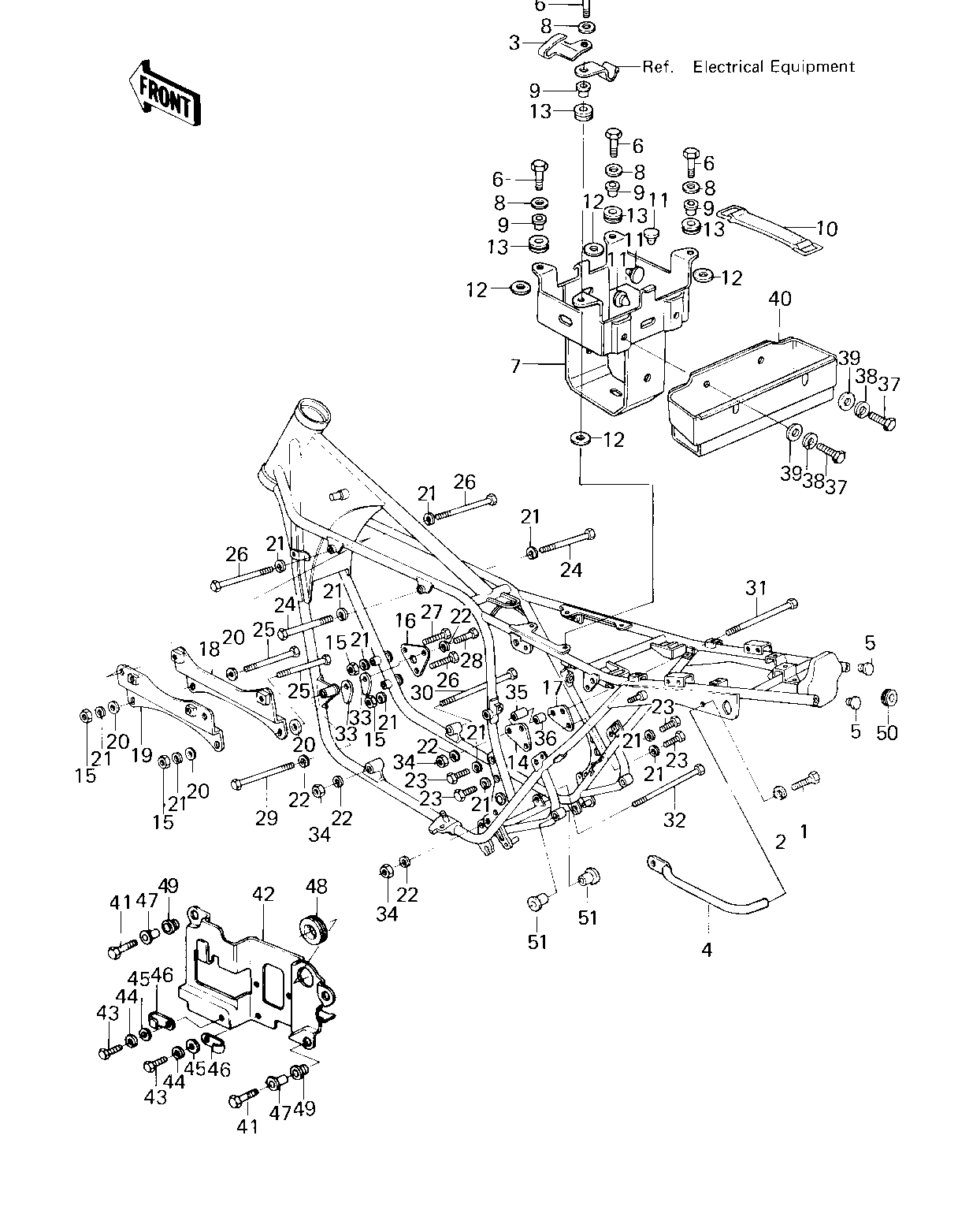

1980 LTD II - FRAME FITTINGS/BATTERY CASE

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SMALL-UPSET,8X1 1 115G0816 1
WASHER SPRING 8MM 2 461F0800 1
HOOK,HELMET 3 27012-1009 1
GRIP-FRAME 4 32109-1011 1
PLUG,FRAME RUBBER 5 32112-008 2
BOLT-UPSET 6 112G0625 4
CASE,BATTERY 7 32097-1006 1
WASHER 6.5X20X1.6T 8 92022-125 4
COLLAR 9 92027-194 4
BAND,BATTERY 10 92072-071 1
DAMPER RUBBER 11 92075-078 3
DAMPER RUBBER 12 92075-166 4
DAMPER RUBBER 13 92075-277 4
PLATE,REAR ENG MOUNT 14 13169-1048 1
NUT,8MM 15 311B0800 4
PLATE,ENG FIT,FRONT 16 32030-047 1
PLATE,ENG FIT,RR R.H 17 32030-049 1
PLATE,ENG HEAD FITT 18 32030-070 1
PLATE,ENG FITTING,R. 19 32030-071 1
WASHER PLAIN 8MM 20 411B0800 4
WASHER SPRING 8MM 21 461F0800 12
WASHER SPRING 10MM 22 461F1000 5
BOLT,FLANGED,8X35 23 92001-1577 4
BOLT,10X45 24 92001-1182 2
BOLT FLANGED 8X55 25 92001-1398 2
BOLT,HEX HEAD,8X59 26 110G0859 3
BOLT FLANGED,8X70 27 92001-1583 1
BOLT,HEX HEAD,10X50 28 92001-1254 1
BOLT,FLANGED,10X70 29 92001-1618 1
BOLT,FLANGED,10X325 30 92001-1654 1
BOLT 31 92003-185 1
BOLT 32 92003-186 1
NUT 33 92016-055 2
NUT,LOCK,10MM 34 92019-021 3
COLLAR 35 92027-245 1 L = 47 M/M
COLLAR 36 92027-246 1 L = 31 M/M
BOLT-UPSET,6X12 37 112G0612 2
WASHER SPRING 6MM 38 461F0600 2
WASHER PLAIN 6MM 39 411B0600 2
CASE,TOOL 40 32098-026 1
BOLT-UPSET,6X20 41 112G0620 3
BRACKET,ELECTRO BASE 42 11034-1104 1
BOLT-UPSET,6X12 43 112G0612 2
WASHER SPRING 6MM 44 461F0600 2
WASHER PLAIN 6MM 45 410B0600 2
CLAMP,WIRING HARNESS 46 21126-008 2
COLLAR 47 92027-194 3
GROMMET 48 92071-092 1
DAMPER RUBBER 49 92075-277 3
GROMMET 50 92071-059 1
BUSHING,MUFFLER FITT 51 92092-010 4
