Parts Diagrams |

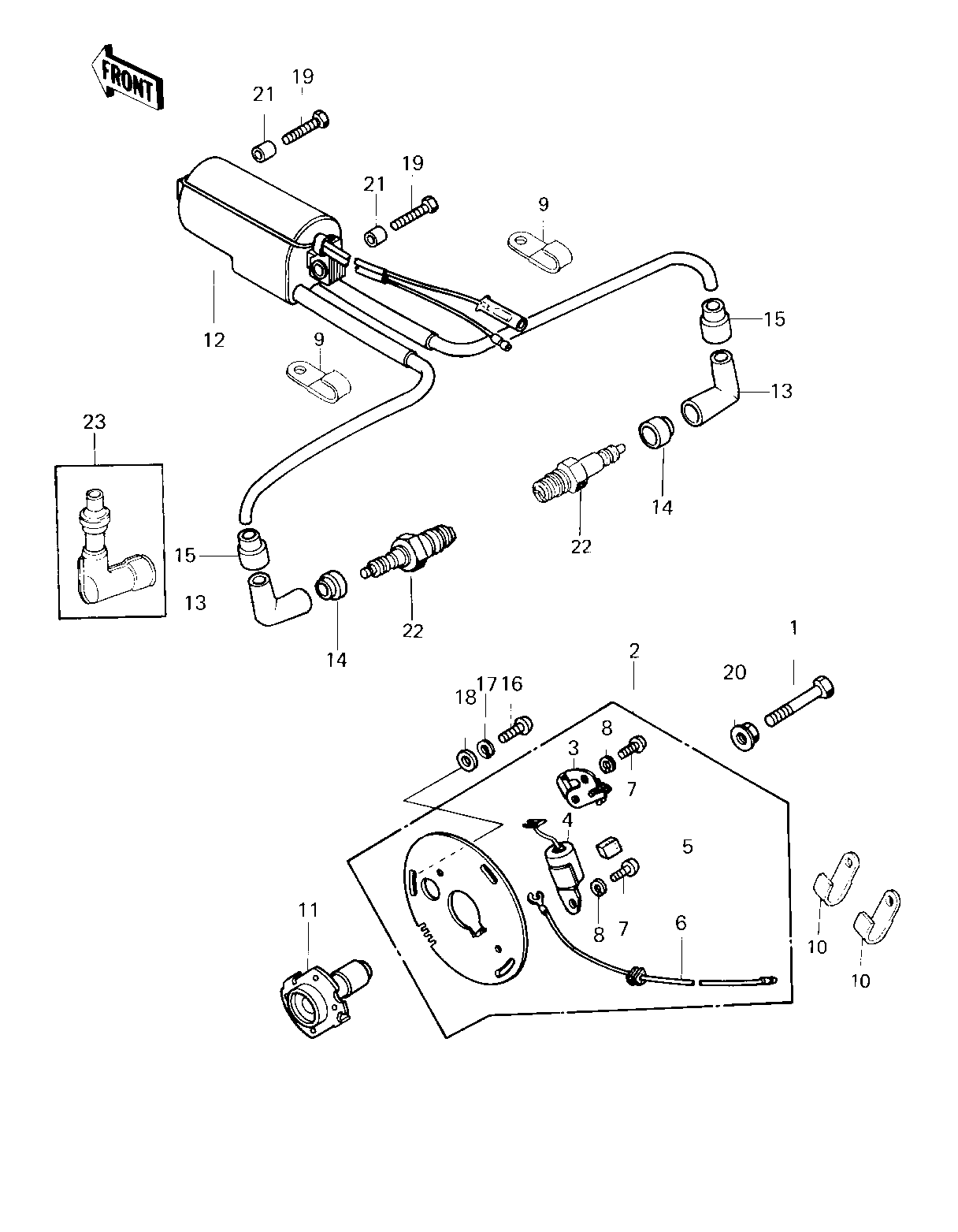

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-8X63 | 1 | 92001-1397 | 1 | ||
| BREAKER ASSY,CONTACT | 2 | 21008-1013 | 1 | ||
| BREAKER,CONTACT | 3 | 21008-027 | 1 | ||
| CONDENSER | 4 | 21013-1002 | 1 | ||
| FELT OIL | 5 | 21019-005 | 1 | ||
| WIRING HARNESS,BRAKE | 6 | 26001-1040 | 1 | ||
| SCREW PAN HEAD 4X6 | 7 | 220B0406 | 2 | ||
| WASHER SPRING 4MM | 8 | 461F0400 | 2 | ||
| CLAMP,WIRING HARNESS | 9 | 21126-008 | 2 | ||
| CLAMP,WIRING HARNESS | 10 | 21126-008 | 2 | ||
| ADVANCER,AUTO TIMING | 11 | 21148-1004 | 1 | ||
| COIL-IGNITION | 12 | 21121-1174 | 1 | ||
| CAP-SPARK PLUG,RTFM2 | 13 | 21130-1007 | 2 | ||
| GROMMET-PLUG CAP,A | 14 | 21131-004 | 2 | ||
| GROMMET,SPARK PLG CA | 15 | 21132-005 | 2 | ||
| SCREW PAN HEAD 5X12 | 16 | 220B0512 | 3 | ||
| WASHER SPRING 5MM | 17 | 461F0500 | 3 | ||
| WASHER PLAIN 5MM | 18 | 410B0500 | 3 | ||
| BOLT, IGNITION COIL | 19 | 92003-170 | 2 | ||
| WASHER,SPARK ADVANCE | 20 | 92022-244 | 1 | ||
| COLLAR,IGNITION COIL | 21 | 92027-276 | 2 | ||
| SPARK PLUG B6ES | 22 | B6ES | 2 | ||
| CAP,SPARK PLUG | 23 | 21160-005 | 2 | USE FOR CANADIAN MARK |
| BOLT-8X63 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BREAKER ASSY,CONTACT | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BREAKER,CONTACT | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CONDENSER | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FELT OIL | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRING HARNESS,BRAKE | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 4X6 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 4MM | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,WIRING HARNESS | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,WIRING HARNESS | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| ADVANCER,AUTO TIMING | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COIL-IGNITION | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-SPARK PLUG,RTFM2 | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GROMMET-PLUG CAP,A | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GROMMET,SPARK PLG CA | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 5X12 | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 5MM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 5MM | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT, IGNITION COIL | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,SPARK ADVANCE | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,IGNITION COIL | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPARK PLUG B6ES | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAP,SPARK PLUG | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | USE FOR CANADIAN MARK |
