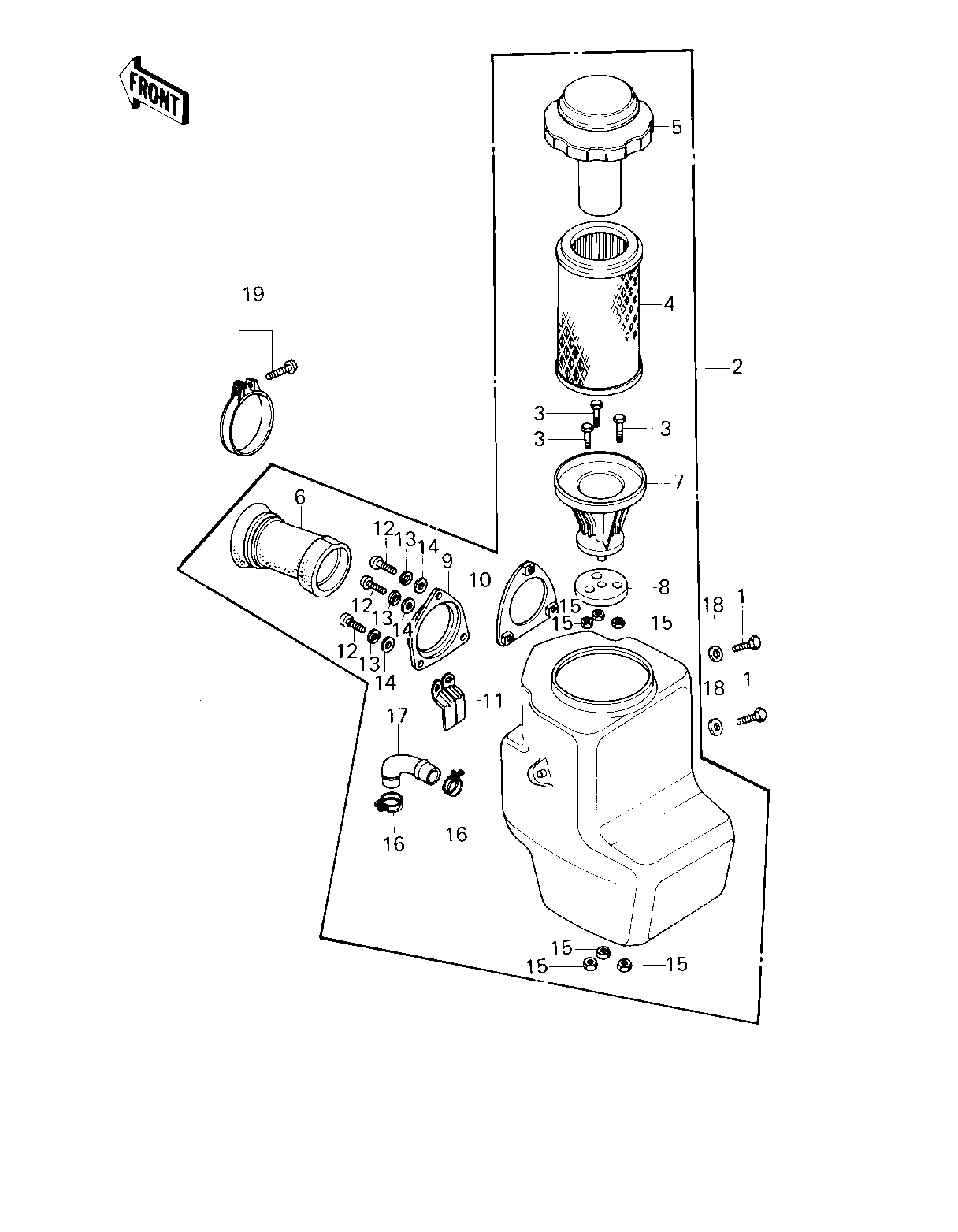

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET,6X16 | 1 | 112G0616 | 2 | ||
| AIR CLEANER ASSY | 2 | 11010-109 | 1 | ||
| BOLT-UPSET,6X20 | 3 | 112G0620 | 3 | ||
| ELEMENT,AIR CLNR | 4 | 11013-051 | 1 | ||
| PIPE,INLET | 5 | 11015-049 | 1 | ||
| CONNECTOR | 6 | 11026-018 | 2 | ||
| HOLDER | 7 | 11033-004 | 1 | ||
| GASKET | 8 | 11039-001 | 1 | ||
| PLATE,INLET PIPE | 9 | 11040-004 | 2 | ||
| PLATE,INLET PIPE | 10 | 11040-005 | 2 | ||
| PLATE,AIR CLNR BODY | 11 | 11040-006 | 1 | ||
| SCREW PAN HEAD 4X16 | 12 | 220B0416 | 6 | ||
| WASHER SPRING 4MM | 13 | 461F0400 | 6 | ||
| WASHER PLAIN 4MM | 14 | 410B0400 | 6 | ||
| NUT 6MM | 15 | 311B0600 | 6 | ||
| CLAMP,BREATHER HOSE | 16 | 92037-192 | 2 | ||
| TUBE | 17 | 92059-121 | 1 | ||
| WASHER 6.5X20X1.6T | 18 | 92022-125 | 2 | ||
| CLAMP | 19 | 92037-171 | 2 |
