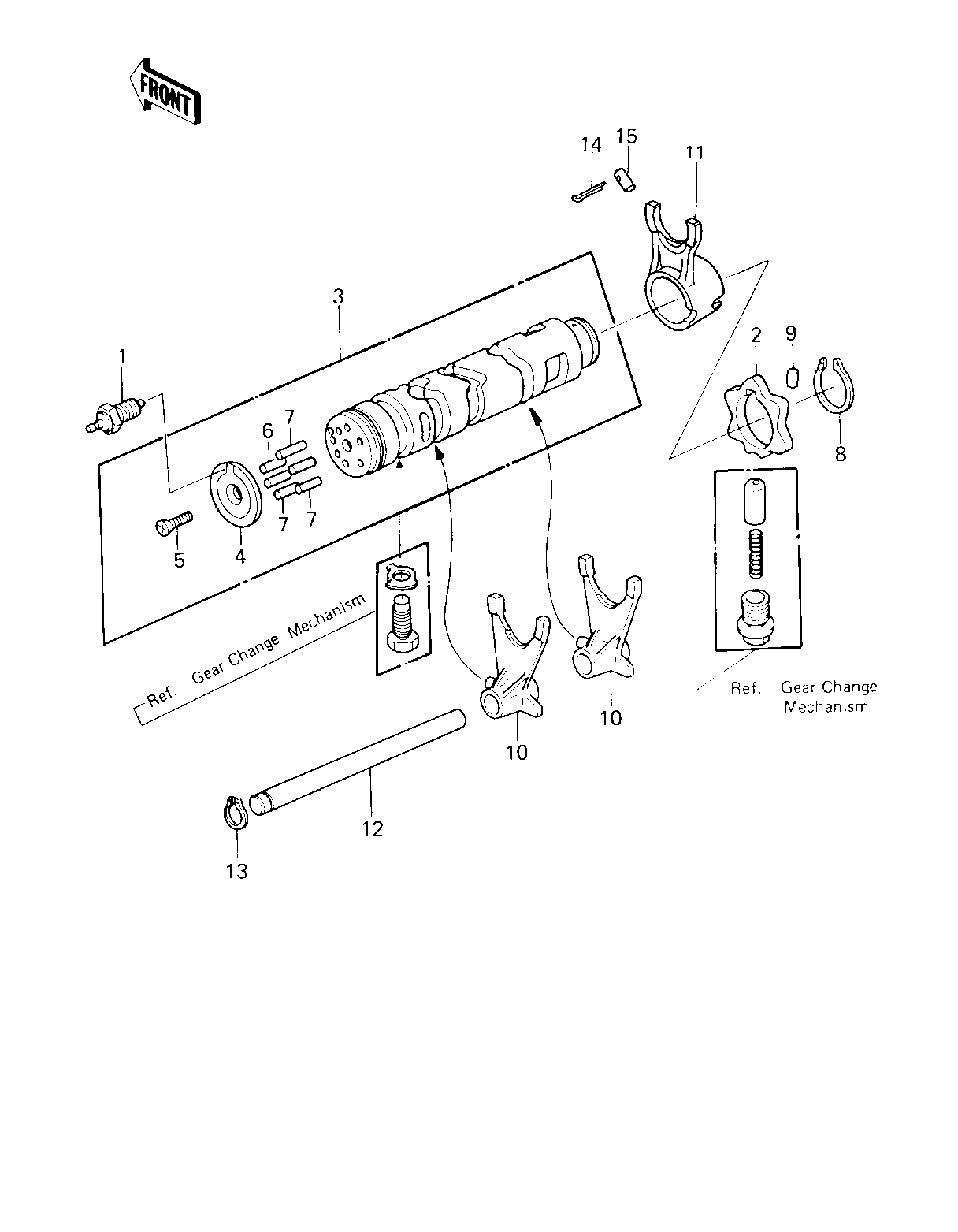

1980 LTD II - GEAR CHANGE DRUM & FORKS
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SWITCH,NEUTRAL | 1 | 13151-5002 | 1 | ||
| CAM-CHANGE DRUM | 2 | 13145-1058 | 1 | ||
| DRUM ASSY,GEAR SHIFT | 3 | 13239-1017 | 1 | ||
| HOLDER,CHANGE DRUM P | 4 | 13091-1104 | 1 | ||
| SCREW CNTSNK HD 6X20 | 5 | 221B0620 | 1 | ||
| PIN GEAR CHANGE DRUM | 6 | 92042-014 | 1 | ||
| PIN,GEAR CHNGE DRUM | 7 | 92042-030 | 5 | ||
| CIRCLIP,30MM | 8 | 480J3000 | 1 | ||
| PIN-DOWEL,4X6 | 9 | 610A0406 | 1 | ||
| SHIFT FORK,LOW,2&3RD | 10 | 13140-1008 | 2 | ||
| SHIFT FORK,4TH & TOP | 11 | 13140-1009 | 1 | ||
| ROD-SHIFT | 12 | 49047-5003 | 1 | ||
| CIRCLIP 12MM | 13 | 480J1200 | 1 | ||
| PIN COTTER 3.0X20 | 14 | 550D3020 | 1 | ||
| DOWEL PIN,8X18 | 15 | 92042-021 | 1 |
