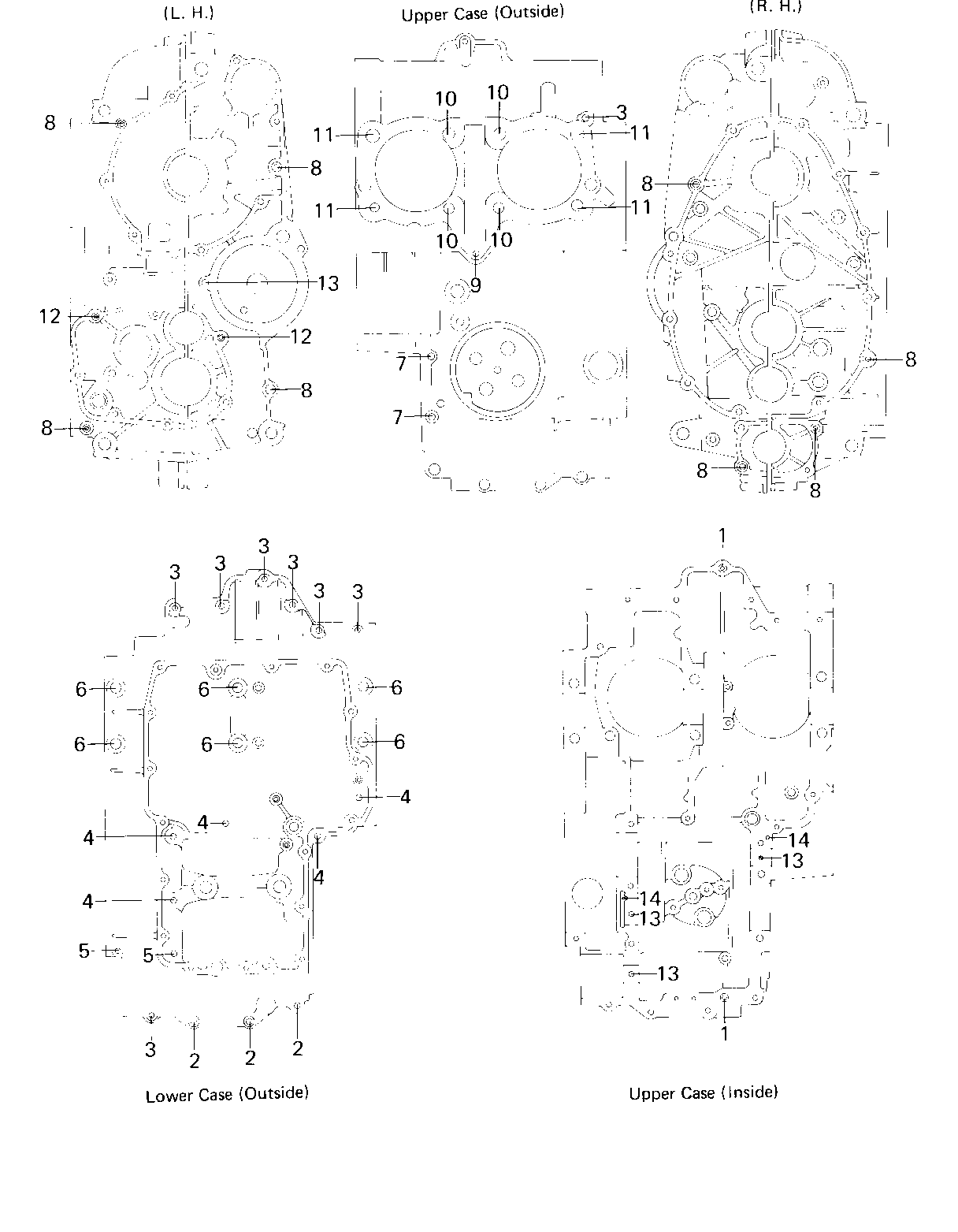

1980 LTD II - CRANKCASE BOLT & STUD PATTERN
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PIN,DOWEL,10X8.2X14 | 1 | 92043-1037 | 2 | ||
| BOLT,HEX HEAD,6X41 | 2 | 92003-109 | 3 | ||
| BOLT,HEX HEAD,6X54 | 3 | 92003-110 | 8 | ||
| BOLT-FLANGED,6X95 | 4 | 130G0695 | 5 | ||
| BOLT-FLANGED,6X70 | 5 | 130G0670 | 2 | ||
| BOLT,10X115 | 6 | 92003-187 | 6 | ||
| BOLT,6X105 | 7 | 92003-194 | 2 | ||
| PIN,DOWEL,10X8.2X14 | 8 | 92043-1037 | 8 | ||
| STUD | 9 | 92004-059 | 1 | PARTS ARE INCLUDED IN CRANKCAS | |
| STUD,10X190 | 10 | 92004-1002 | 4 | PARTS ARE INCLUDED IN CRANKCAS | |
| STUD,10X158 | 11 | 92004-1003 | 4 | PARTS ARE INCLUDED IN CRANKCAS | |
| PIN-DOWEL | 12 | 92042-007 | 2 | ||
| PIN DOWEL 6MM | 13 | 92042-016 | 4 | ||
| NOZZLE,OIL BIAS | 14 | 92062-011 | 2 | PARTS ARE INCLUDED IN CRANKCAS |
| PIN,DOWEL,10X8.2X14 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,6X41 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,6X54 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X95 | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X70 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X115 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X105 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,10X8.2X14 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| STUD | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | PARTS ARE INCLUDED IN CRANKCAS |
| STUD,10X190 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | PARTS ARE INCLUDED IN CRANKCAS |
| STUD,10X158 | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | PARTS ARE INCLUDED IN CRANKCAS |
| PIN-DOWEL | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN DOWEL 6MM | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NOZZLE,OIL BIAS | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | PARTS ARE INCLUDED IN CRANKCAS |
