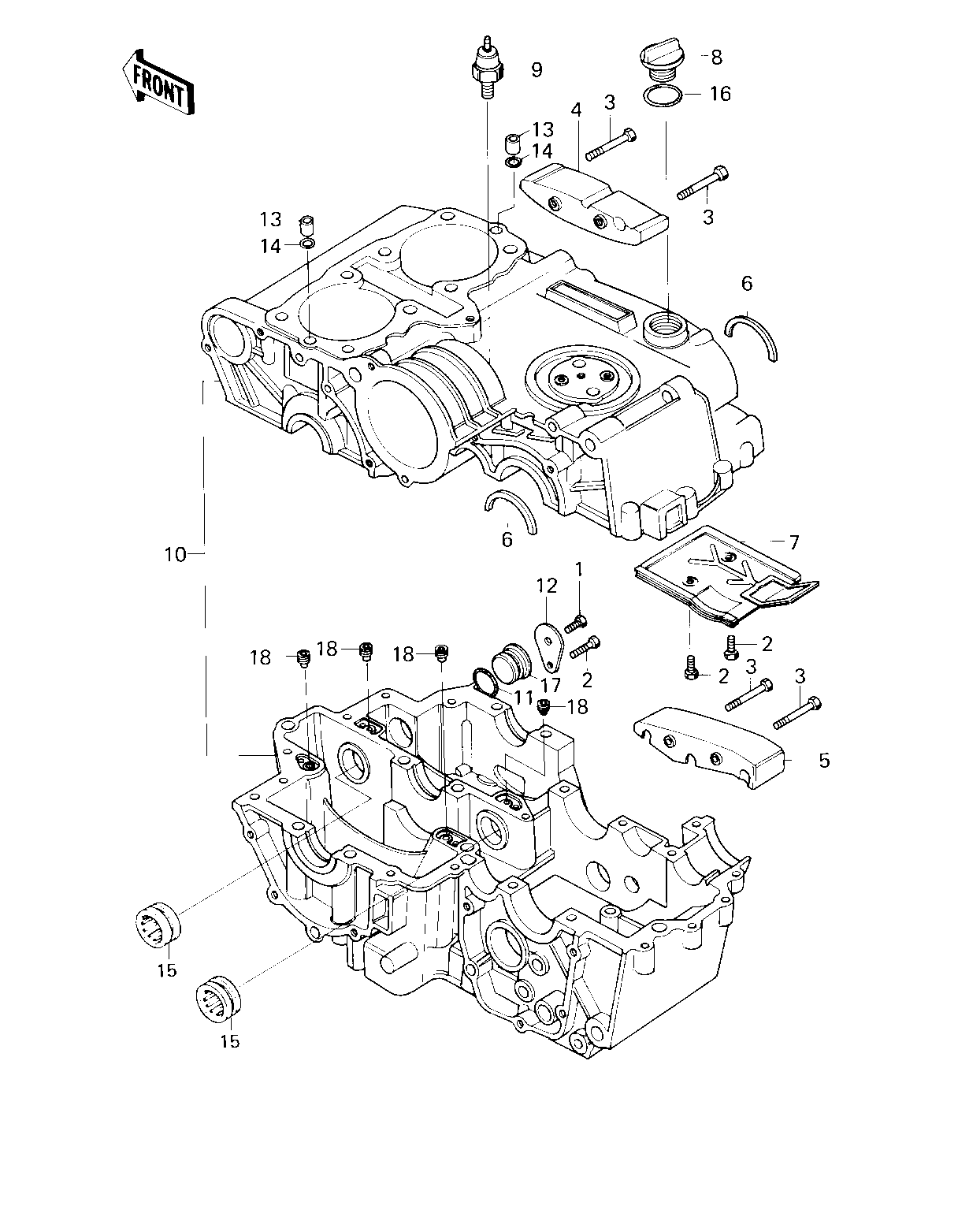

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT HEX HEAD 6X8 | 1 | 110B0608 | 1 | ||
| BOLT-UPSET 6X14 | 2 | 112B0614 | 3 | ||
| BOLT,FLANGED,8X35 | 3 | 92001-1577 | 4 | ||
| SLIPPER,PRIMARY CHAI | 4 | 12053-020 | 1 | ||
| SLIPPER,PRIMARY CHAI | 5 | 12053-021 | 1 | ||
| RING BEARING SETTING | 6 | 14013-004 | 2 | ||
| PLATE,BREATHER | 7 | 14068-008 | 1 | ||
| PLUG,OIL FILLER | 8 | 16115-013 | 1 | ||
| SWITCH,OIL PRESSURE | 9 | 27010-1157 | 1 | ||
| SET-CRANKCASE | 10 | 14001-5092 | 1 | ||
| "0" RING | 11 | 670B3030 | 1 | ||
| SPACER | 12 | 92026-115 | 1 | ||
| PIN,11X14X12.3 | 13 | 92043-1266 | 2 | ||
| "O" RING | 14 | 92055-093 | 2 | ||
| BEARING,NEEDLE | 15 | 92046-048 | 4 | ||
| "0" RING,31MM | 16 | 92055-049 | 1 | ||
| PLUG | 17 | 92066-049 | 1 | ||
| SCREW,SLOTTED | 18 | 92013-007 | 4 |
