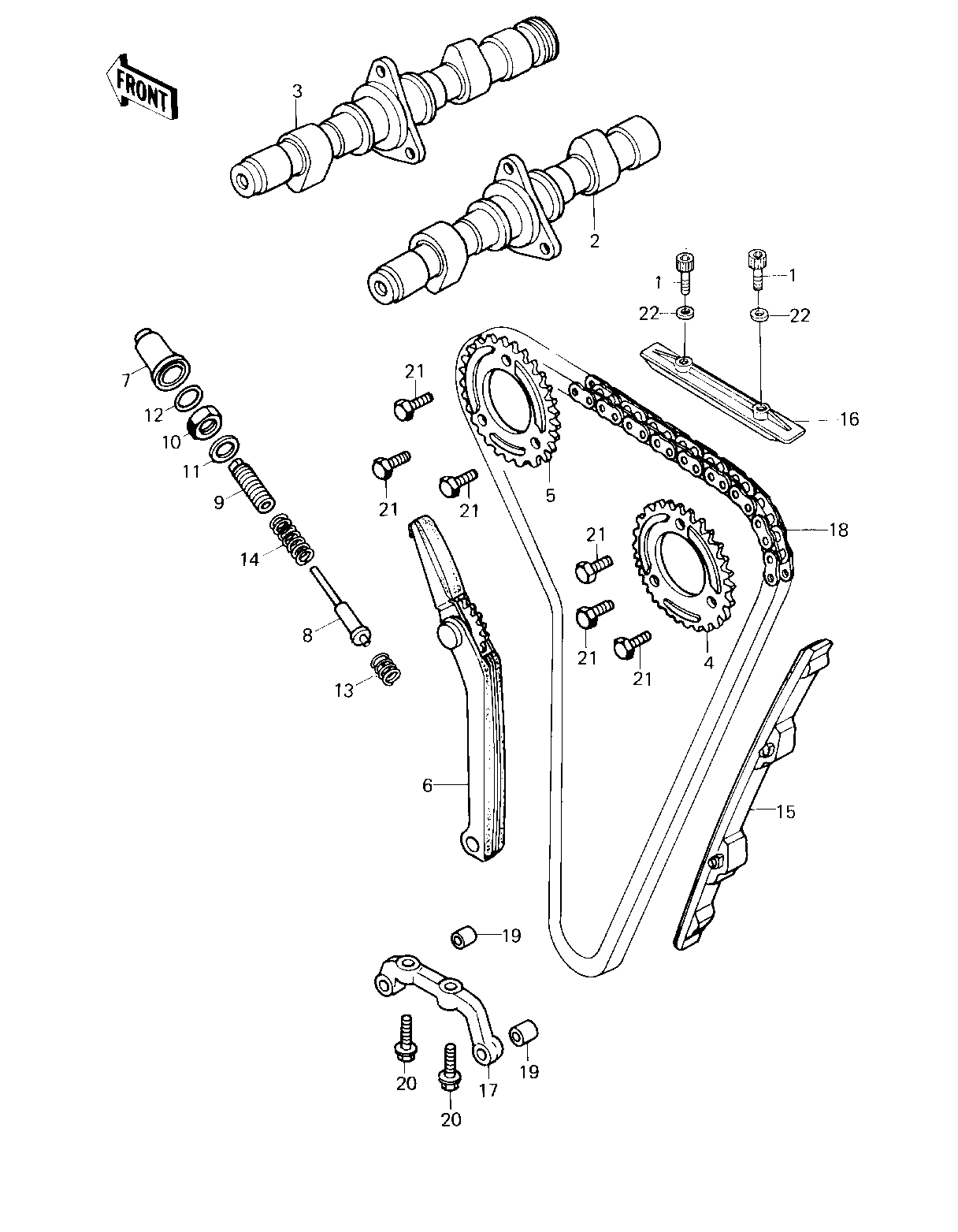

1980 LTD II - CAMSHAFTS/CHAIN/TENSIONER
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT,6X14 | 1 | 120P0614 | 2 | ||
| CAM SHAFT,INLET | 2 | 12044-010 | 1 | ||
| CAMSHAFT,EXHAUST | 3 | 12044-020 | 1 | ||
| SPROCKET,CAM SFT,IN | 4 | 12046-006 | 1 | ||
| SPROCKET,CAM SFT,EXH | 5 | 12046-007 | 1 | ||
| TENSIONER ASSY,CAM | 6 | 12048-005 | 1 | ||
| CAP,CHN TENSIONER | 7 | 12064-003 | 1 | ||
| ROD,PUSH | 8 | 13116-1001 | 1 | ||
| BOLT,PUSH ROD | 9 | 92001-1009 | 1 | ||
| NUT 18MM | 10 | 92015-019 | 1 | ||
| WASHER,PLAIN | 11 | 92022-320 | 1 | ||
| "O" RING | 12 | 92055-095 | 1 | ||
| SPRING,PUSH ROD | 13 | 92081-1007 | 1 | ||
| SPRING | 14 | 92081-1008 | 1 | ||
| SLIPPER,CAM CHAIN | 15 | 12053-015 | 1 | ||
| SLIPPER,CAM CHAIN | 16 | 12053-016 | 1 | ||
| HOLDER | 17 | 14018-006 | 1 | ||
| CHAIN,CAM | 18 | 21070-011 | 1 | ||
| PIN,DOWEL,10X32 | 19 | 551A1032 | 2 | ||
| BOLT | 20 | 92003-202 | 2 | ||
| BOLT,SPROCKET FITTIN | 21 | 92003-208 | 6 | ||
| GASKET,FUEL COCK | 22 | 92065-096 | 2 |
