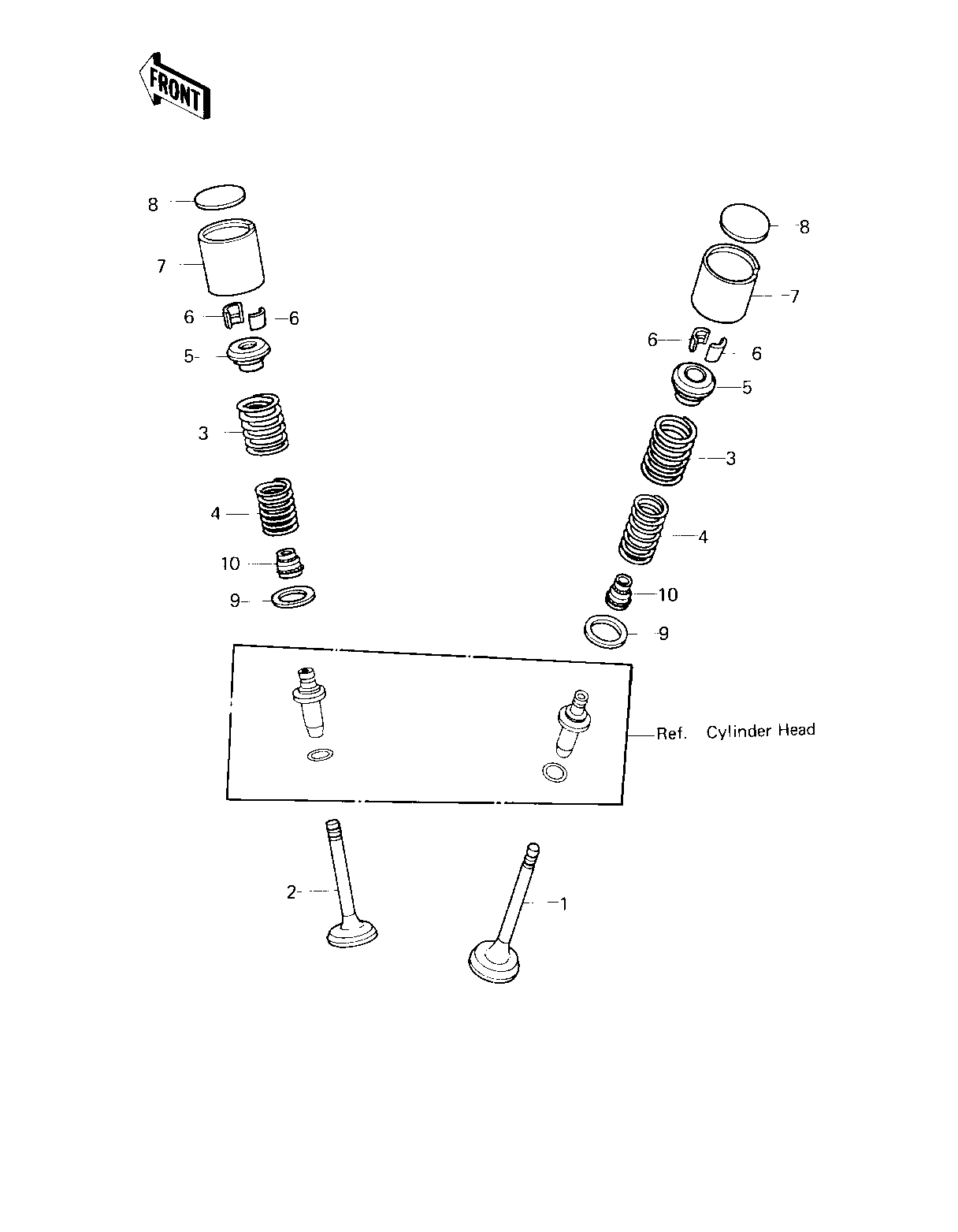

1980 LTD II - VALVES

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE,INLET 1 12004-014 2
VALVE,EXHAUST 2 12005-007 2
SPRING,OUTER VALVE 3 12007-015 4
SPRING,INNER VALVE 4 12007-016 4
RETAINER,VALVE SPRIN 5 12009-007 4
COLLAR,VALVE SPRING 6 12011-003 8
TAPPET 7 12032-006 4
SHIM,2.20T 8 12037-051 AR
SHIM,2.25T 8 12037-052 AR
SHIM,2.30T 8 12037-053 AR
SHIM,2.35T 8 12037-054 AR
SHIM,2.40T 8 12037-055 AR
SHIM,2.45T 8 12037-056 AR
SHIM,2.50T 8 12037-057 AR
SHIM,2.55T 8 12037-058 AR
SHIM,2.60T 8 12037-059 AR
SHIM,2.65T 8 12037-060 AR
SHIM,2.70T 8 12037-061 AR
SHIM,2.75T 8 12037-062 AR
SHIM,2.80T 8 12037-063 AR
SHIM,2.85T 8 12037-064 AR
SHIM,2.90T 8 12037-065 AR
SHIM,2.95T 8 12037-066 AR
SHIM,3.00T 8 12037-067 AR
SHIM,3.05T 8 12037-068 AR
SHIM,3.10T 8 12037-069 AR
SHIM,3.15T 8 12037-070 AR
SHIM,3.20T 8 12037-071 AR
SHIM,3.25T 8 12037-072 AR
SHIM,3.30T 8 12037-073 AR
SHIM,3.35T 8 12037-074 AR
SHIM,3.40T 8 12037-075 AR
WASHER,PLAIN 9 92022-309 4
OIL SEAL,VALVE 10 92049-017 4
