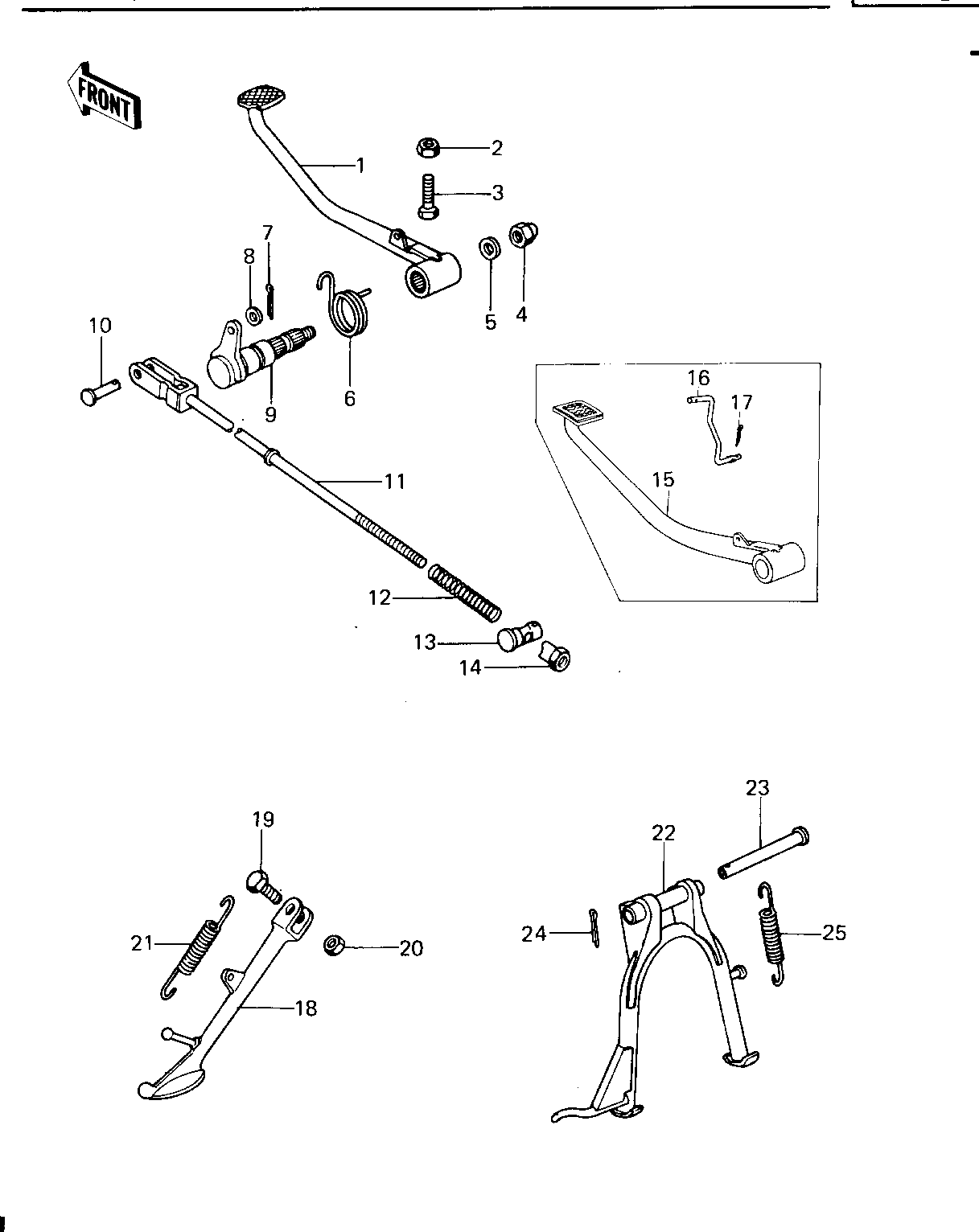

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PEDAL BRAKE | 1 | 43001-1009 | 1 | KZ650-B1/B2/B2A | |
| NUT 6MM | 2 | 311B0600 | 1 | ||
| BOLT-UPSET,6X20 | 3 | 112G0620 | 1 | ||
| NUT,CAP AND LOCK,8MM | 4 | 92019-013 | 1 | ||
| WASHER,8.5X20X1.6 | 5 | 92022-1561 | 1 | ||
| SPRING,BRAKE PEDAL | 6 | 43005-022 | 1 | ||
| PIN COTTER 2.0X15 | 7 | 550D2015 | 1 | ||
| WASHER PLAIN 6MM | 8 | 410B0600 | 1 | ||
| SHAFT,BRAKE PEDAL | 9 | 43004-012 | 1 | ||
| PIN-BRAKE ROD FITTING | 10 | 92043-064 | 1 | ||
| ROD-BRAKE | 11 | 43011-009 | 1 | ||
| SPRING,BRAKE ROD | 12 | 43012-001 | 1 | ||
| PIN-BRAKE ROD | 13 | 92043-065 | 1 | ||
| NUT-BRAKE ROD ADJUST | 14 | 92015-042 | 1 | ||
| PEDAL BRAKE | 15 | 43001-1009 | 1 | KZ650-B3 | |
| HOOK,BRAKE SWITCH | 16 | 27012-1003 | 1 | KZ650-B3 | |
| PIN COTTER 1.6X10 | 17 | 550D1610 | 1 | KZ650-B3 | |
| STAND-SIDE | 18 | 34024-1103 | 1 | ||
| BOLT-SIDE STAND | 19 | 92003-079 | 1 | ||
| NUT,10MM | 20 | 314B1000 | 1 | ||
| SPRING,SIDE STAND | 21 | 34025-005 | 1 | ||
| STAND-MAIN | 22 | 34011-1041 | 1 | ||
| SHAFT,MAIN STAND | 23 | 34019-015 | 1 | ||
| PIN COTTER 3.0X30 | 24 | 550D3030 | 1 | ||
| SPRING,MAIN STAND | 25 | 34023-016 | 1 |
