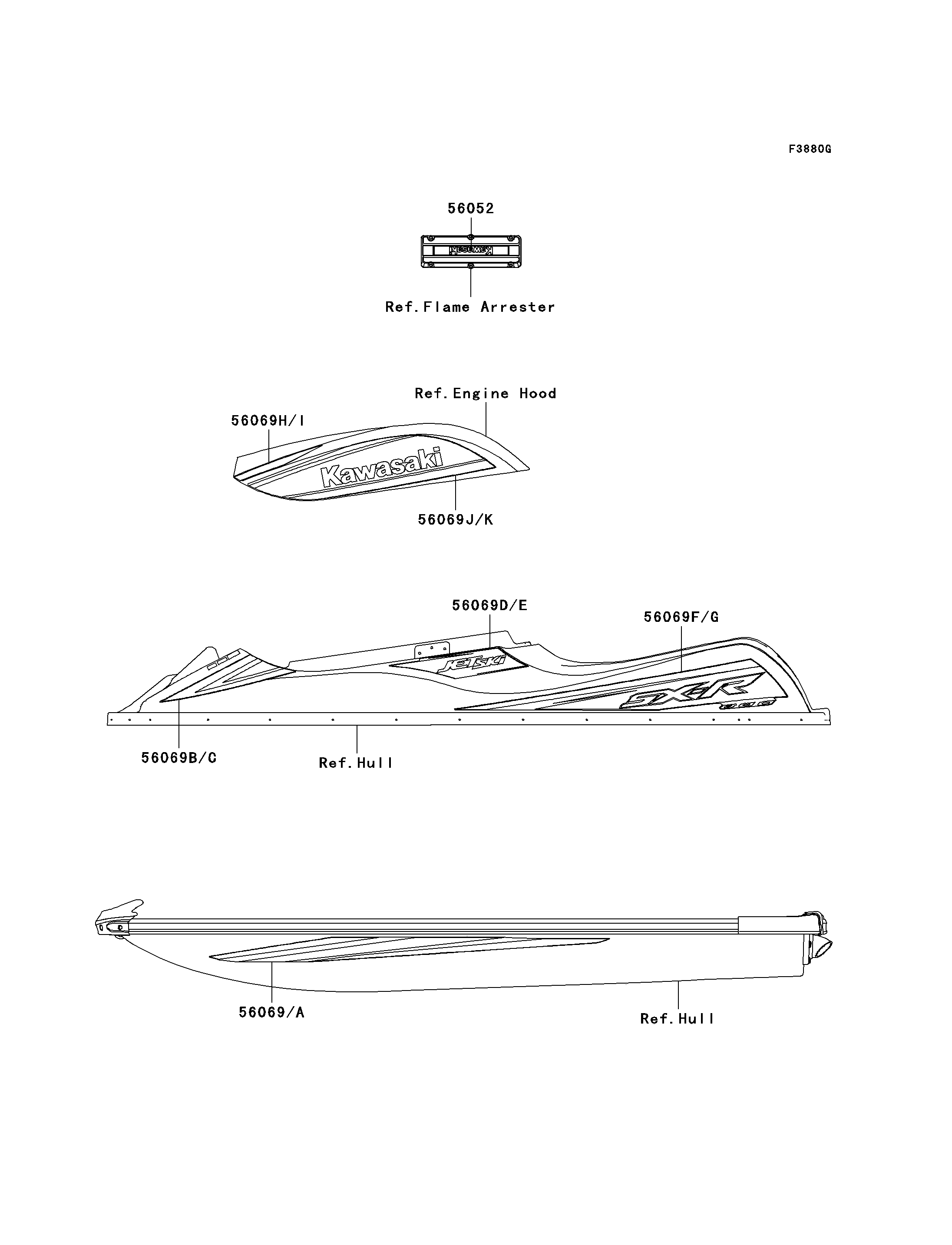

2010 Jet Ski® 800 SX-R™ - Decals(Black)(AAF)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,KAWASAKI | 56052 | 56052-3807 | 1 | ||
| PATTERN,HULL,LH | 56069 | 56069-3727 | 1 | ||
| PATTERN,HULL,RH | 56069A | 56069-3728 | 1 | ||
| PATTERN,DECK,FR,LH | 56069B | 56069-3729 | 1 | ||
| PATTERN,DECK,FR,RH | 56069C | 56069-3730 | 1 | ||
| PATTERN,DECK,CNT,LH | 56069D | 56069-3731 | 1 | ||
| PATTERN,DECK,CNT,RH | 56069E | 56069-3732 | 1 | ||
| PATTERN,DECK,RR,LH | 56069F | 56069-3733 | 1 | ||
| PATTERN,DECK,RR,RH | 56069G | 56069-3734 | 1 | ||
| PATTERN,ENGINE HOOD,UPP,LH | 56069H | 56069-3751 | 1 | ||
| PATTERN,ENGINE HOOD,UPP,RH | 56069I | 56069-3752 | 1 | ||
| PATTERN,ENGINE HOOD,LH | 56069J | 56069-3753 | 1 | ||
| PATTERN,ENGINE HOOD,RH | 56069K | 56069-3754 | 1 |
