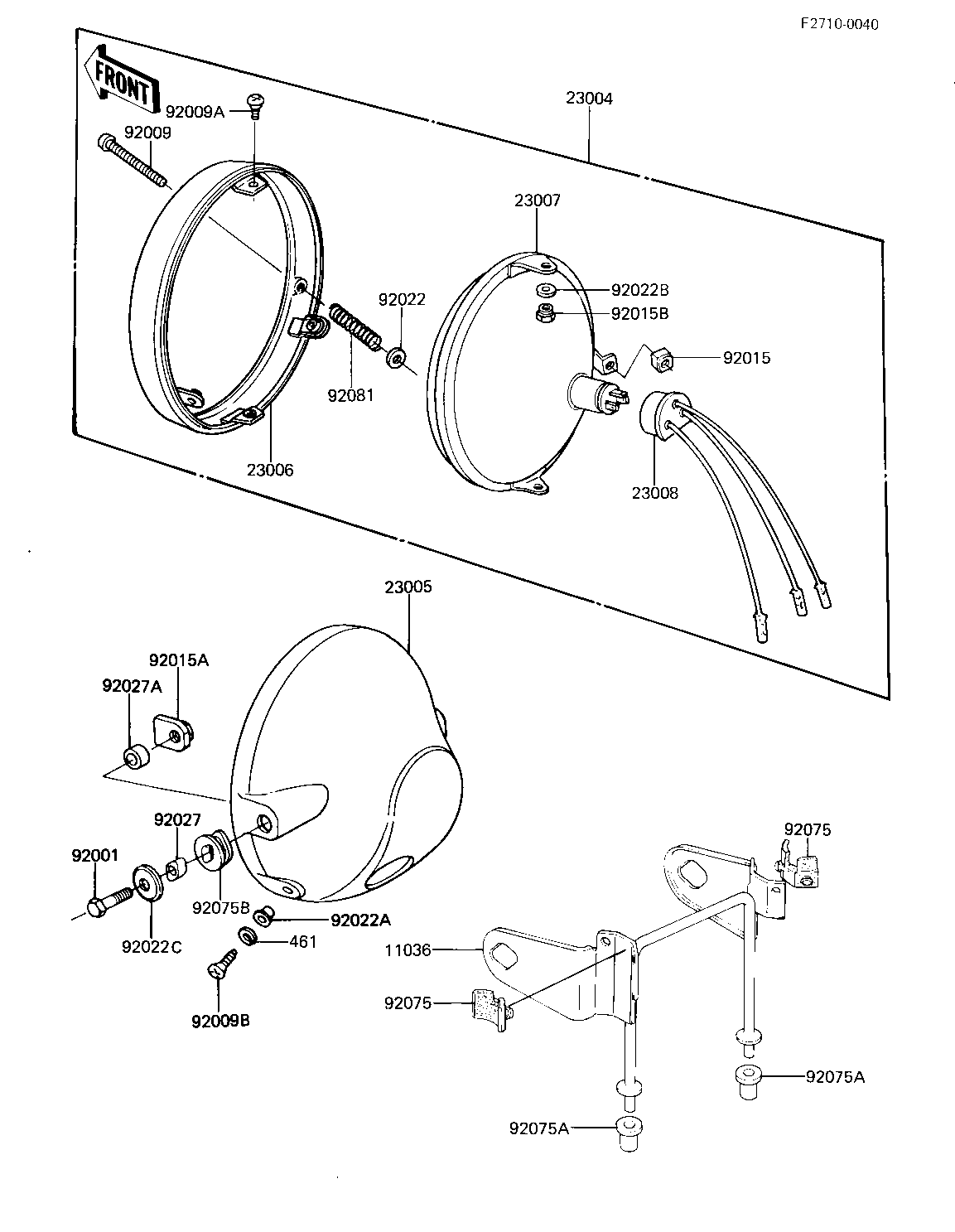

1982 CSR - HEADLIGHT

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HEAD LAMP 11036 11036-1031 1
LIGHT UNIT HEAD 23004 23003-022 1
BODY,HEAD LIGHT,BLACK 23005 23005-047-21 1
RIM HEAD LIGHT 23006 23006-044 1
LENS UNIT HEAD LIGHT 23007 23007-059 1
SOCKET ASSY,HEAD LAMP 23008 23008-037 1
BOLT,10MM 92001 92007-024 2
SCREW FORCUS ADJUST 92009 23019-021 1
SCREW-PAN HEAD,5X12 92009A 23019-023 2
SCREW-PAN HEAD,5MM 92009B 92011-024 2
NUT,4MM 92015 23020-018 1
NUT 10MM 92015A 23020-021 2
NUT,HEAD LAMP RIM FIT 92015B 23020-023 2
WASHER 92022 23021-004 1
WASHER 92022A 23021-010 2
WASHER-PLAIN,5MM 92022B 23021-012 2
WASHER,PLAIN 92022C 92022-289 2
COLLAR,HEAD LAMP 92027 92027-1129 2
COLLAR,HEAD LIGHT 92027A 92027-231 2
DAMPER,LAMP BRACKET 92075 92075-1106 2
DAMPER,LAMP BRACKET 92075A 92075-1107 2
DAMPER RUBBER 92075B 92075-128 2
SPRING,FOCUS ADJUSTIN 92081 23014-011 2
WASHER SPRING 5MM 461 461F0500 2
