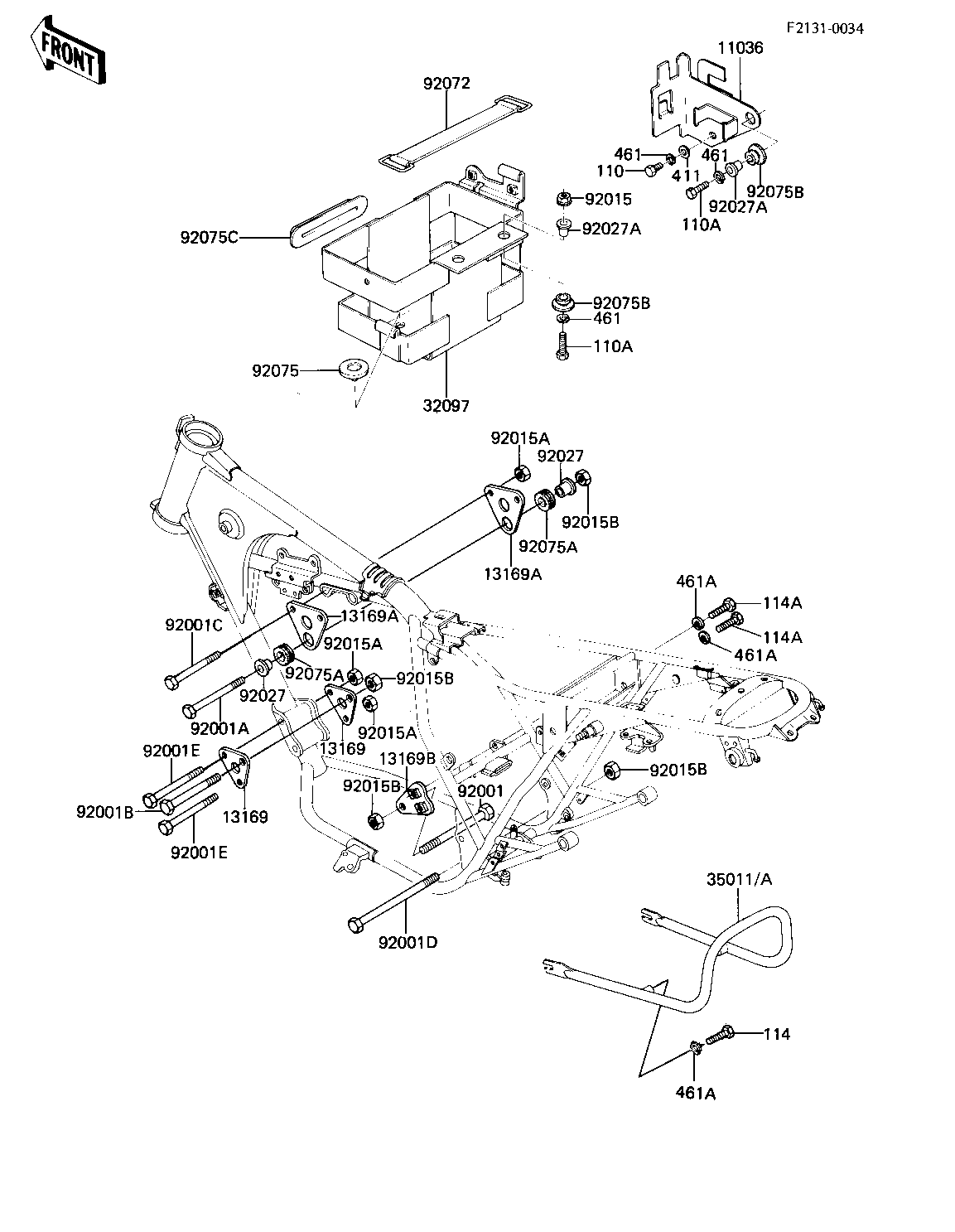

1982 CSR - FRAME FITTINGS/BATTERY CASE
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,ELECTRO BASE | 11036 | 11036-1050 | 1 | ||
| PLATE,ENGINE,FR | 13169 | 13169-1111 | 2 | ||
| PLATE,ENGINE,HEAD | 13169A | 13169-1112 | 2 | ||
| PLATE, ENGINE REAR UP | 13169B | 13169-1113 | 1 | ||
| CASE-BATTERY | 32097 | 32097-1053 | 1 | ||
| STAY,RR | 35011A | 35011-1107 | 1 | ||
| BOLT,HEX HEAD,10X130 | 92001 | 92001-1249 | 1 | ||
| BOLT,FLANGED,10X70 | 92001A | 92001-1618 | 1 | ||
| BOLT, FLANGED, 10X110 | 92001B | 92001-1602 | 1 | ||
| BOLT,10X45 | 92001C | 92001-1182 | 2 | ||
| BOLT,FLANGED,10X145 | 92001D | 92001-1605 | 1 | ||
| BOLT,FLANGED,8X110 | 92001E | 92001-1597 | 2 | ||
| NUT-6MM | 92015 | 92015-1078 | 2 | ||
| NUT,LOCK,8MM | 92015A | 92015-1124 | 4 | ||
| NUT,10MM | 92015B | 92015-1429 | 4 | ||
| COLLAR,ENGINE HEAD | 92027 | 92027-1116 | 2 | ||
| COLLAR | 92027A | 92027-194 | 3 | ||
| BAND BATTERY | 92072 | 92072-006 | 1 | ||
| DAMPER RUBBER | 92075 | 92075-078 | 4 | ||
| DAMPER RUBBER,MUFFLER | 92075A | 92075-1086 | 2 | ||
| DAMPER RUBBER | 92075B | 92075-277 | 3 | ||
| DAMPER RUBBER | 92075C | 92075-280 | 1 | ||
| BOLT-UPSET,6X12 | 110 | 112G0612 | 1 | ||
| BOLT 6X22 | 110A | 112B0622 | 3 | ||
| BOLT-SMALL-UPSET,8X16 | 114 | 115G0816 | 2 | ||
| BOLT,8X20 | 114A | 115G0820 | 2 | ||
| WASHER PLAIN 6MM | 411 | 411B0600 | 1 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 4 | ||
| WASHER SPRING 8MM | 461A | 461F0800 | 4 |
| BRACKET,ELECTRO BASE | |
| REF # | 11036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,ENGINE,FR | |
| REF # | 13169 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLATE,ENGINE,HEAD | |
| REF # | 13169A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLATE, ENGINE REAR UP | |
| REF # | 13169B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-BATTERY | |
| REF # | 32097 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,RR | |
| REF # | 35011A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,10X130 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X70 | |
| REF # | 92001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT, FLANGED, 10X110 | |
| REF # | 92001B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X45 | |
| REF # | 92001C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X145 | |
| REF # | 92001D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X110 | |
| REF # | 92001E |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT-6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,8MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,10MM | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,ENGINE HEAD | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BAND BATTERY | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,MUFFLER | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 92075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 92075C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X12 | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT 6X22 | |
| REF # | 110A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT-SMALL-UPSET,8X16 | |
| REF # | 114 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,8X20 | |
| REF # | 114A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 411 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 461A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
