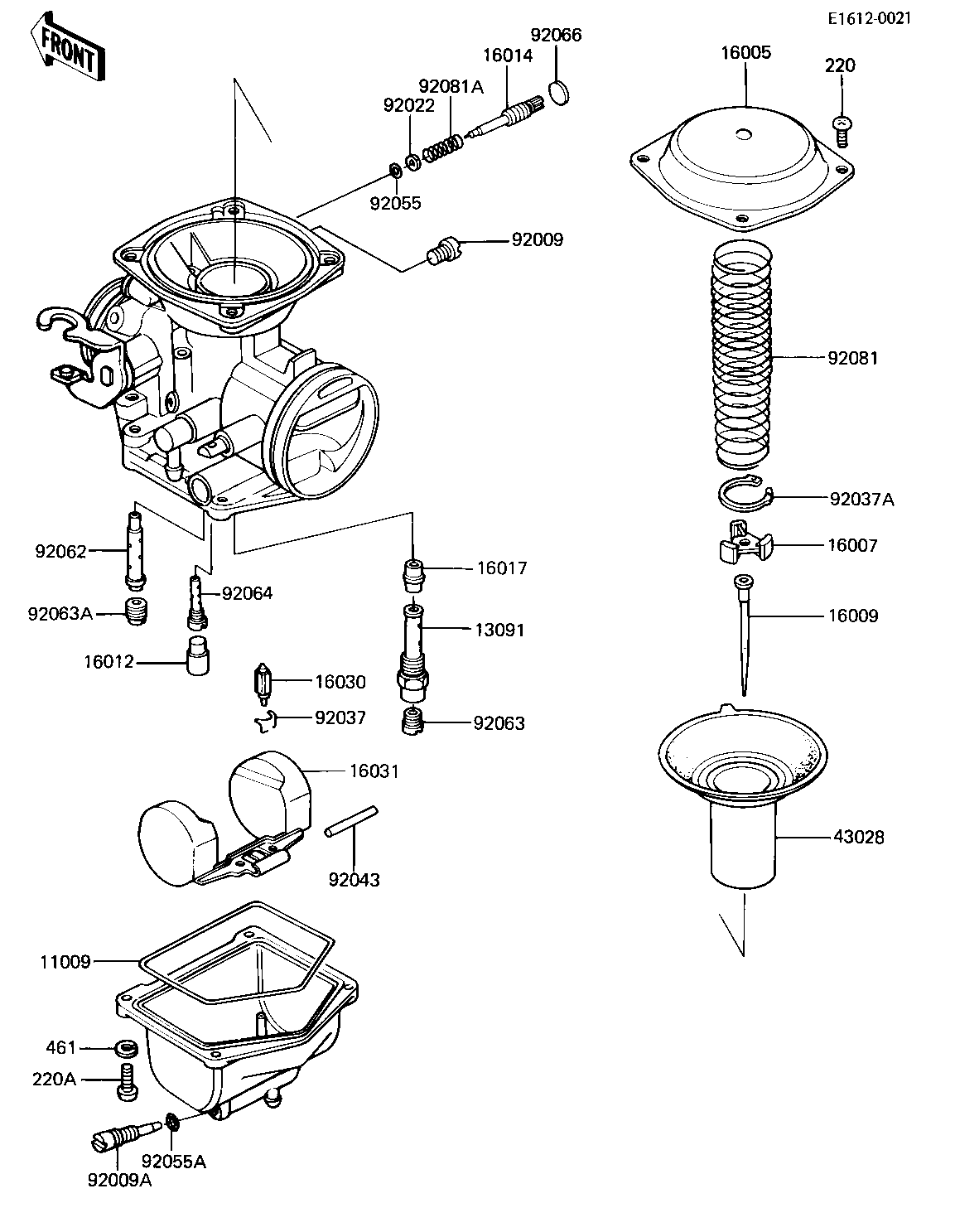

1982 CSR - CARBURETOR PARTS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
"O" RING,FLOAT BALL 11009 16019-024 2
HOLDER,NEEDLE JET 13091 13091-1050 2
TOP,MIXING CHAMBER 16005 16005-1001 2
COLLAR 16007 16007-1001 2
JET NEEDLE,#N05C 16009 16009-1081 2
CAP,RUBBER 16012 16012-1001 2
SCREW,PILOT ADJUST 16014 16014-1029 2
NEEDLE JET 16017 16017-1079 2
FLOAT VALVE 16030 16030-1007 2
FLOAT 16031 16031-1001 2
VACUUM,PISTON 43028 43028-1023 2
SCREW,PLUG 92009 92009-1004 2
SCREW,DRAIN 92009A 92009-1095 2
WASHER,PLAIN 92022 92022-1003 2
CLIP,FLOAT VALVE 92037 16044-007 2
CIRCLIP 92037A 92037-1005 2
FLOAT PIN 92043 92043-1002 2
O RING,PILOT ADJ 92055 92055-1002 2
"O" RING,DRAIN SCREW 92055A 92055-1053 2
NOZZLE,MAIN 92062 92062-1018 2
MAIN JET,2ND,#85 92063 92063-1023 2
MAIN JET,PRI,#62 92063A 92063-1070 2
PILOT JET,#35 92064 92064-1001 2
PLUG,PILOT SCREW 92066 92066-1051 2
SPRING 92081 92081-1001 2
SPRING,PIROT ADJ SCRW 92081A 92081-1002 2
SCREW PAN HEAD 4X8 220 220B0408 7
SCREW-PAN-CRSOSS,4X12 220A 220B0412 8
WASHER SPRING 4MM 461 461F0400 8
