Parts Diagrams |

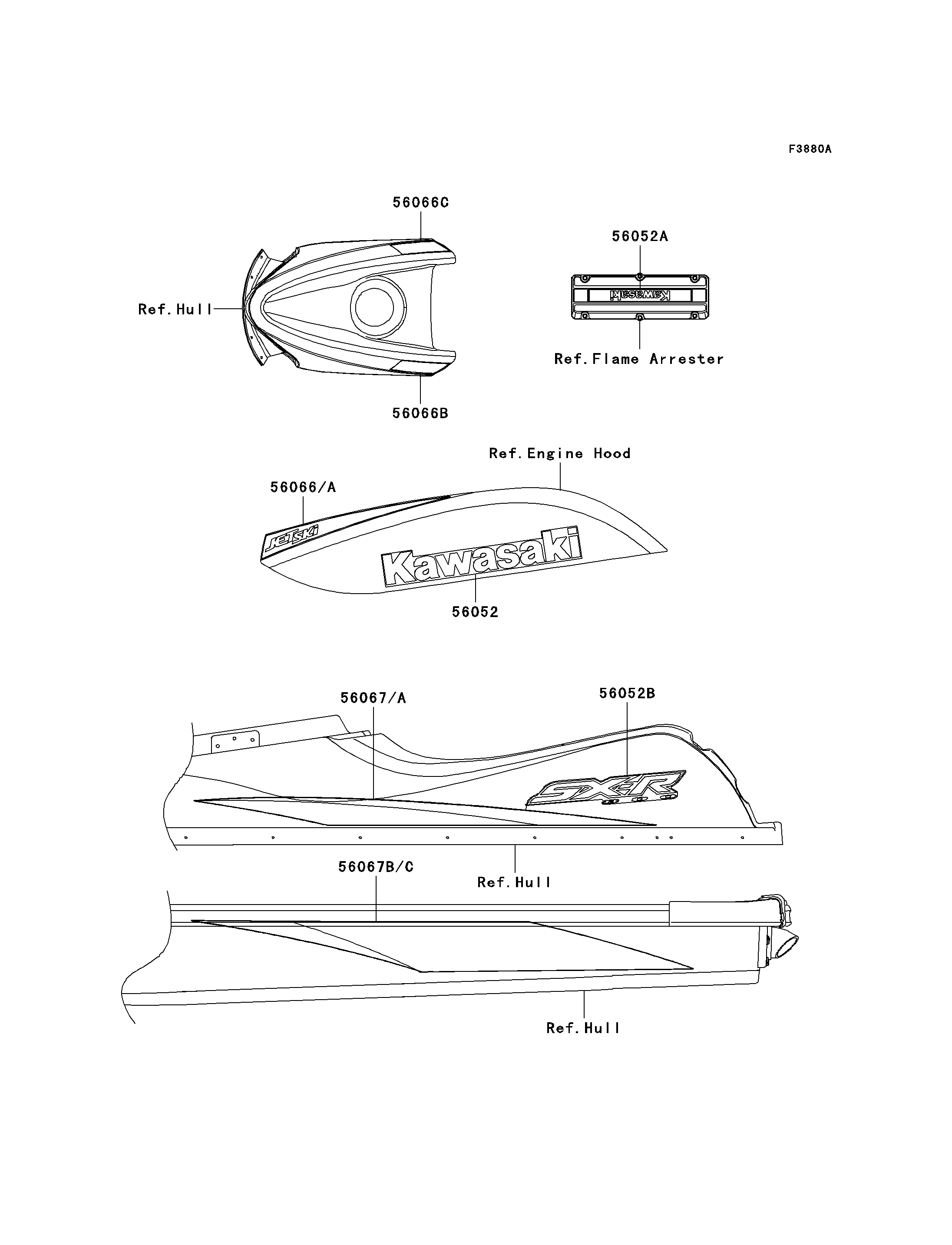

2006 800 SX-R - Decals(Yellow)(A6F)(US)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,ENGINE HOOD,KAWASAKI | 56052 | 56052-3799 | 2 | US | |
| MARK,KAWASAKI | 56052A | 56052-3807 | 1 | US | |
| MARK,DECK,SX-R 800 | 56052B | 56052-3831 | 2 | US | |
| PATTERN,ENGINE HOOD,LH | 56066 | 56066-3829 | 1 | US | |
| PATTERN,ENGINE HOOD,RH | 56066A | 56066-3830 | 1 | US | |
| PATTERN,NOSE COVER,LH | 56066B | 56066-3861 | 1 | US | |
| PATTERN,NOSE COVER,RH | 56066C | 56066-3862 | 1 | US | |
| PATTERN,DECK,LH | 56067 | 56067-3701 | 1 | US | |
| PATTERN,DECK,RH | 56067A | 56067-3702 | 1 | US | |
| PATTERN,HULL,LH | 56067B | 56067-3703 | 1 | US | |
| PATTERN,HULL,RH | 56067C | 56067-3704 | 1 | US |
| MARK,ENGINE HOOD,KAWASAKI | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | US |
| REMARKS | |
| MARK,KAWASAKI | |
| REF # | 56052A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| MARK,DECK,SX-R 800 | |
| REF # | 56052B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | US |
| REMARKS | |
| PATTERN,ENGINE HOOD,LH | |
| REF # | 56066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| PATTERN,ENGINE HOOD,RH | |
| REF # | 56066A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| PATTERN,NOSE COVER,LH | |
| REF # | 56066B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| PATTERN,NOSE COVER,RH | |
| REF # | 56066C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| PATTERN,DECK,LH | |
| REF # | 56067 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| PATTERN,DECK,RH | |
| REF # | 56067A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| PATTERN,HULL,LH | |
| REF # | 56067B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| PATTERN,HULL,RH | |
| REF # | 56067C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
