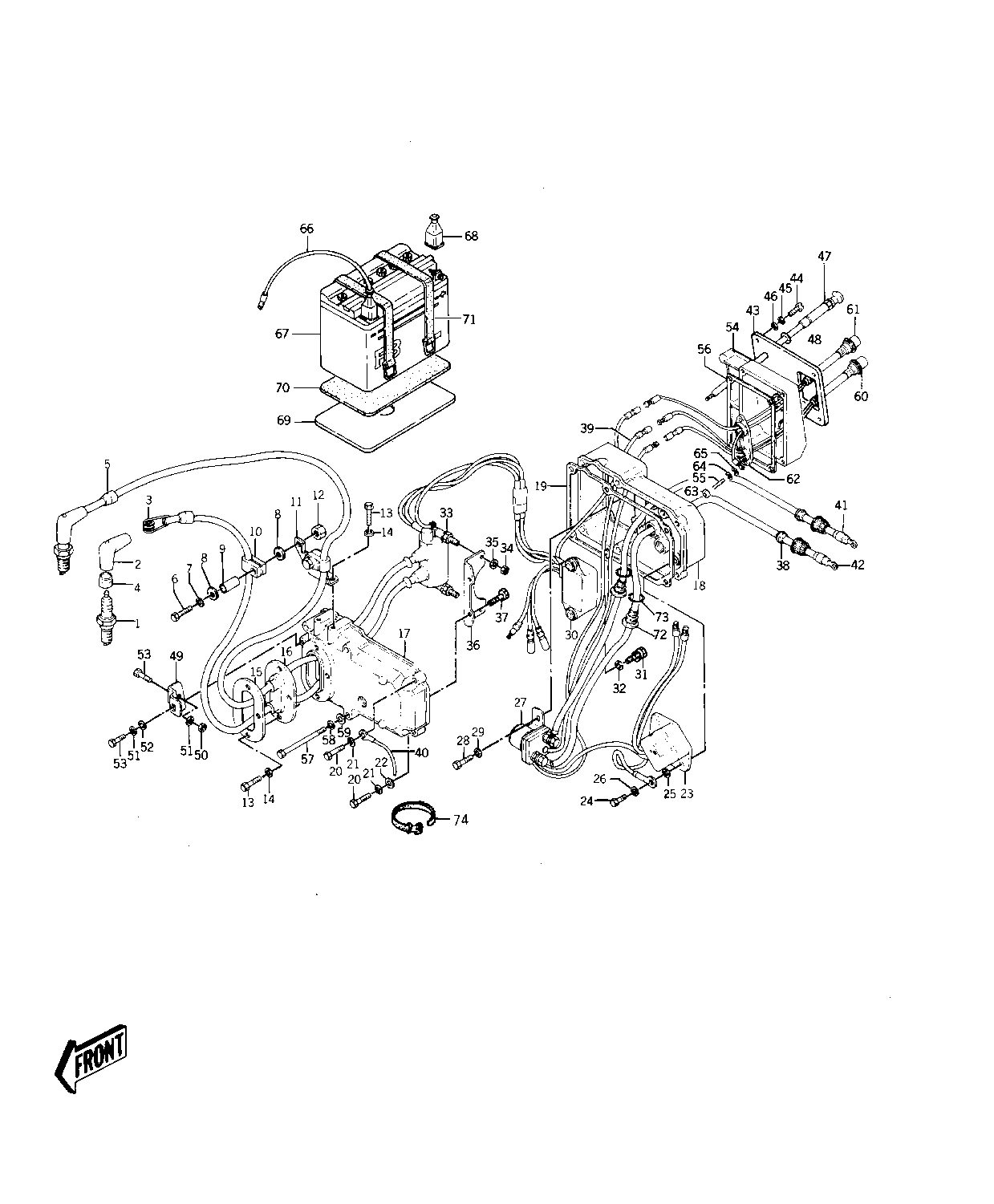

1976 JS400 - ELECTRIC CASE

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPARK PLUG B7ES 1 B7ES 2
CAP,PLUG 2 21130-504 2
.SPRING,PLUG CAP 3 92081-542 2
COVER,PLUG 4 92071-501 2
GROMMET 5 92071-517 2
BOLT,6X30 6 92001-3022 2
WASHER 7 411S0600 2
WASHER 8 92022-553 4
COLLAR 9 92027-519 2
CLAMP 10 92037-523 2
BRACKET,CLAMP 11 59016-514 1
NUT,6M/M 12 311R0600 2
BOLT 6X14 13 110R0614 6
WASHER-SPRING,6MM 14 461S0600 6
PLATE-ELECTRICAL CASE 15 59086-516 1
GROMMET 16 92071-526 1
BOX,ELECTRIC(1) 17 59021-518-9G 1
BOX,ELECTRIC (2) 18 59021-526-9G 1
GASKET,CASE 19 11009-3024 1
BOLT 6X22 20 110R0622 2
WASHER-SPRING,6MM 21 461S0600 2
WASHER 22 410S0600 1
REGULATOR 23 21066-501 1
BOLT-UPSET 6X14 24 112B0614 2
WASHER PLAIN 6MM 25 410B0600 2
WASHER SPRING 6MM 26 461F0600 2
SWITCH,MAGNETIC 27 21164-515 1
BOLT SMALL 28 114G0812 2
WASHER SPRING 5MM 29 461F0500 2
IGNITER 30 21119-3004 1
BOLT-UPSET-WS,6X22 31 180B0622 2
WASHER,IGNITER 32 92022-3013 2
COIL,IGNITION 33 21121-518 1
NUT 6MM 34 311B0600 2
WASHER SPRING 6MM 35 461F0600 2
BRACKET,COIL 36 59016-521 1
BOLT-UPSET-WS,6X14 37 180B0614 2
GROMMET 38 92071-527 2
WIRE,SWITCH 39 26011-504 1
WIRE,EARTH 40 26011-505 1
WIRE,STARTER 41 26011-510 1
WIRE,BATTERY 42 26011-511 1
DASHBOARD 43 59226-503-9H 1
SCREW,6X20 44 220R0620 4
WASHER-SPRING,6MM 45 461S0600 4
WASHER 46 411S0600 4
CABLE,CHOKE 47 59401-3001 1
GASKET 48 92065-538 1
CLAMP 49 92037-532 1
NUT 6M/M 50 312R0600 1
WASHER-SPRING,6MM 51 461S0600 2
WASHER 52 411S0600 1
BOLT 6X12 53 110R0612 2
BOX,SWITCH 54 59191-502 1
.STUD 55 171R0514A 2
GASKET,UNIT BOX 56 92065-511 1
BOLT 6X99 57 110R0699 4
WASHER-SPRING,6MM 58 461S0600 4
WASHER 59 411S0600 4
SWITCH,STARTER 60 21164-511 1
SWITCH,STOP 61 21164-512 1
RETAINER,SWITCH 62 23072-515 1
NUT,5MM 63 311B0500 2
WASHER SPRING 5MM 64 461F0500 2
WASHER PLAIN 5MM 65 411B0500 1
WIRE,BATTERY EARTH 66 26011-501 1
FB BAT 12N16-3B 67 26012-1013 1
CAP-BATTERY TERMINAL 68 59176-501 2
PLATE-BATTERY 69 59086-520 1
CUSHION,BATTERY 70 92075-509 1
BAND,BATTERY 71 92072-512 2
JOINT-STATOR WIRE 72 59071-516 4
"0" RING,16MM 73 670B2016 4
BAND,MIDDLE 74 92072-031 1
