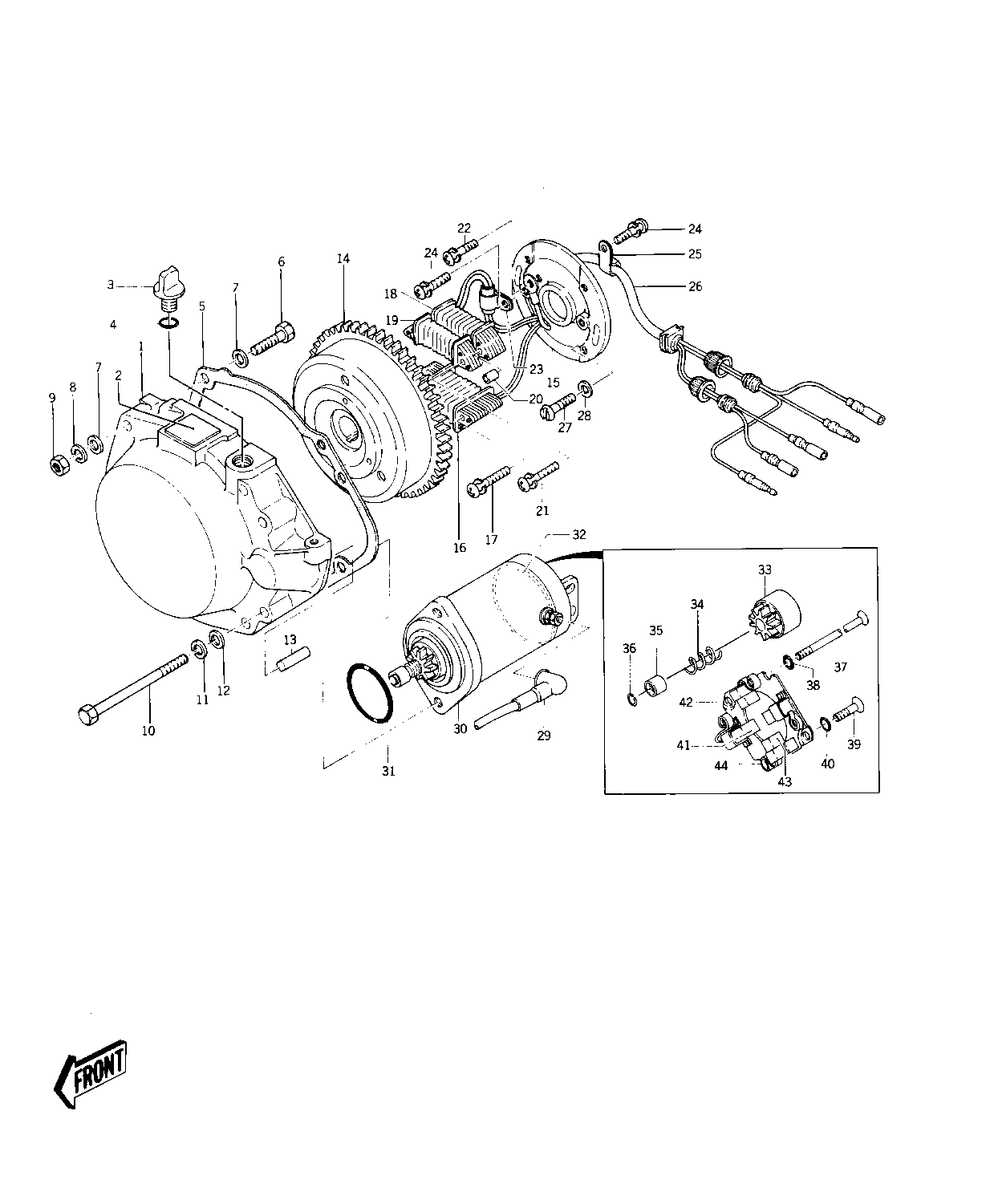

1976 JS400 - GENERATOR/STARTER MOTOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,MAGNETO 1 59036-560-9G 1
LABEL,HORSE POWER 2 56019-535 1
PLUG,MAGNETO COVER 3 92066-505 1
"0" RING 4 92055-515 1
GASKET,MAGNETO COVER 5 92065-516 1
BOLT 8X50 6 110R0850 4
WASHER 7 410S0800 8
WASHER SPRING 8MM 8 461S0800 4
NUT 8MM 9 311R0800 4
BOLT,8X80 10 92001-3011 2
WASHER SPRING 8MM 11 461S0800 2
WASHER 12 410S0800 2
PIN,DOWEL 13 551R0612 2
MAGNETO ASS'Y 14-0 21002-522 1
.FLYWHEEL ASS'Y 14 21050-513 1
.BASE ASS'Y 15 21003-521 1
..COIL,CHARGE 16 59031-501 1
..SCREW 5X34 17 92011-530 2
..COIL,EXCITING 18 21049-506 1
..COIL,PULSING 19 59026-504 1
..COLLAR,COIL 20 92027-509 2
..SCREW 5X40 21 92011-533 2
..SCREW 4X6 22 92011-559 1
..CLAMP 23 92037-520 1
..SCREW 4X8 24 92011-560 2
..CLAMP-STATOR WIRE 25 92037-518 1
..WIRE ASSY 26 26001-514 1
SCREW 5X20 27 232B0520A 2
WASHER 28 92022-544 2
CAP,STARTER 29 59176-506 1
STARTER-ELECTRIC 30 21163-3710 1
."0" RING,65MM 31 671B2565 1
."0" RING(4) 32 92055-517 1
.PINION ASS'Y 33 59051-504 1
.SPRING,RETURN 34 92081-541 1
.STOPPER,PINION 35 92027-513 1
.RING,SNAP 36 92036-517 1
.SCREW 6X107 37 92011-549 2
."O" RING,5MM 38 670B1505 2
.SCREW 4X8 39 92011-550 2
.'O'RING(1) 40 92055-519 2
.BRUSH(+) 41 21039-3003 2
.HOLDER ASSY,BRUSH 42 14079-3002 1
..BRUSH(-) 43 21039-3004 2
..SPRING,BRUSH 44 92081-540 4
