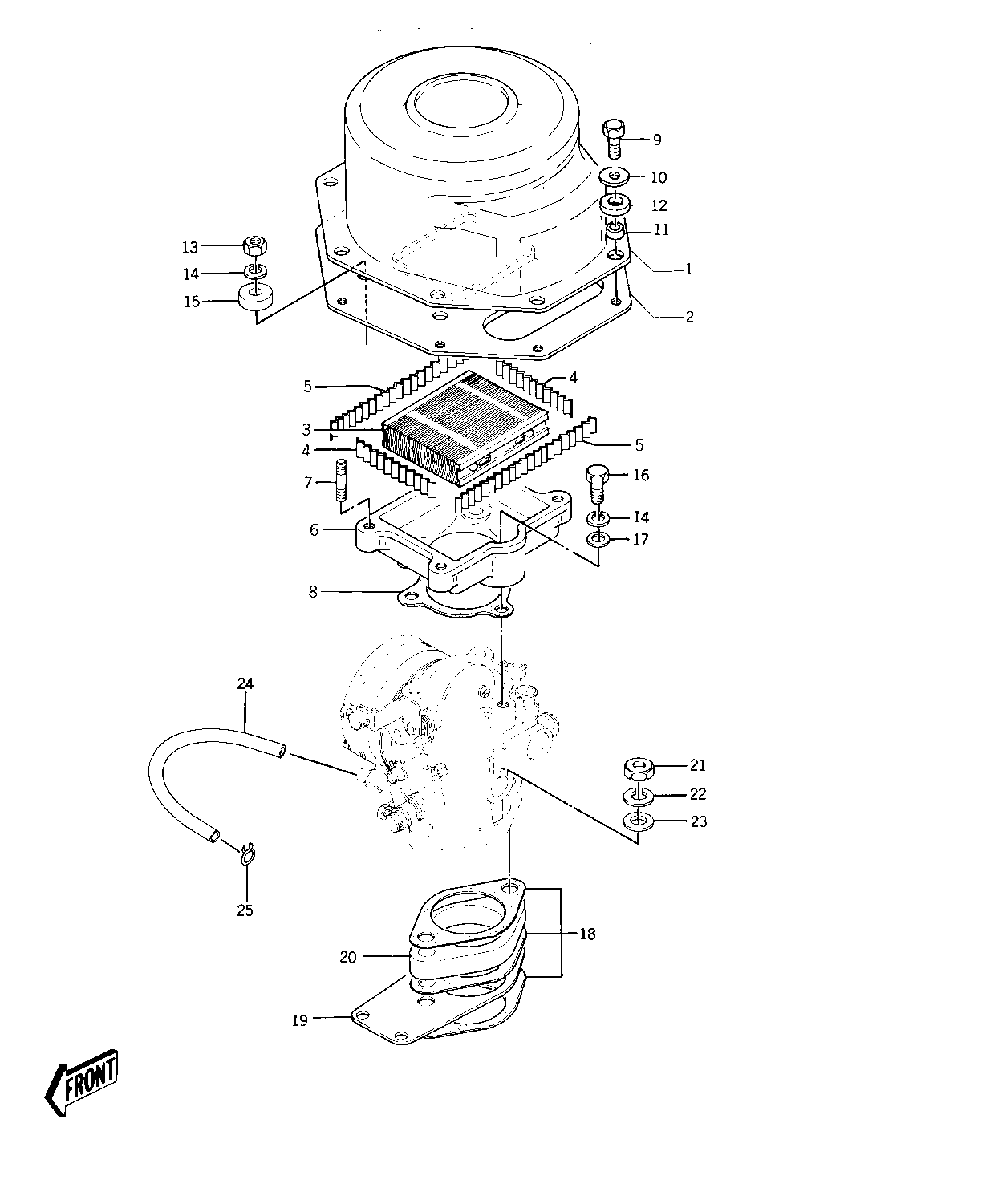

1976 JS400 - CARBURETOR BRACKETS/FLAME ARRESTER
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,AIR INTAKE | 1 | 59036-502-9G | 1 | ||
| PLATE,FLAME ARRESTER | 2 | 59086-533 | 1 | ||
| ARRESTER,FLAME | 3 | 59006-502 | 1 | ||
| SPRING | 4 | 92081-544 | 2 | ||
| SPRING | 5 | 92081-545 | 2 | ||
| CASE,FLAME ARRESTER | 6 | 59021-527-9G | 1 | ||
| STUD | 7 | 172R0616 | 4 | ||
| GASKET | 8 | 11060-3702 | 1 | ||
| BOLT 5X14 | 9 | 110R0514A | 8 | ||
| WASHER,AIR INTAKE | 10 | 92022-506 | 8 | ||
| COLLAR | 11 | 92027-526 | 8 | ||
| DAMPER,AIR INTAKE | 12 | 92075-505 | 8 | ||
| NUT,6M/M | 13 | 311R0600 | 4 | ||
| WASHER-SPRING,6MM | 14 | 461S0600 | 7 | ||
| WASHER,COVER | 15 | 92022-508 | 4 | ||
| UNAVAILABLE IN PRICE BOOK | 16 | 110T0620 | 3 | ||
| WASHER | 17 | 410S0600 | 3 | ||
| GASKET,INSULATOR | 18 | 11009-3786 | 3 | ||
| BRACKET,CONTROL | 19 | 59016-506 | 1 | ||
| INSULATOR | 20 | 16061-511 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 21 | 312T0800 | 2 | ||
| WASHER SPRING 8MM | 22 | 461S0800 | 2 | ||
| WASHER | 23 | 410S0800 | 2 | ||
| PIPE,PULS | 24 | 92059-518 | 1 | ||
| CLAMP,SPARK PLUG CAP | 25 | 92037-1173 | 1 |
