Parts Diagrams |

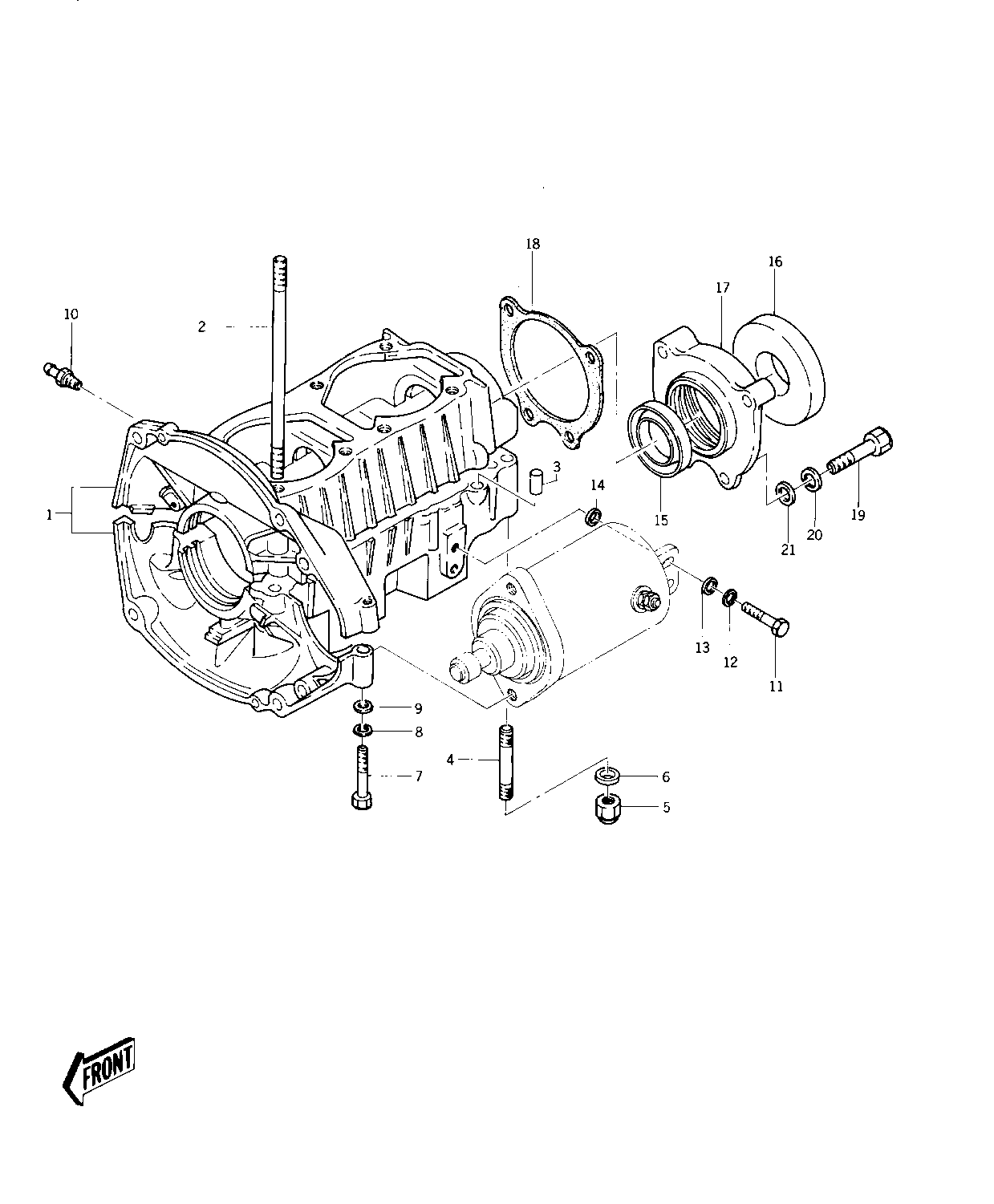

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CRANK CASE ASS'Y | 1 | 14001-519-9G | 1 | ||
| .STUD | 2 | 92004-507 | 8 | ||
| .PIN-DOWEL | 3 | 92042-007 | 2 | ||
| .STUD | 4 | 92004-514 | 10 | ||
| .NUT 8M/M | 5 | 92015-503 | 10 | ||
| .WASHER | 6 | 410S0800 | 10 | ||
| .BOLT 6X40 | 7 | 110R0640 | 1 | ||
| .WASHER-SPRING,6MM | 8 | 461S0600 | 1 | ||
| .WASHER | 9 | 410S0600 | 1 | ||
| JOINT,PULS | 10 | 59071-506 | 1 | ||
| BOLT 6X20 | 11 | 110R0620 | 2 | ||
| WASHER-SPRING,6MM | 12 | 461S0600 | 2 | ||
| WASHER | 13 | 410S0600 | 2 | ||
| WASHER | 14 | 410S0600 | AR | ||
| SEAL,OIL DC305513 | 15 | 92050-512 | 1 | ||
| SEAL,OIL SCY547410 | 16 | 92050-508 | 1 | ||
| HOUSING,OIL SEAL | 17 | 23072-513-9G | 1 | ||
| GASKET,HOUSING | 18 | 92065-515 | 1 | ||
| BOLT,8X38 | 19 | 92001-3017 | 4 | ||
| WASHER SPRING 8MM | 20 | 461S0800 | 4 | ||
| WASHER | 21 | 410S0800 | 4 |
| CRANK CASE ASS'Y | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| .STUD | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| .PIN-DOWEL | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| .STUD | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| .NUT 8M/M | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| .WASHER | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| .BOLT 6X40 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| .WASHER-SPRING,6MM | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| .WASHER | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JOINT,PULS | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT 6X20 | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER-SPRING,6MM | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| SEAL,OIL DC305513 | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL,OIL SCY547410 | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOUSING,OIL SEAL | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,HOUSING | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,8X38 | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
