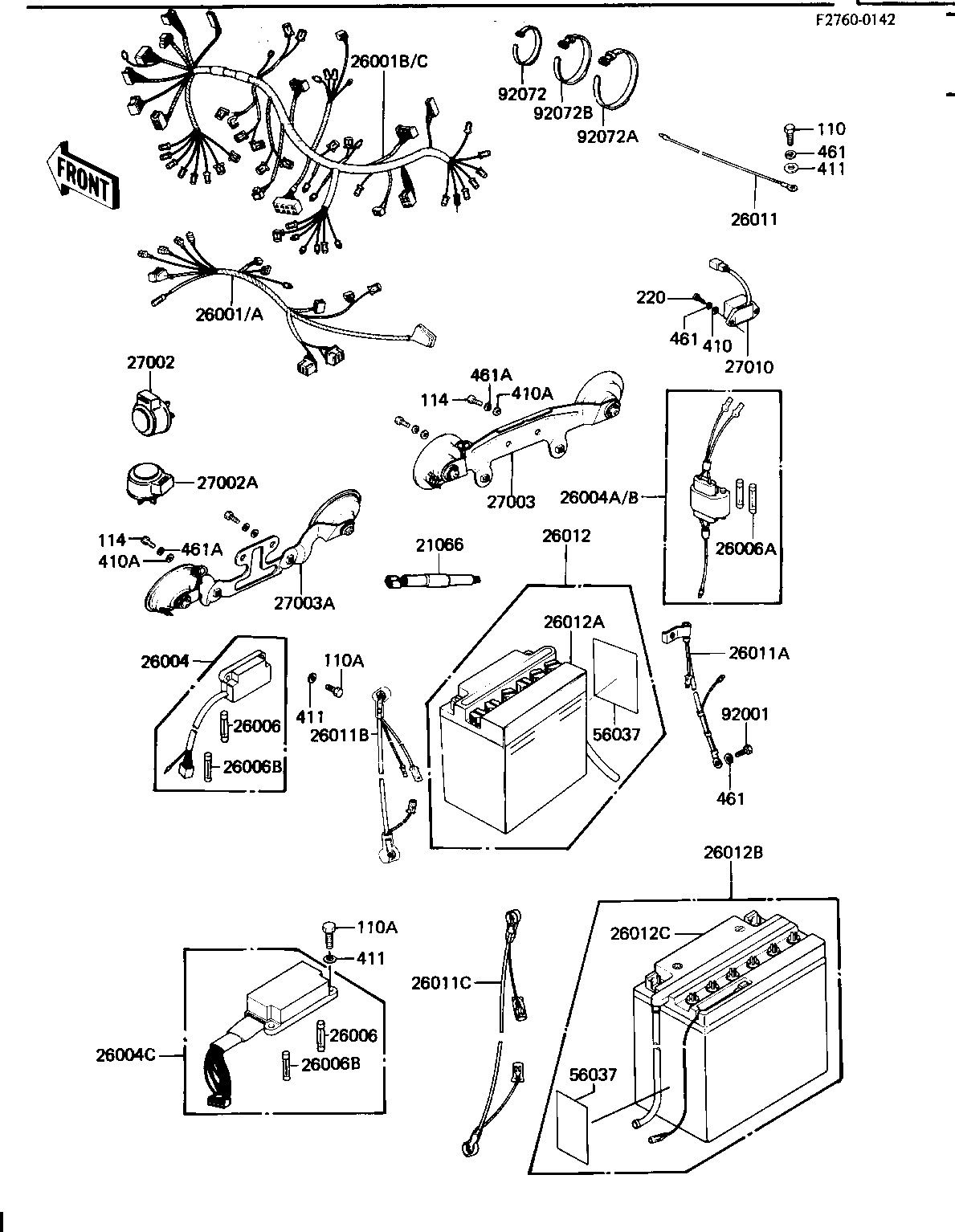

1981 GPz - CHASSIS ELECTRICAL EQUIPMENT

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
REGULATOR 21066 21066-026 1
HARNESS,CONTROL UNIT 26001 26001-1263 1
HARNESS,MAIN 26001B 26001-1354 1
FUSE-ASSY 26004 26004-1011 1
FUSE-ASSY,ACCESSORY 26004A 26004-1014 1
FUSE 10A 26006 26006-003 5
FUSE,10A,L=30M/M 26006A 26006-1002 3
FUSE,30A,L=25M/M 26006B 26006-1005 2
WIRE,LEAD 26011 26011-1069 1
WIRE-LEAD,BATTERY,(-) 26011A 26011-1119 1
WIRE-LEAD,STARTER MTR 26011B 26011-1126 1
FB BAT 12N16-3B 26012 26012-1013 1 US
BATT 12N16-3B 26012A 26012-1015 1 CN
RELAY-TURN SIGNAL 27002 27002-011 1
RELAY,TURN SIGNAL 27002A 27002-016 1
HORN 27003 27003-1054 1
SWITCH,RESERVE LIGHTI 27010 27010-1024 1
LABEL-WARNING,BATTERY 56037 56040-1036 1 US
BOLT,HEX HEAD,6MM 92001 92001-137 1
BAND,MIDDLE 92072 92072-031 7
BAND,LONG 92072A 92072-032 2
BAND,WIRING HARNESS 92072B 92072-056 2
BOLT-UPSET,6X12 110 112G0612 1
BOLT 6X22 110A 112B0622 2
BOLT-SMALL,8X16,BLACK 114 115C0816 2
SCREW PAN HEAD 6X20 220 220B0620 2
WASHER PLAIN 6MM 410 410B0600 2
WASHER,PLAIN,8MM 410A 92022-1554 2
WASHER PLAIN 6MM 411 411B0600 3
WASHER SPRING 6MM 461 461F0600 6
WASHER-SPRING,8MM,BLA 461A 461K0800 2
