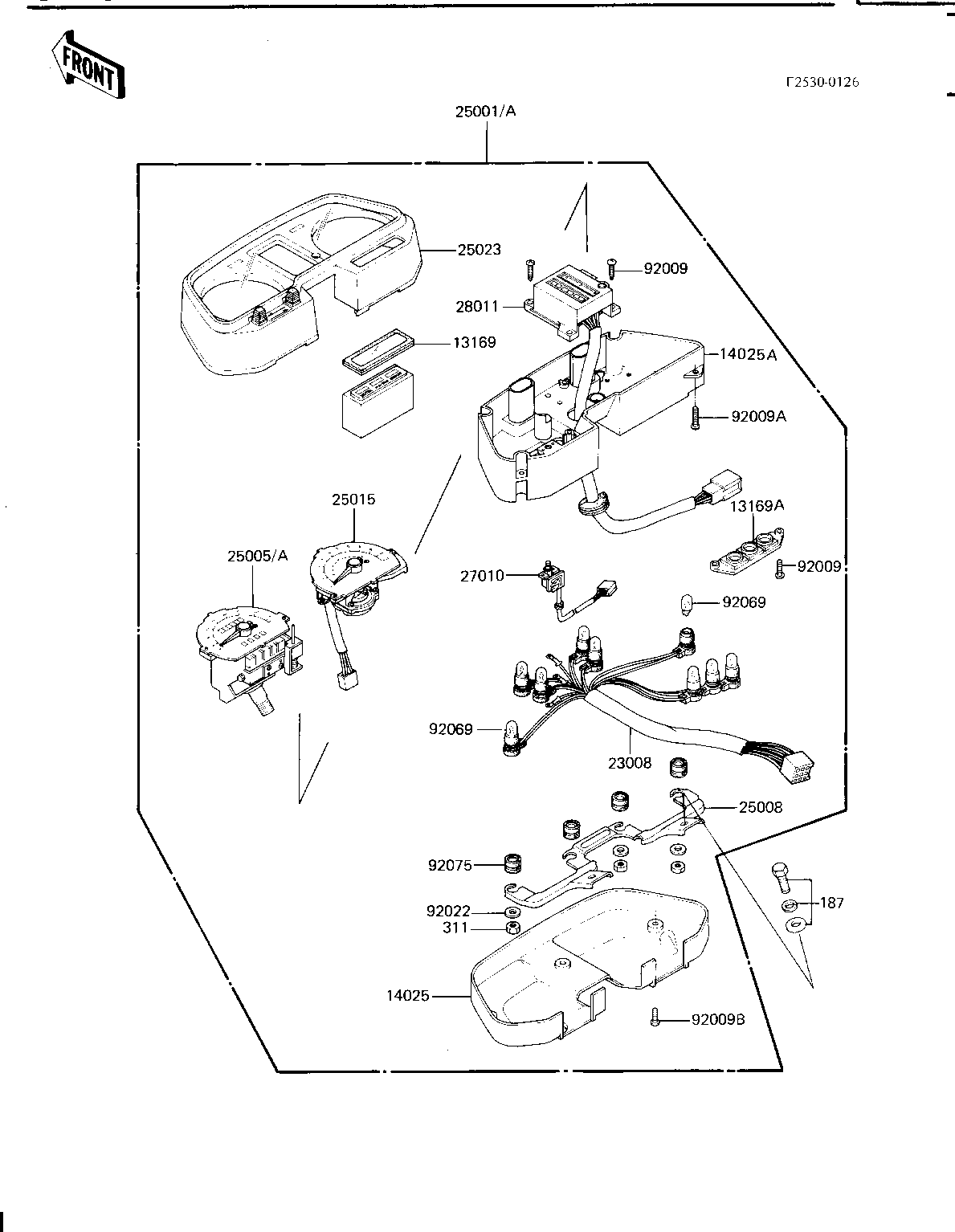

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLATE,PILOT BOX | 13169 | 13169-1508 | 1 | ||
| PLATE,BULB SOCKET | 13169A | 13169-1556 | 1 | ||
| COVER,METER,LWR | 14025 | 14025-1473 | 1 | ||
| COVER,METER UNIT | 14025A | 14025-1951 | 1 | ||
| SOCKET-ASSY,METER | 23008 | 23008-1149 | 1 | ||
| METER-ASSY,MPH | 25001 | 25001-1315 | 1 | US | |
| METER-ASSY,KPH (Canada) | 25001A | 25001-1316 | 1 | CN | |
| SPEEDOMETER,MPH | 25005 | 25005-1175 | 1 | US | |
| SPEEDOMETER,KPH (Canada) | 25005A | 25005-1180 | 1 | CN | |
| BRACKET-METER | 25008 | 25008-1057 | 1 | CN | |
| TACHOMETER,X1000R/MIN | 25015 | 25015-1232 | 1 | ||
| COVER-METER CASE,UPP | 25023 | 25023-1124 | 1 | ||
| SWITCH,TACHO/VOLT | 27010 | 27010-1062 | 1 | ||
| METER,FUEL & WARNING | 28011 | 28011-1029 | 1 | ||
| SCREW,TAPPING,4X14 | 92009 | 92009-1140 | 4 | ||
| SCREW,TAPPING,4X20 | 92009A | 92009-1141 | 4 | ||
| SCREW,TAPPING,4X12 | 92009B | 92009-1142 | 3 | ||
| WASHER,PLAIN,6MM | 92022 | 92022-263 | 4 | ||
| BULB,12V3.4W | 92069 | 92069-1007 | 9 | ||
| DAMPER,METER BRACKET | 92075 | 92075-1385 | 4 | ||
| BOLT 6X14 | 187 | 187B0614 | 2 | ||
| NUT,5MM | 311 | 311B0500 | 4 |
| PLATE,PILOT BOX | |
| REF # | 13169 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,BULB SOCKET | |
| REF # | 13169A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,METER,LWR | |
| REF # | 14025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,METER UNIT | |
| REF # | 14025A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET-ASSY,METER | |
| REF # | 23008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| METER-ASSY,MPH | |
| REF # | 25001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| METER-ASSY,KPH (Canada) | |
| REF # | 25001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN |
| SPEEDOMETER,MPH | |
| REF # | 25005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| SPEEDOMETER,KPH (Canada) | |
| REF # | 25005A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN |
| BRACKET-METER | |
| REF # | 25008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN |
| TACHOMETER,X1000R/MIN | |
| REF # | 25015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-METER CASE,UPP | |
| REF # | 25023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,TACHO/VOLT | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| METER,FUEL & WARNING | |
| REF # | 28011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X14 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X20 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X12 | |
| REF # | 92009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN,6MM | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BULB,12V3.4W | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| DAMPER,METER BRACKET | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT 6X14 | |
| REF # | 187 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM | |
| REF # | 311 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
