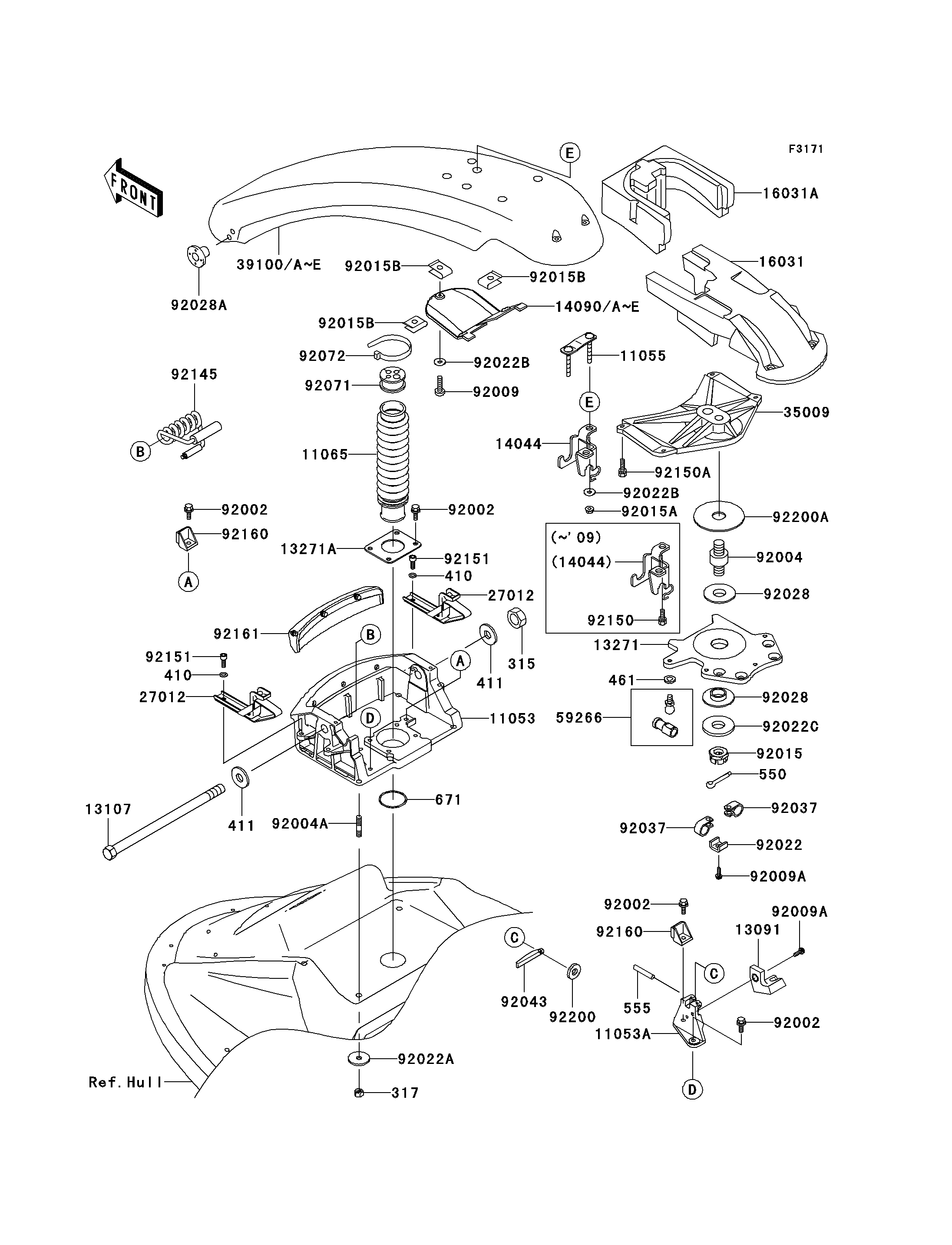

2008 Jet Ski® 800 SX-R™ - Handle Pole

DOWNLOAD PDF
SELECT A NEW PART
11053
11053
11053A
11053A
11065
11065
13091
13091
13107
13107
13271
13271
13271A
13271A
14044
14044
14090D
14090D
16031
16031
16031A
16031A
27012
27012
27012
27012
35009
35009
39100C
39100C
59266
59266
92002
92002
92002
92002
92002
92002
92002
92002
92004
92004
92004A
92004A
92009
92009
92009A
92009A
92009A
92009A
92015
92015
92015B
92015B
92015B
92015B
92015B
92015B
92022
92022
315
315
317
317
410
410
410
410
411
411
411
411
461
461
550
550
555
555
671
671
92022A
92022A
92022B
92022B
92022B
92022B
92022C
92022C
92028
92028
92028
92028
92028A
92028A
92037
92037
92037
92037
92043
92043
92071
92071
92072
92072
92145
92145
92150
92150
92150A
92150A
92151
92151
92151
92151
92160
92160
92160
92160
92161
92161
92200
92200
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11053 11053-3741 1
BRACKET 11053A 11053-3749 1
CAP 11065 11065-3726 1
HOLDER 13091 13091-3774 1
SHAFT 13107 13107-3781 1
PLATE 13271 13271-3845 1
PLATE 13271A 13271-3882 1
HOLDER-CABLE 14044 14044-3716 1
COVER,HANDLE POLE,L.GREEN 14090D 14090-3708-777 1
FLOAT,HANDLE POLE 16031 16031-3951 1
FLOAT,HANDLE POLE 16031A 16031-3952 1
HOOK 27012 27012-3859 2
BRACE 35009 35009-3712 1
POLE-COMP-HANDLE,L.GREEN 39100C 39100-3716-777 1
JOINT-BALL 59266 59266-3707 1
BOLT,6X16 92002 92002-3728 7
STUD 92004 92004-3728 1
STUD,8X25 92004A 92004-3756 4
SCREW,5X16 92009 92009-3797 3
SCREW,5X16 92009A 92009-3868 2
NUT,CASTLE,18MM 92015 92015-3006 1
NUT,CLIP,5MM 92015B 92015-3830 3
WASHER,CLAMP 92022 92022-3014 1
NUT-HEX-FINE,14MM 315 315R1400 1
NUT-HEX-SMALL 317 317R0800 4
WASHER-PLAIN-SMALL,6MM 410 410S0600 4
WASHER-PLAIN,14MM 411 411S1400 2
WASHER-SPRING,6MM 461 461S0600 1
PIN-COTTER,4X40 550 550S4040 1
PIN-SPRING,3X25 555 555B0325 1
O RING,40MM 671 671B2540 1
WASHER,8.5X34X3 92022A 92022-3746 4
WASHER 92022B 92022-567 3
WASHER 92022C 92022-571 1
BUSHING 92028 92028-3743 2
BUSHING,STEERING 92028A 92028-3752 2
CLAMP,LEAD WIRE 92037 92037-3007 2
PIN,STOPPER 92043 92043-3754 1
GROMMET 92071 92071-3788 1
BAND,L=188.85 92072 92072-0105 1
SPRING 92145 92145-3720 1
BOLT,6X16 92150 92150-3714 2
BOLT,6X20 92150A 92150-3758 4
BOLT,SOCKET,6X16 92151 92151-3770 4
DAMPER 92160 92160-3790 2
DAMPER 92161 92161-3743 1
WASHER,3.5X12X1 92200 92200-3723 1
WASHER,20.5X80X3 92200A 92200-3725 1
COVER,HANDLE POLE,BLUE 14090C 14090-3708-16F 1 US
POLE-COMP-HANDLE,BLUE 39100B 39100-3716-16F 1 US
