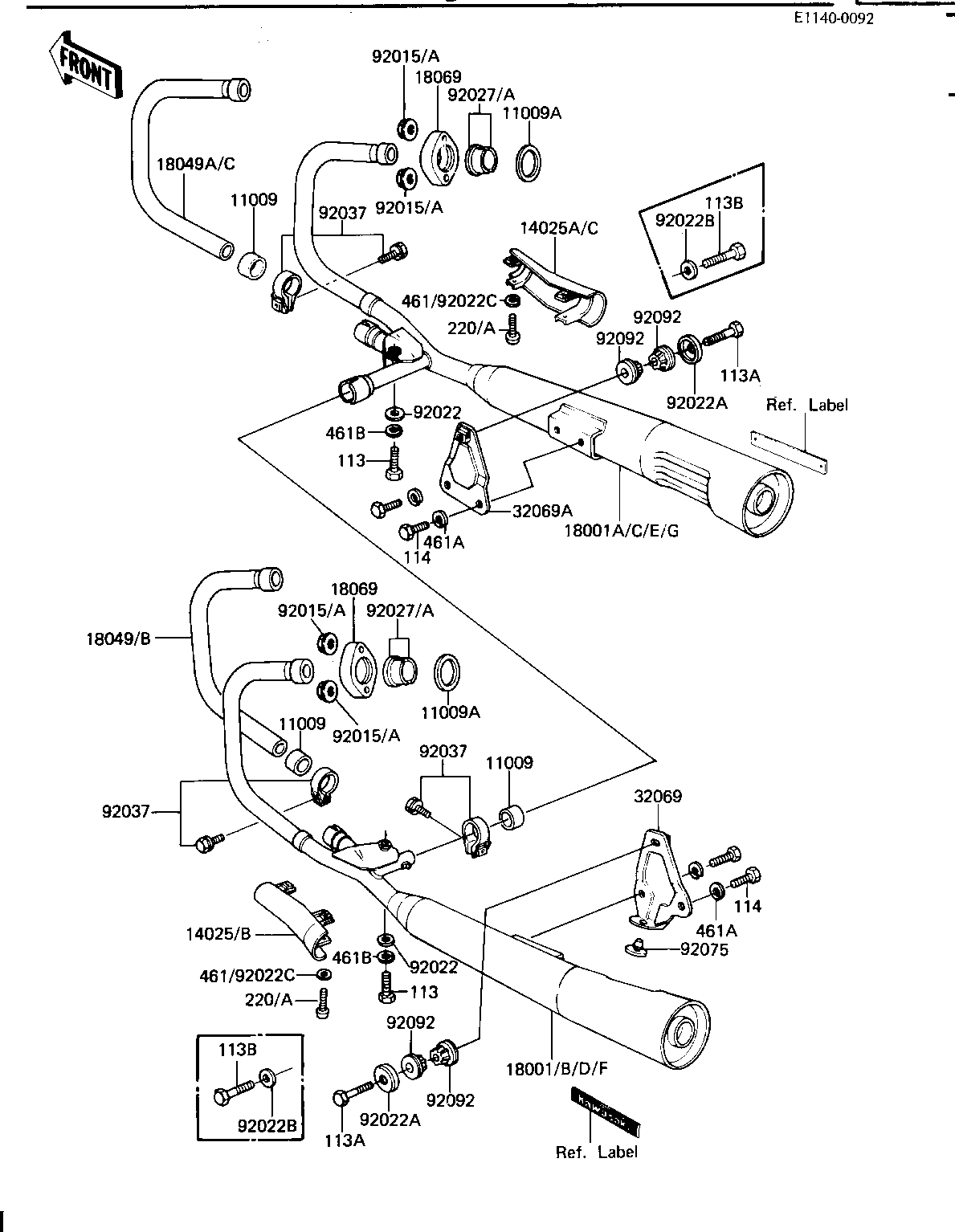

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,MANIFOLD EXHAU | 11009 | 11060-1068 | 3 | ||
| GASKET,EXHAUST PIPE H | 11009A | 11009-1906 | 4 | ||
| COVER,MUFFLER,LH,BLCK | 14025 | 14025-1353 | 1 | ||
| COVER,MUFFLER,RH,BLCK | 14025A | 14025-1354 | 1 | ||
| MUFFLER,LH,BLACK | 18001 | 18001-1318 | 1 | US | |
| MUFFLER,RH,BLACK | 18001A | 18001-1319 | 1 | US | |
| 18001-1320 (Canada) | 18001B | 18001-1236 | 1 | CN | |
| 18001-1321 (Canada) | 18001C | 18001-1237 | 1 | CN | |
| 18001-1320 (Canada) | 18001D | 18001-1263 | 1 | CN | |
| 18001-1321 (Canada) | 18001E | 18001-1264 | 1 | CN | |
| PIPE-EXHAUST,#2,BLACK | 18049 | 18049-1196 | 1 | ||
| PIPE-EXHAUST,#3,BLACK | 18049A | 18049-1197 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 18069 | 18069-1049 | 4 | ||
| BRACKET-MUFFLER,LH | 32069 | 32069-1066 | 1 | ||
| BRACKET-MUFFLER,RH | 32069A | 32069-1067 | 1 | ||
| NUT-8MM | 92015 | 92015-1143 | 8 | ||
| WASHER,PLAIN | 92022 | 92022-1022 | 2 | ||
| WASHER,PLAIN | 920223 | 92022-289 | 2 | ||
| COLLAR,EXHAUST PIPE | 92027 | 92027-1300 | 8 | ||
| CLAMP,MUFFLER,BLACK | 92037 | 92037-1270 | 3 | ||
| DAMPER RUBB MAIN STAD | 92075 | 92075-015 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 92092 | 92092-4013 | 4 | ||
| UNAVAILABLE IN PRICE BOOK | 113 | 11381080 | 2 | ||
| BOLT-HEX HEAD,10X55 | 113B | 113N1055 | 2 | ||
| BOLT-SMALL-UPSET,8X16 | 114 | 115G0816 | 4 | ||
| SCREW PAN HEAD 6X45 | 220 | 220B0645 | 4 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 4 | ||
| WASHER SPRING 8MM | 461A | 461F0800 | 4 | ||
| WASHER SPRING 10MM | 461B | 461F1000 | 2 |
