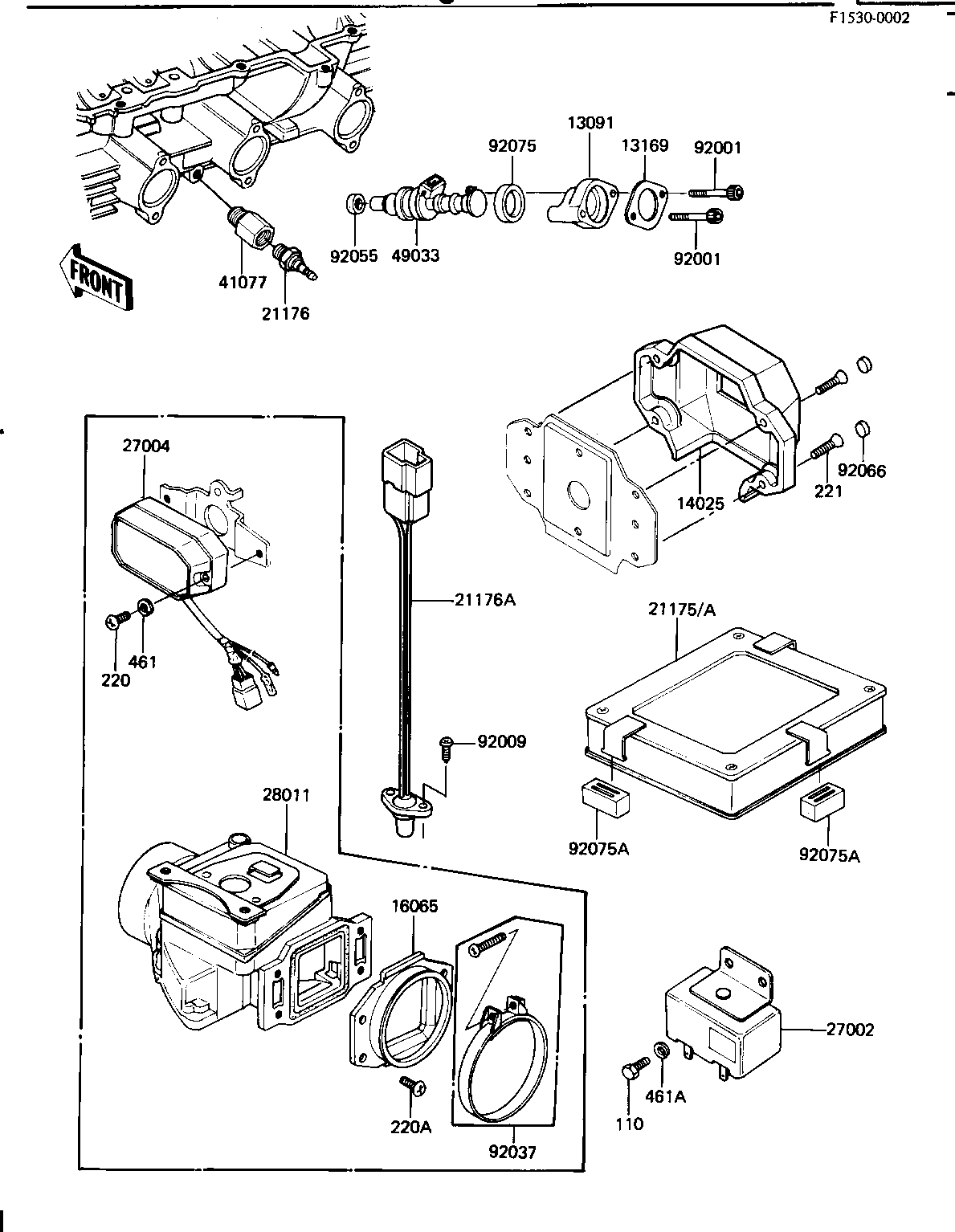

1981 GPz - INJECTORS/ELECTRICAL EQUIPMENT
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER,FUEL INJECTOR | 13091 | 13091-1092 | 4 | ||
| PLATE,FUEL INJECTOR,B | 13169 | 13169-1434 | 4 | ||
| HOLDER,AIR FLOW METER | 16065 | 16065-1038 | 1 | ||
| CONTROL UNIT-ELECTRON | 21175 | 21175-1003 | 1 | ||
| SENSOR-TEMPERATURE | 21176 | 21176-1002 | 1 | ||
| RELAY ASSY | 27002 | 27002-1007 | 1 | ||
| SWITCH-ASSY,THROTTLE | 27004 | 27004-1009 | 1 | ||
| METER,AIR FLOW | 28011 | 28011-1010 | 1 | ||
| INJECTOR,FUEL | 49033 | 49033-1001 | 4 | ||
| BOLT-SOCKET | 92001 | 120S0540 | 8 | ||
| CLAMP,ID=80 | 92037 | 92037-1237 | 1 | ||
| INSULATOR,FUEL INJECT | 92055 | 92055-1082 | 4 | ||
| INSULATOR,FUEL INJECT | 92075 | 92075-1240 | 4 | ||
| DAMPER,CONTROL UNIT | 92075A | 92075-1312 | 3 | ||
| BOLT-UPSET,6X12 | 110 | 112G0612 | 2 | ||
| SCREW-PAN-CRSOSS,4X12 | 220 | 220B0412 | 2 | ||
| SCREW PAN HEAD 6X12 | 220A | 220B0612 | 4 | ||
| WASHER SPRING 4MM | 461 | 461F0400 | 2 | ||
| WASHER SPRING 6MM | 461A | 461F0600 | 2 |
| HOLDER,FUEL INJECTOR | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PLATE,FUEL INJECTOR,B | |
| REF # | 13169 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| HOLDER,AIR FLOW METER | |
| REF # | 16065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CONTROL UNIT-ELECTRON | |
| REF # | 21175 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SENSOR-TEMPERATURE | |
| REF # | 21176 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RELAY ASSY | |
| REF # | 27002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH-ASSY,THROTTLE | |
| REF # | 27004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| METER,AIR FLOW | |
| REF # | 28011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INJECTOR,FUEL | |
| REF # | 49033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| CLAMP,ID=80 | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,FUEL INJECT | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,FUEL INJECT | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,CONTROL UNIT | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X12 | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CRSOSS,4X12 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X12 | |
| REF # | 220A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 4MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 461A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
