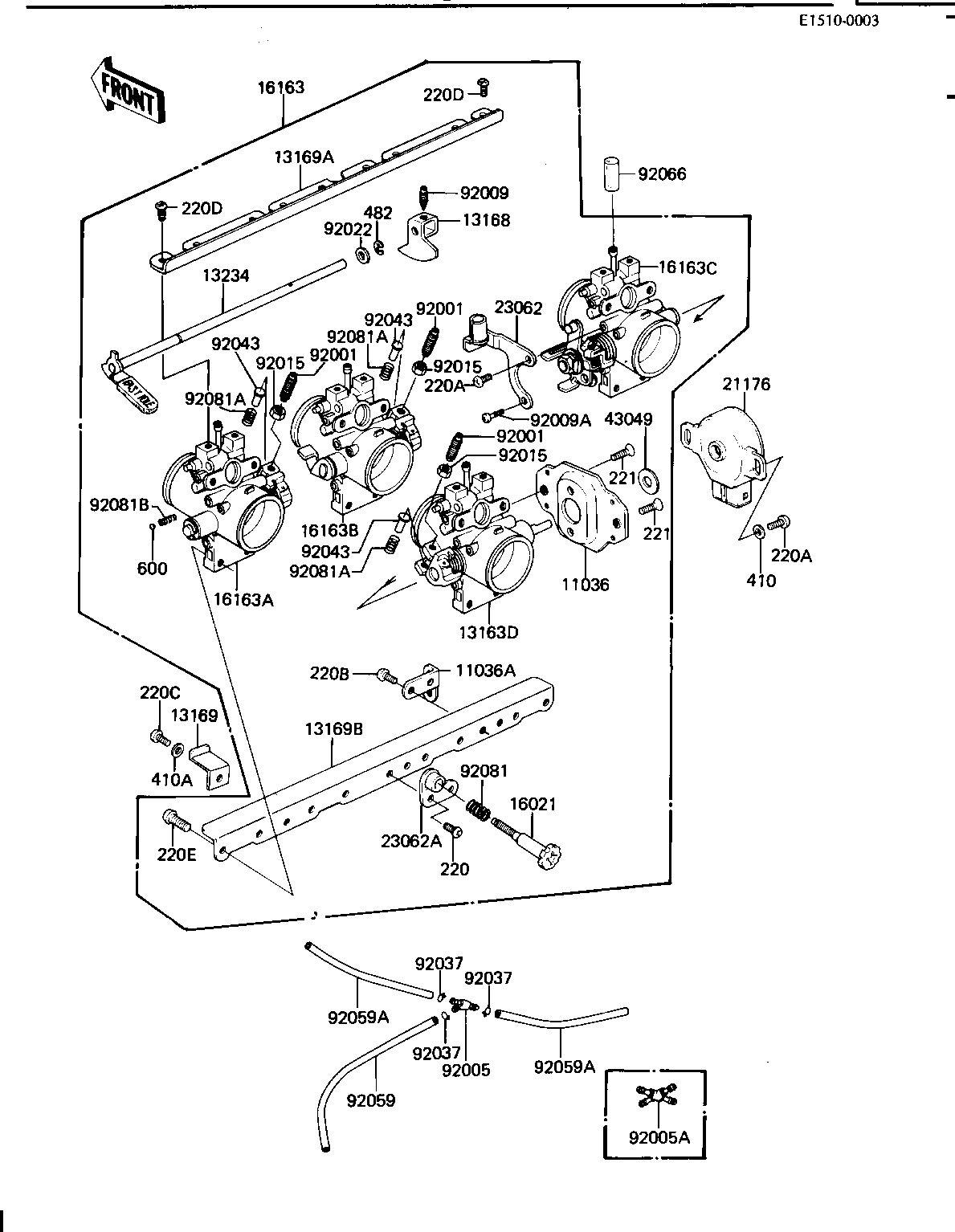

1982 GPz - THROTTLE ASSY

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-A,THROTTLE SE 11036 11036-1481 1
BRACKET-A,STAY LWR 11036A 11036-1491 1
LEVER,FAST IDLE 13168 13168-1118 1
PLATE,PROTECTOR 13169 13169-1441 1
PLATE,THROTTLE STAY,U 13169A 13169-1521 1
PLATE,THROTTLE STAY,L 13169B 13169-1522 1
SHAFT-COMP,FAST IDLE 13234 13234-1008 1
SCREW,THROTTLE STOP 16021 16021-1010 1
THROTTLE-ASSY 16163 16163-1013 1
THROTTLE-ASSY,LH,OUTS 16163A 16163-1016 1
THROTTLE-ASSY,LH,INSI 16163B 16163-1017 1
THROTTLE-ASSY,RH,INSI 16163C 16163-1018 1
THROTTLE-ASSY,RH,OUTS 16163D 16163-1019 1
SENSOR,THROTTLE 21176 21176-1004 1
BRACKET-COMP,TH CABLE 23062 23062-1026 1
BRACKET,IDLING ADJUST 23062A 23062-1027 1
PACKING,THROTTLE SENS 43049 43049-1021 1
BOLT,ADJUSTING 92001 92001-1447 3
FITTING,TUBE 92005 92005-1017 1 CN
FITTING,FUEL,X-TYPE 92005A 92005-1051 1 US
SCREW,FAST IDLE LEVER 92009 92009-1147 1
SCREW,THROTTLE CABLE 92009A 92009-1148 1
NUT,THROTTLE VLV ADST 92015 92015-1119 3
WASHER,PLAIN 92022 16039-019 1
CLAMP-PIPE 92037 92037-072 3
PIN,THROTTLE VALVE 92043 92043-1079 3
TUBE,4X9X290 92059 92059-1043 1
TUBE,VACUUM,LONG 92059A 92059-1162 2
RUBBER PLUG 92066 92068-006 2
SPRING,THROTTLE STOP 92081 16022-017 1
SPRING,THROTTLE VALVE 92081A 92081-1259 3
SPRING,FAST IDLE SHFT 92081B 92081-1260 1
SCREW PAN HEAD 5X6 220 220B0506A 1
SCREW PAN HEAD 5X10 220A 220B0510 3
SCREW-PAN-CROSS 220B 220C0506 2
SCREW-PAN-CROS 220C 220C0508 1
SCREW-PAN-CROS 220D 220C0510 8
UNAVAILABLE IN PRICE BOOK 220E 220C061 8
SCREW CNTSNK HD 5X10 221 221B0510A 2
WASHER PLAIN 5MM 410 410B0500 2
WASHER PLAIN 410A 410F0500 1
CIRCLIP-TYPE-E 482 482L4000 1
BALL,STEEL,1/8" 600 600A0400 1
