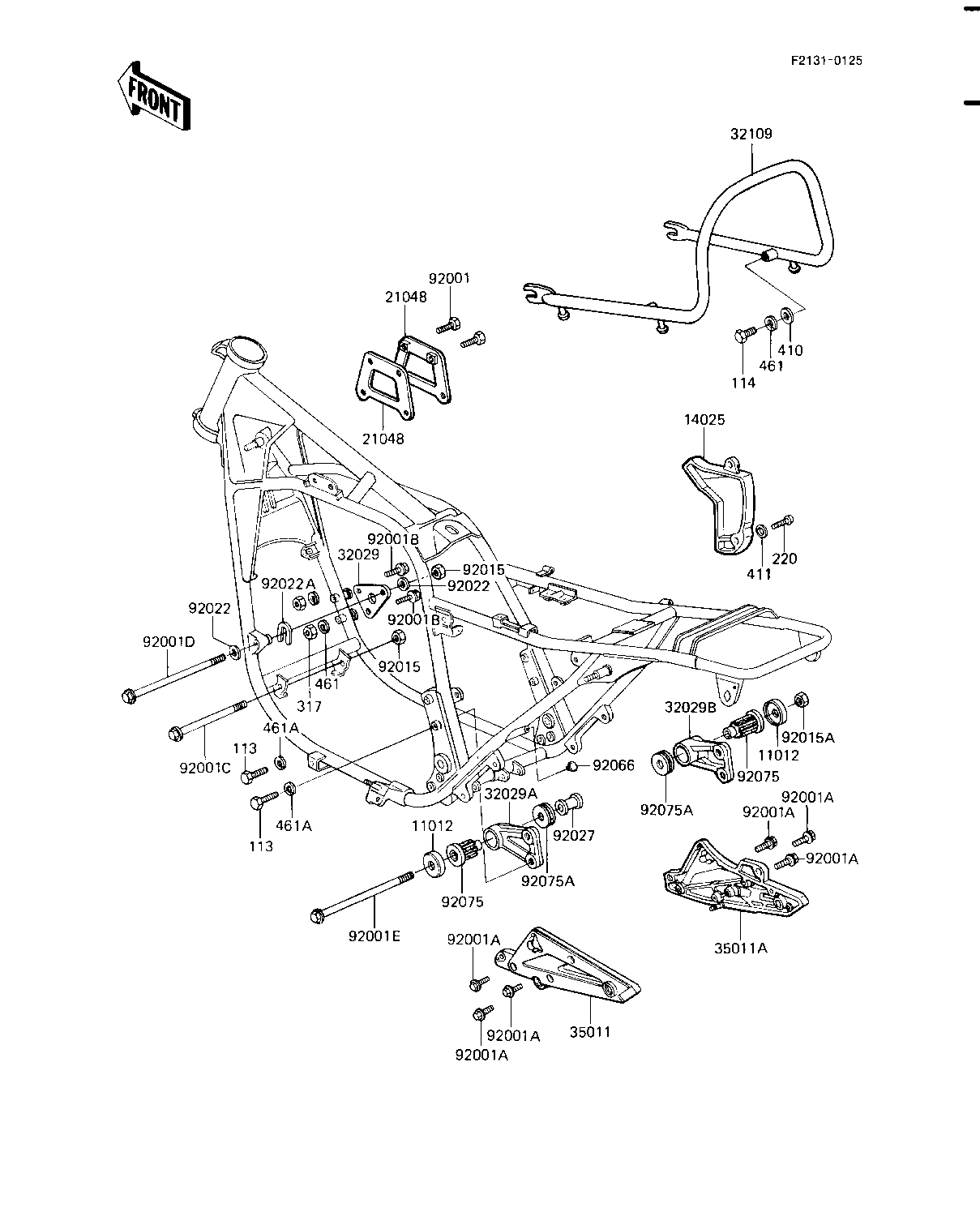

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,ENG MOUNT DAMPER | 11012 | 11012-1182 | 2 | ||
| COVER,ORNAMENT,RH | 14025 | 14025-1375 | 1 | ||
| PLATE,IGNITION COIL | 21048 | 21048-1001 | 2 | ||
| BRACKET-ENGINE | 32029 | 32029-1142 | 1 | ||
| BRACKET-ENGINE,RR,LH | 32029A | 32029-1163 | 1 | ||
| BRACKET-ENGINE,RR,RH | 32029B | 32029-1164 | 1 | ||
| GRIP-FRAME | 32109 | 32109-1021 | 1 | ||
| STAY,MUFFLER,LH | 35011 | 35011-1071 | 1 | ||
| STAY,MUFFLER,RH | 35011A | 35011-1072 | 1 | ||
| BOLT,HEX HEAD,6MM | 92001 | 92001-137 | 4 | ||
| BOLT,FLANGED,8X35 | 92001A | 92001-1577 | 6 | ||
| BOLT-FLANGE | 92001B | 92001-1582 | 2 | ||
| BOLT | 92001C | 92001-1585 | 1 | ||
| BOLT,FLANGED,10X320,B | 92001D | 92001-1624 | 1 | ||
| BOLT,FLANGED,12X320 | 92001E | 92001-1594 | 1 | ||
| NUT,10MM | 92015 | 92015-1429 | 2 | ||
| NUT-LOCK,12MM | 92015A | 92019-009 | 1 | ||
| WASHER,PLAIN | 92022 | 92022-1022 | 2 | ||
| WASHER,U FORMED | 92022A | 92022-1259 | 1 | ||
| COLLAR,13X25X39.5 | 92027 | 92027-1329 | 1 | ||
| PLUG,FRAME END | 92066 | 92066-1034 | 1 | ||
| DAMPER,ENG MOUNT,RR,I | 92075 | 92075-1330 | 2 | ||
| DAMPER,ENG MOUNT,RR,S | 92075A | 92075-1331 | 2 | ||
| BOLT-SMALL-FINE,10X45 | 113 | 113G1045 | 4 | ||
| BOLT-SMALL-UPSET,8X16 | 114 | 115G0816 | 2 | ||
| SCREW-PAN-CROS, 6X14 | 220 | 220C0614 | 2 | ||
| NUT,8M/M | 317 | 317B0800 | 2 | ||
| WASHER PLAIN 8MM | 410 | 410B0800 | 2 | ||
| WASHER PLAIN | 411 | 411F0600 | 2 | ||
| WASHER SPRING 8MM | 461 | 461F0800 | 4 | ||
| WASHER SPRING 10MM | 461A | 461F1000 | 4 |
