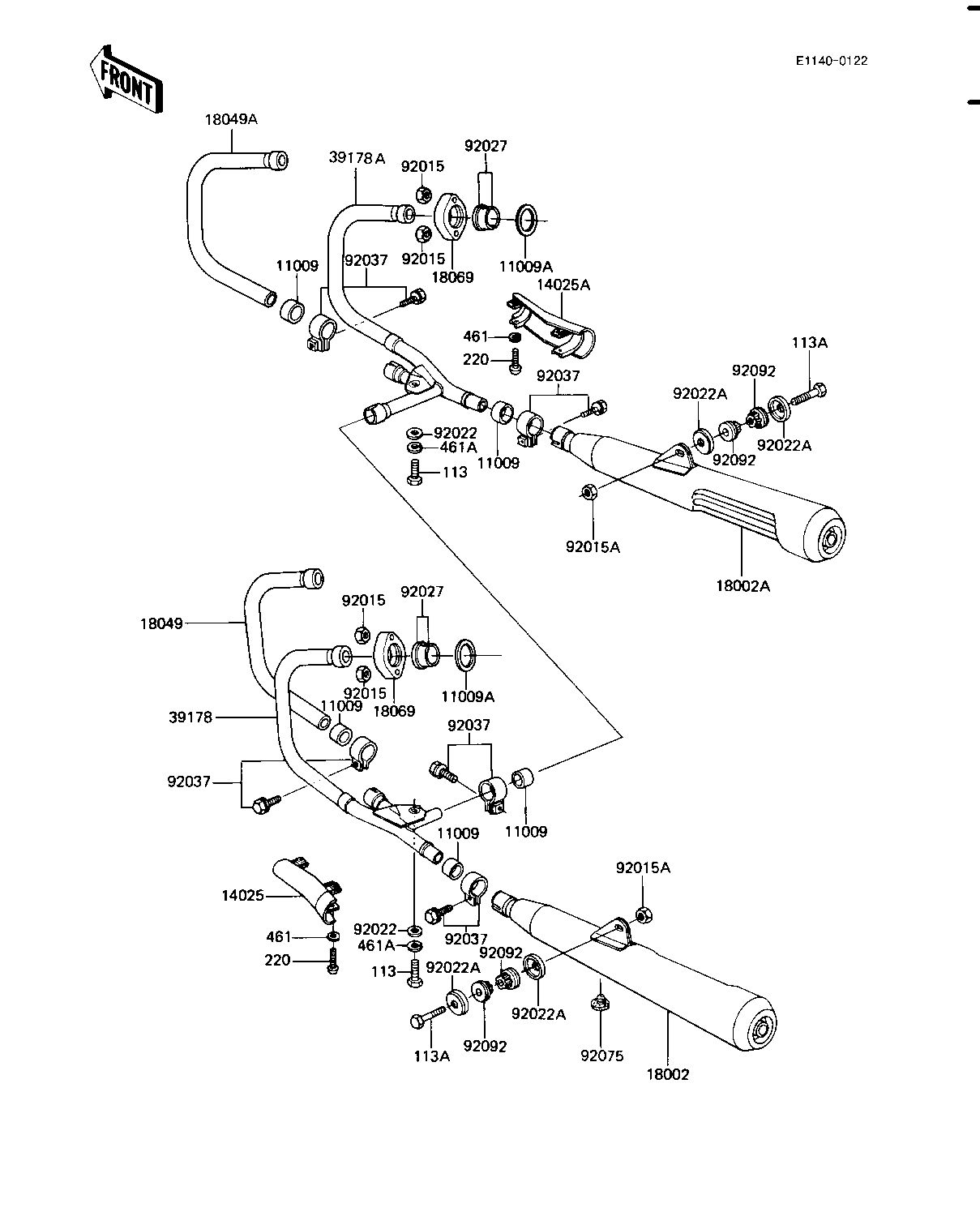

1982 Shaft - MUFFLERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,MANIFOLD EXHAU 11009 11060-1068 5
GASKET,EXHAUST PIPE H 11009A 11009-1906 4
COVER,MUFFLER,LH 14025 14025-1355 1
COVER,MUFFLER,RH 14025A 14025-1356 1
BODY-COMP-MUFFLER,LH 18002 18002-1418 1
BODY-COMP-MUFFLER,RH 18002A 18002-1419 1
PIPE-EXHAUST,#2 18049 18049-1188 1
PIPE-EXHAUST,#3 18049A 18049-1189 1
HOLDER-EXHAUST PIPE 18069 18069-1015 4
MANIFOLD-EXHAUST,LH 39178 39178-1014 1
MANIFOLD-EXHAUST,RH 39178A 39178-1015 1
NUT-8MM 92015 92015-1143 8
NUT,LOCK,10MM 92015A 92019-021 2
WASHER,PLAIN 92022 92022-1022 2
WASHER,CUP TYPE 92022A 92022-1270 4
COLLAR,EXHAUST PIPE 92027 92027-1300 8
CLAMP,MUFFLER 92037 92037-1258 5
DAMPER RUBBER,MAIN ST 92075 92075-1002 1
BUSHING-RUBBER 92092 92092-1013 4
BOLT HEX HEAD 10X80 113 113B1080 2
BOLT-HEX HEAD,10X55 113A 113N1055 2
SCREW PAN HEAD 6X45 220 220B0645 4
WASHER SPRING 6MM 461 461F0600 4
WASHER SPRING 10MM 461A 461F1000 2
