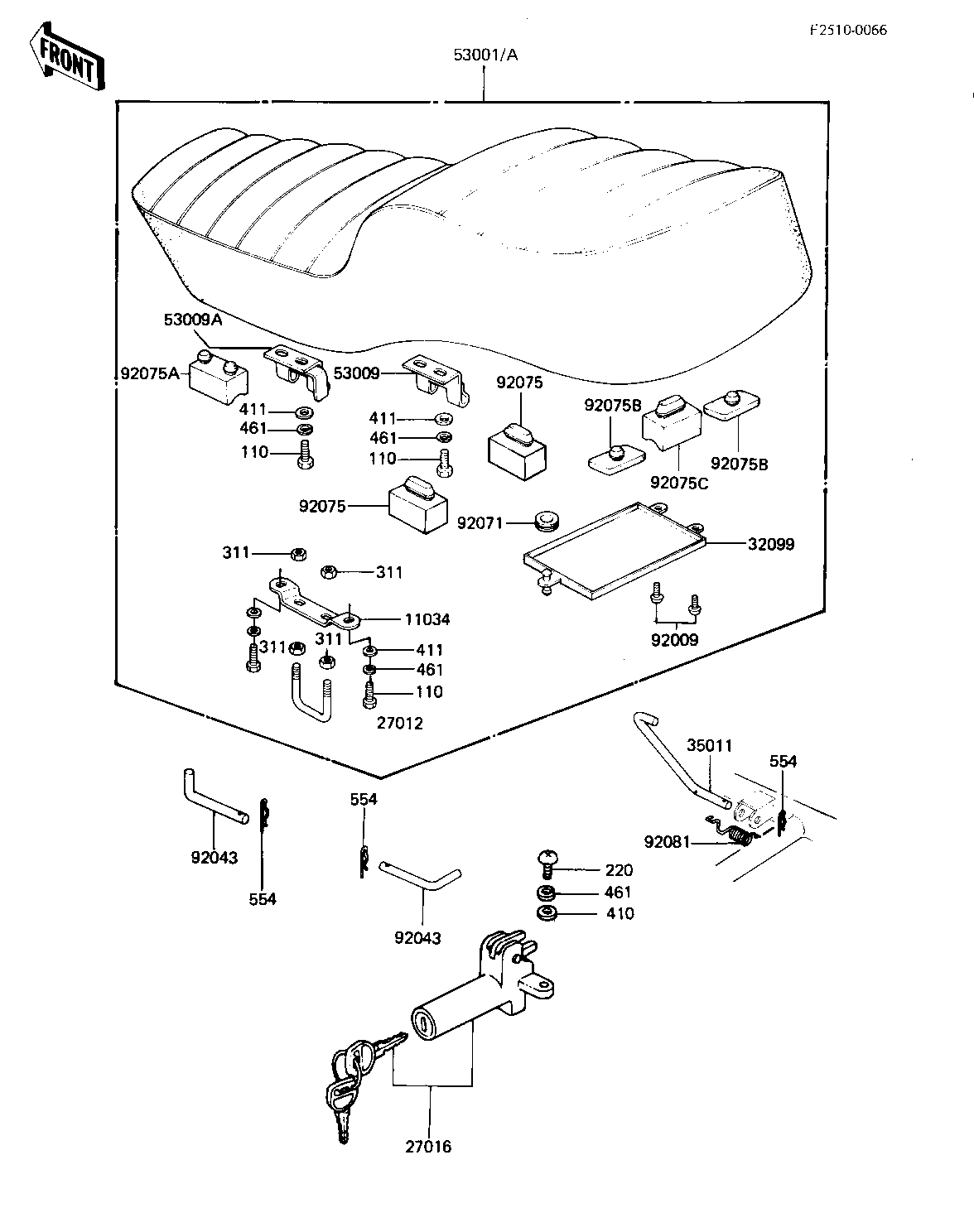

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SEAT CATCH 11034 11034-1329 1
CATCH, SEAT 27012 53056-002 1
LOCK ASSY,SEAT 27016 27016-5015 1
CASE 32099 32099-011 1
STAY,SEAT STAND 35011 35011-1034 1
SEAT-ASSY 53001A 53001-1227 1
HINGE,BLACK 53009 53009-017-10 1
HINGE,SEAT,FR 53009A 53009-1029 1
SCREW 92009 92009-1043 2
PIN,SEAT PIVOT 92043 92043-1021 2
GROMMET 92071 92071-056 1
DAMPER RUBBER 92075 92075-099 3
DAMPER RUBBER,SEAT 92075A 92075-1133 1
DAMPER,SEAT 92075B 92075-1153 2
DAMPER RUBBER-SEAT 92075C 92075-156 1
SPRING,SEAT HOOK 92081 92081-1053 1
BOLT-UPSET 6X14 110 112B0614 6
SCREW PAN HEAD 6X14 220 220B0614 1
NUT 6MM 311 311B0600 4
WASHER PLAIN 6MM 410 410B0600 1
WASHER PLAIN 6MM 411 411B0600 6
WASHER SPRING 6MM 461 461F0600 7
PIN,SNAP 554 554A0600 3
