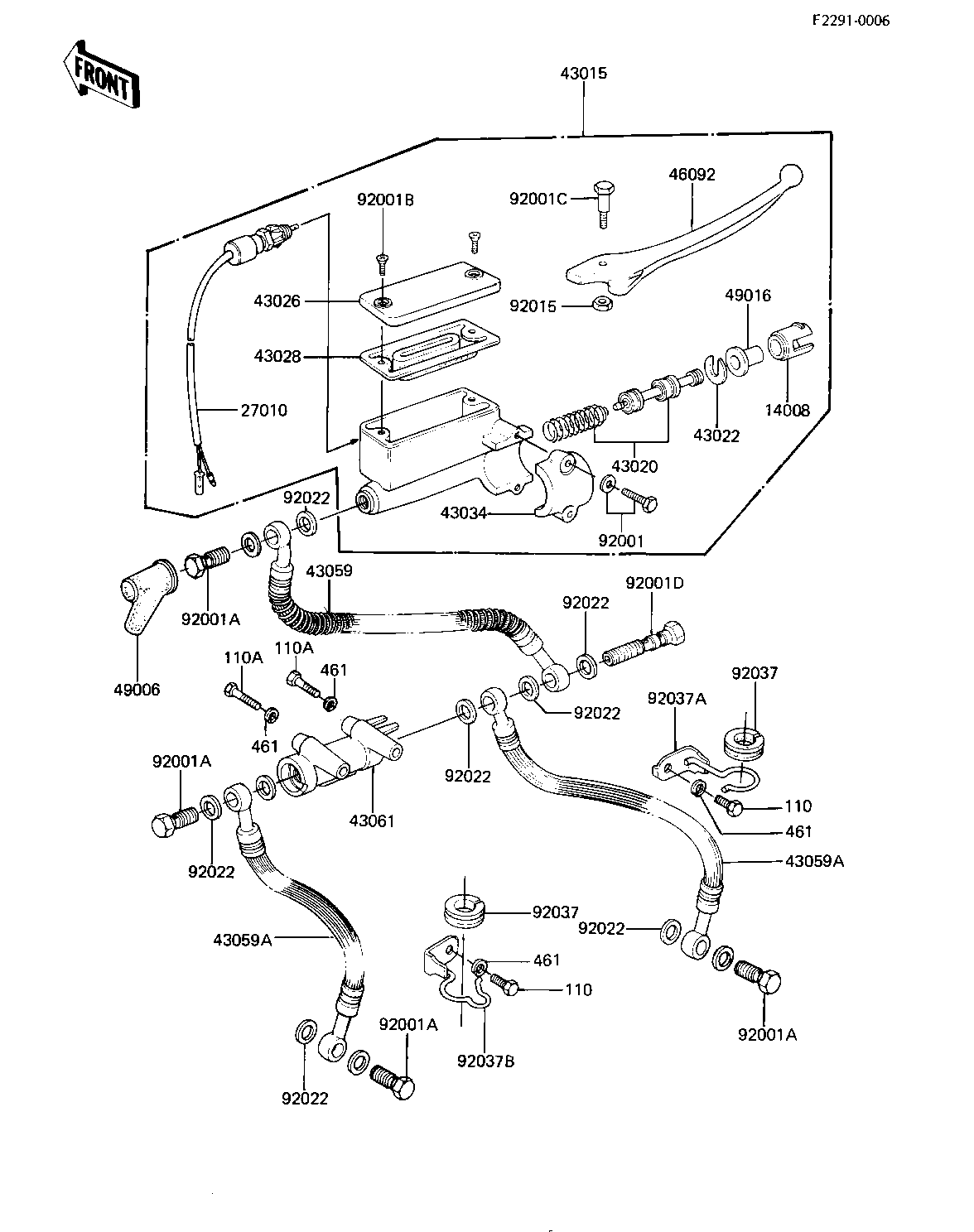

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LINER,PISTON | 14008 | 14008-1007 | 1 | ||
| SWITCH,BRAKE | 27010 | 27010-1028 | 1 | ||
| CYLINDER ASSY,FR | 43015 | 43015-1046 | 1 | ||
| PISTON-COMP-BRAKE | 43020 | 43020-1023 | 1 | ||
| STOPER,PISTON | 43022 | 43022-1001 | 1 | ||
| CAP,OIL CUP | 43026 | 43026-1006 | 1 | ||
| DIAPHRAGM | 43028 | 43028-1008 | 1 | ||
| HOLDER,MASTER CYLIND | 43034 | 43034-1001 | 1 | ||
| HOSE-BRAKE | 43059 | 43059-1085 | 1 | ||
| HOSE-BRAKE,FR,L=600 | 43059A | 43059-1192 | 2 | ||
| JOINT,FR BRAKE HOSE | 43061 | 43061-1002 | 1 | ||
| LEVER,FRONT BRAKE | 46092 | 46092-1012 | 1 | ||
| BOOT,DUST | 49006 | 49006-1041 | 1 | ||
| DUST COVER | 49016 | 49016-1010 | 1 | ||
| BOLT,HEX HEAD,6X25 | 92001 | 43033-003 | 2 | ||
| BOLT,OIL,L=23 | 92001A | 92002-1888 | 4 | ||
| SCREW,COUNTERSUNK HE | 92001B | 92001-1055 | 2 | ||
| BOLT,CLUTCH LEV FITT | 92001C | 92001-1056 | 1 | ||
| BOLT | 92001D | 92002-1909 | 1 | ||
| NUT 6MM | 92015 | 312B0600 | 1 | ||
| WASHER-OIL BOLT | 92022 | 43067-001 | 11 | ||
| DAMPER RUBBER,CYL HS | 92037 | 43064-006 | 2 | ||
| CLAMP | 92037A | 92037-1218 | 1 | ||
| CLAMP | 92037B | 92037-1232 | 1 | ||
| BOLT-UPSET,6X12 | 110 | 112G0612 | 2 | ||
| BOLT-UPSET,6X40 | 110A | 112G0640 | 2 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 4 |
| LINER,PISTON | |
| REF # | 14008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,BRAKE | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CYLINDER ASSY,FR | |
| REF # | 43015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON-COMP-BRAKE | |
| REF # | 43020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STOPER,PISTON | |
| REF # | 43022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,OIL CUP | |
| REF # | 43026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DIAPHRAGM | |
| REF # | 43028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,MASTER CYLIND | |
| REF # | 43034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-BRAKE | |
| REF # | 43059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-BRAKE,FR,L=600 | |
| REF # | 43059A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| JOINT,FR BRAKE HOSE | |
| REF # | 43061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER,FRONT BRAKE | |
| REF # | 46092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOOT,DUST | |
| REF # | 49006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUST COVER | |
| REF # | 49016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,6X25 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,OIL,L=23 | |
| REF # | 92001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,COUNTERSUNK HE | |
| REF # | 92001B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,CLUTCH LEV FITT | |
| REF # | 92001C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92001D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-OIL BOLT | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 11 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,CYL HS | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X12 | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X40 | |
| REF # | 110A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
