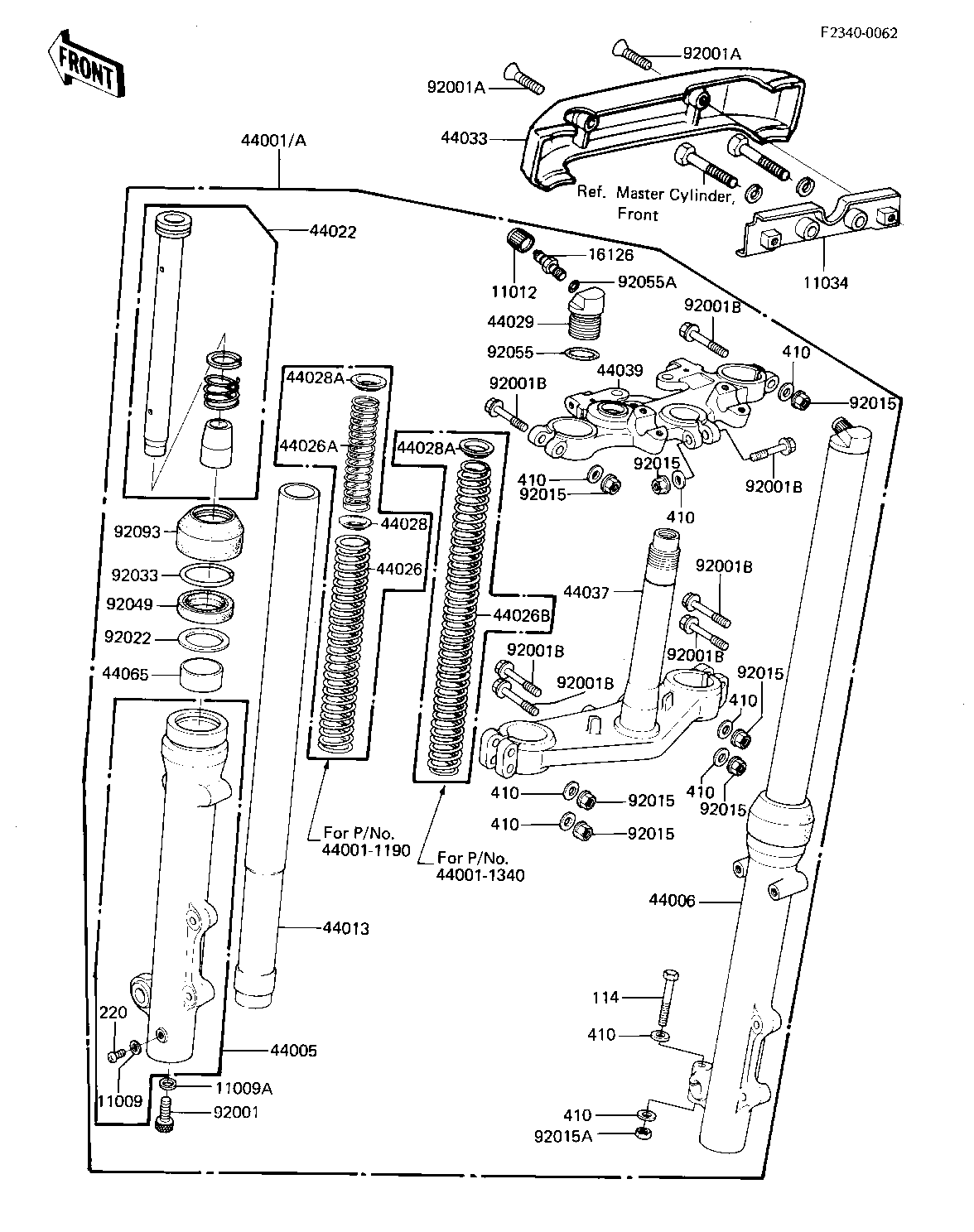

1982 LTD - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET FORK DRAIN PL 11009 44045-002 2
GASKET,FORK CYLINDER 11009A 44045-057 2
CAP,AIR VALVE 11012 11012-1241 2
BRACKET,FORK COVER 11034 11034-1842 1
VALVE AIR 16126 16126-1052 2
FORK-FRONT 44001 44001-1340 1 (SUBSTITUTES
FORK-FRONT 44001 44001-1340 1 (SUBSTITUTES
FORK-FRONT 44001A 44001-1340 1
TUBE,LH,FORK OUTER 44005 44005-1067 1
TUBE,RH,FORK OUTER 44006 44006-1067 1
PIPE-FORK INNER 44013 44013-1047 2
CYLINDER-FORK 44022 44022-1045 2
SPRING-FRONT FORK 44026B 44026-1189 2
GUIDE,FORK SPRING 44028A 44028-1004 2
SEAT-FORK SPRING 44029 44029-1021 2
COVER,FORK 44033 44033-1054 1
HOLDER-FORK UNDER 44037 44037-1057 1
HOLDER-FORK UPPER 44039 44039-1036 1
BUSHING,FORK OUT PIP 44065 44065-1012 2
BOLT-FORK CYLINDER 92001 44041-040 2
SCREW-CSK-RD-CROS 92001A 222C0518 2
BOLT,FLANGED,8X57 92001B 92001-1358 7
NUT-8MM 92015 92015-1022 7
NUT,LOCK,8MM 92015A 92015-1124 1
WASHER,FORK OUT PIPE 92022 92022-1262 2
SNAP RING,FORK OUTER 92033 92033-1047 2
SEAL-OIL,FORK 92049 92049-1102 2
"0" RING,FORK TOP 92055 92055-1051 2
"0" RING,AIR VALVE 92055A 92055-1094 2
SEAL 92093 92093-1051 2
BOLT,HEX HEAD,8X55 114 114G0855 1
SCREW PAN HEAD 4X8 220 220B0408 2
WASHER PLAIN 8MM 410 410B0800 9
