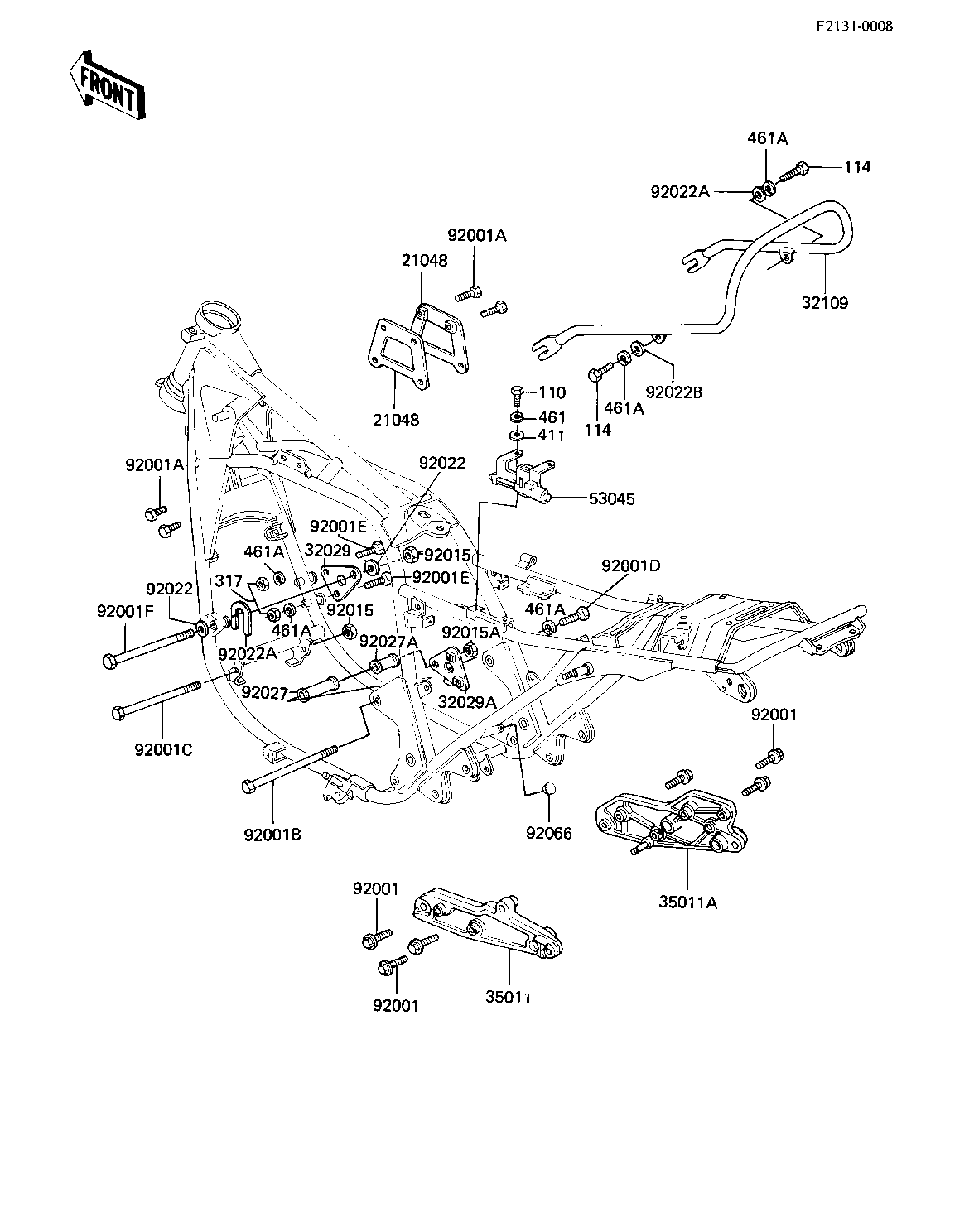

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLATE,IGNITION COIL | 21048 | 21048-1001 | 2 | ||
| BRACKET-ENGINE | 32029 | 32029-1142 | 1 | ||
| BRACKET-ENGINE | 32029A | 32029-1143 | 1 | ||
| GRIP-FRAME | 32109 | 32109-1027 | 1 | ||
| STAY,MUFFLER,LH | 35011 | 35011-1086 | 1 | ||
| STAY,MUFFLER,RH | 35011A | 35011-1087 | 1 | ||
| HOOK ASSY,HELMET | 53045 | 53045-1001 | 1 | ||
| BOLT,8X28 | 92001 | 92001-1095 | 6 | ||
| BOLT,HEX HEAD,6MM | 92001A | 92001-137 | 4 | ||
| BOLT,FLANGED,12X285 | 92001B | 92001-1655 | 1 | ||
| BOLT | 92001C | 92001-1585 | 1 | ||
| BOLT,FLANGED,8X45 | 92001D | 92001-1579 | 2 | ||
| BOLT-FLANGE | 92001E | 92001-1582 | 2 | ||
| BOLT,FLANGED,10X320, | 92001F | 92001-1624 | 1 | ||
| NUT,10MM | 92015 | 92015-1429 | 2 | ||
| NUT-LOCK,12MM | 92015A | 92019-009 | 1 | ||
| WASHER,PLAIN | 92022 | 92022-1022 | 2 | ||
| WASHER,U FORMED | 92022A | 92022-1259 | 1 | ||
| WASHER,8.5X20X1.6 | 92022B | 92022-1561 | 2 | ||
| COLLAR,13X25X54 | 92027 | 92027-1310 | 1 | ||
| COLLAR,13X25X29.5 | 92027A | 92027-1311 | 1 | ||
| PLUG,FRAME END | 92066 | 92066-1034 | 1 | ||
| BOLT-UPSET,6X12 | 110 | 112G0612 | 2 | ||
| BOLT-SMALL,8X18 | 114 | 114N0818 | 2 | ||
| NUT,8M/M | 317 | 317B0800 | 2 | ||
| WASHER PLAIN 6MM | 411 | 411B0600 | 2 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 2 | ||
| WASHER SPRING 8MM | 461A | 461F0800 | 6 |
| PLATE,IGNITION COIL | |
| REF # | 21048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE | |
| REF # | 32029 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE | |
| REF # | 32029A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP-FRAME | |
| REF # | 32109 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,MUFFLER,LH | |
| REF # | 35011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,MUFFLER,RH | |
| REF # | 35011A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOOK ASSY,HELMET | |
| REF # | 53045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,8X28 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,6MM | |
| REF # | 92001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,12X285 | |
| REF # | 92001B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92001C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X45 | |
| REF # | 92001D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGE | |
| REF # | 92001E |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X320, | |
| REF # | 92001F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,10MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT-LOCK,12MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,U FORMED | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,8.5X20X1.6 | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,13X25X54 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,13X25X29.5 | |
| REF # | 92027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG,FRAME END | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X12 | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-SMALL,8X18 | |
| REF # | 114 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,8M/M | |
| REF # | 317 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 411 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 461A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
