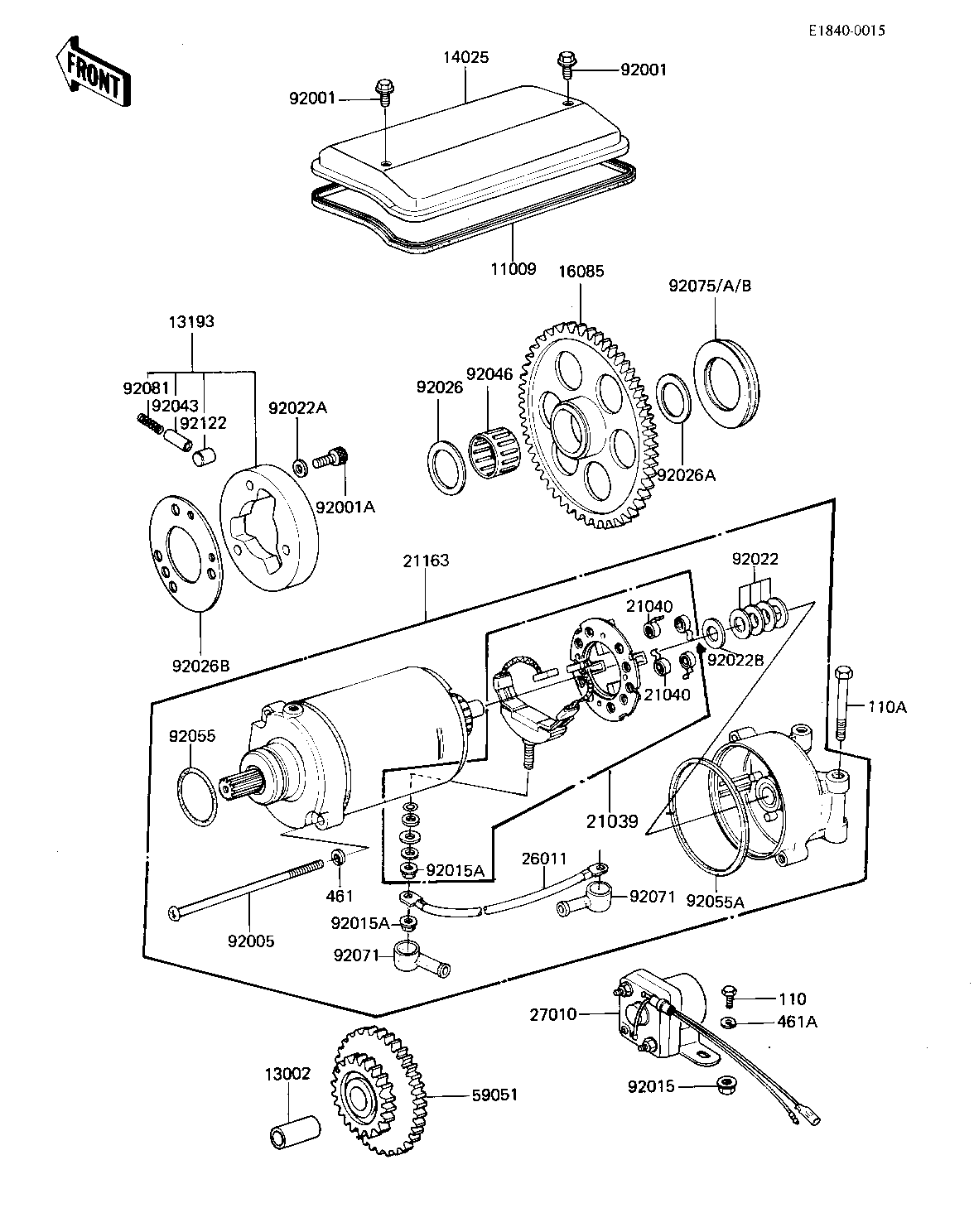

1982 LTD - STARTER MOTOR/STARTER CLUTCH (KZ1000-K2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,START MOTOR CV 11009 21166-001 1
PIN-PISTON 13002 13002-007 1
CLUTCH ASSY,STARTING 13193 13193-1006 1
COVER 14025 14025-1245 1
GEAR,STARTING CLUTCH 16085 16085-1012 1
BRUSH SET,CARBON 21039 21039-1005 1
SPRING,CARBON BRUSH 21040 21040-1002 4
STARTER-ELECTRIC 21163 21163-1016 1
WIRE-LEAD,START MOTOR 26011 26011-1135 1
SWITCH,MAGNETIC 27010 27010-1047 1
GEAR,STARTING MOTOR 59051 21167-002 1
BOLT,6X10 92001 92001-1151 2
BOLT SOCKET 8X16 92001A 92003-104 3
SCREW,PAN HEAD,6X110 92009 21015-005 2
NUT-6MM 92015 92015-1078 2
NUT-6MM 92015A 92015-1195 2
WASHER,THRUST,0.2T 92022 21025-011 4
WASHER,PLAIN 92022A 92022-1108 3
WASHER,THRUST,0.8T 92022B 92022-1132 1
SPACER 92026 92026-1031 1
SPACER 92026A 92026-1033 1
PLATE,CLUTCH STARTER 92026B 92026-112 1
PIN 92043 92043-087 3
BEARING,NEEDLE,K25302 92046 92046-1022 1
"0" RING,STARTING MTR 92055 21027-004 1
"0" RING,STARTER MOTR 92055A 92055-1086 2
GROMMET,CORD 92071 21017-017 2
DAMPER RUBBER,6.3T 92075 92075-1129 AR
DAMPER RUBBER,7.3T 92075A 92075-1130 AR
DAMPER RUBBER,8.3T 92075B 92075-1131 AR
SPRING 92081 92081-110 3
PIN 92122 92122-001 3
BOLT HEX HEAD 6X12 110 110B0612 2
BOLT-HEX HEAD,6X55 110A 110B0655 1
WASHER SPRING 5MM 461 461F0500 2
WASHER SPRING 6MM 461A 461F0600 2
