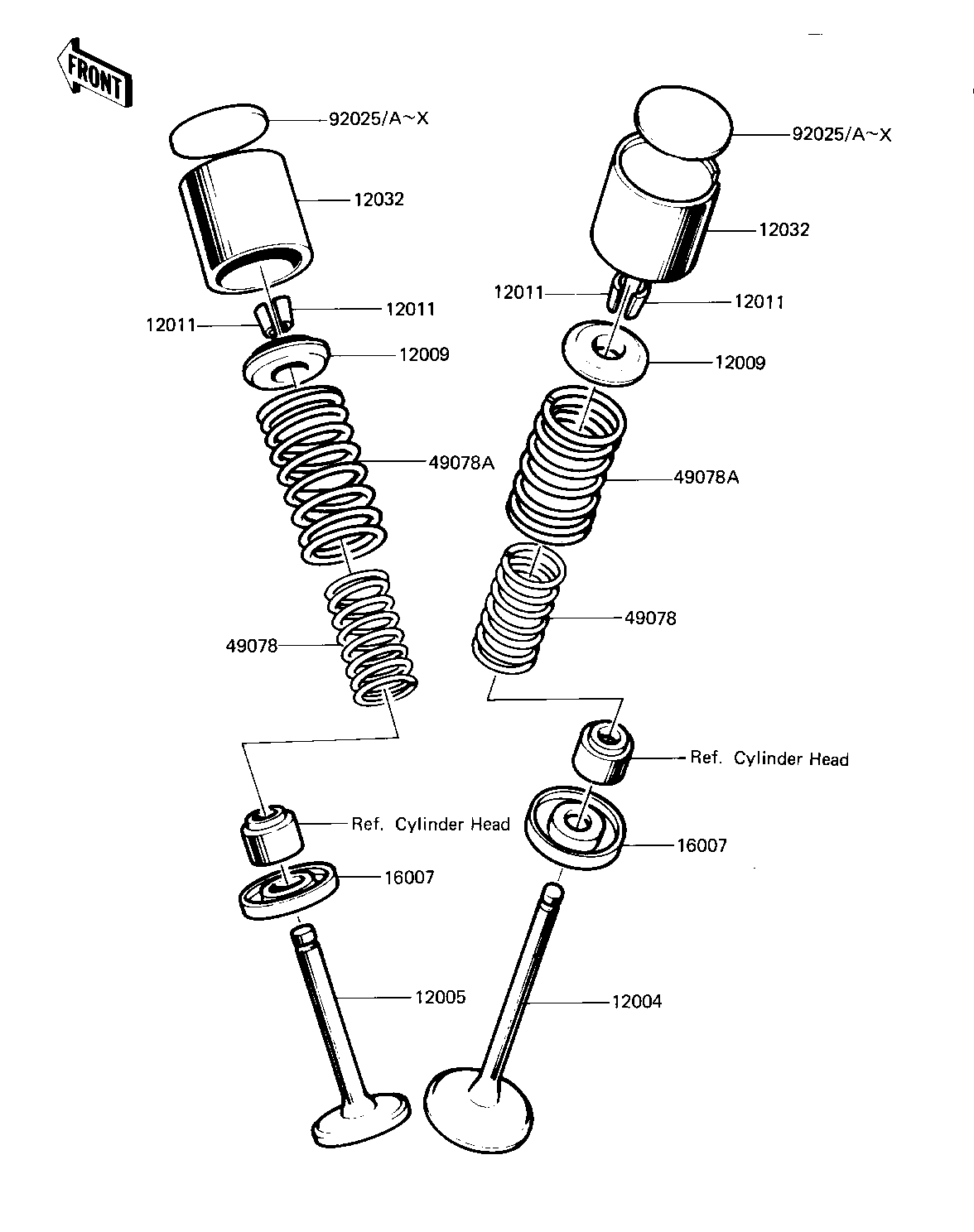

1982 LTD - VALVES

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE INTAKE 12004 12004-1013 4
VALVE EXHAUST 12005 12005-1011 4
RETAINER,VALVE SPRIN 12009 12009-005 8
SPLIT KEEPER 12011 12011-004 16
TAPPET 12032 12032-1002 8
SEAT-SPRING,VALVE 16007 16007-1024 8
SPRING,VALVE,INNER 49078 49078-1001 8
SPRING,VALVE,OUTER 49078A 49078-1002 8
SHIM,TAPPET,2.00T 92025 12037-001 AR
SHIM,TAPPET,2.05T 92025A 12037-002 AR
SHIM,TAPPET,2.10T 92025B 12037-003 AR
SHIM,TAPPET,2.15T 92025C 12037-004 AR
SHIM,TAPPET,2.20T 92025D 12037-005 AR
SHIM,TAPPET,2.25T 92025E 12037-006 AR
SHIM,TAPPET,2.30T 92025F 12037-007 AR
SHIM,TAPPET,2.35T 92025G 12037-008 AR
SHIM,TAPPET,2.40T 92025H 12037-009 AR
SHIM,TAPPET,2.45T 92025I 12037-010 AR
SHIM,TAPPET,2.50T 92025J 12037-011 AR
SHIM,TAPPET,2.55T 92025K 12037-012 AR
SHIM,TAPPET,2.60T 92025L 12037-013 AR
SHIM,TAPPET,2.65T 92025M 12037-014 AR
SHIM,TAPPET,2.70T 92025N 12037-015 AR
SHIM,TAPPET,2.75T 920250 12037-016 AR
SHIM,TAPPET,2.80T 92025P 12037-017 AR
SHIM,TAPPET,2.85T 92025Q 12037-018 AR
SHIM,TAPPET,2.90T 92025R 12037-019 AR
SHIM,TAPPET,2.95T 92025S 12037-020 AR
SHIM,TAPPET,3.00T 92025T 12037-021 AR
SHIM,TAPPET,3.05T 92025U 12037-022 AR
SHIM,TAPPET,3.10T 92025V 12037-023 AR
SHIM,TAPPET,3.15T 92025W 12037-024 AR
SHIM,TAPPET 3.20T 92025X 12037-025 AR
