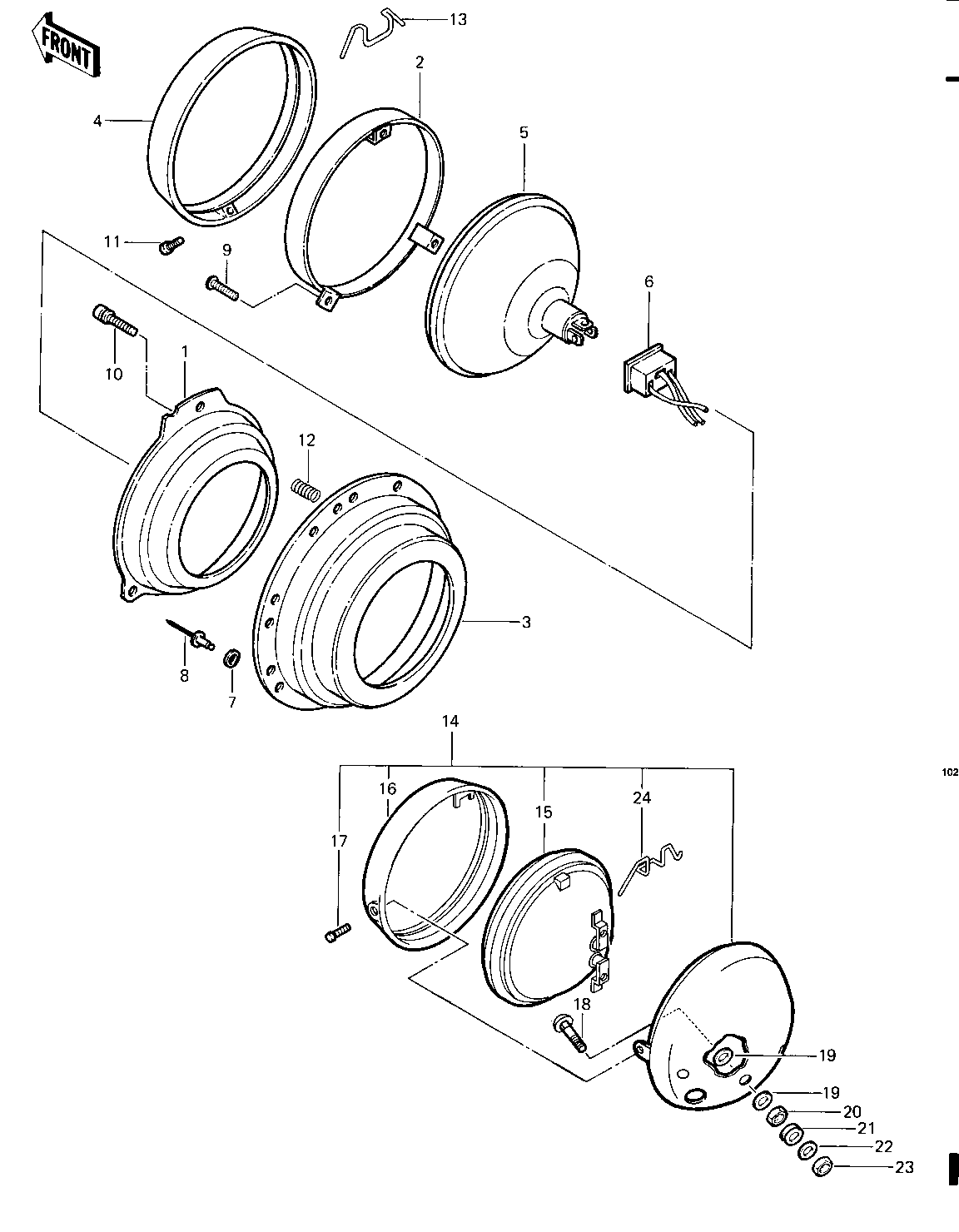

1981 Police 1000 - HEADLIGHT/PURSUIT LIGHTS (KZ1000-C4)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER | 1 | 13091-4007 | 1 | ||
| RETAINER | 2 | 14020-4002 | 1 | ||
| BODY HEAD LIGHT | 3 | 23005-4003 | 1 | ||
| RIM,HEAD LAMP | 4 | 23006-4002 | 1 | ||
| SEALED BEAM UNIT | 5 | 23007-1006 | 1 | ||
| SOCKET ASSY,HEAD LAM | 6 | 23008-037 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 7 | 92002-3539 | 4 | ||
| RIVET | 8 | 534YW0608 | 4 | ||
| SCREW PAN HEAD | 9 | 92009-4007 | 3 | ||
| SCREW FOCUS ADJUSTIN | 10 | 92009-4008 | 2 | ||
| SCREW PAN HEAD 4X14 | 11 | 92009-4009 | 1 | ||
| SPRING | 12 | 92081-4014 | 1 | ||
| SPRING CLIP | 13 | 92081-4015 | 1 | ||
| LAMP ASSY PURSUIT | 14 | 23016-4004 | 2 | ||
| STDSEAL BEAM,PRSUT,RED | 15 | 23007-1001 | 2 | ||
| SEAL BEAM,PRSUT,BLUE | 15 | 23007-1002 | (2 | ||
| SEAL BEAM,PRSUT,AMBE | 15 | 23007-1003 | (2 | ||
| RIM,PURSUIT LAMP | 16 | 23006-4004 | 2 | ||
| SCREW-4X8,LAMP RIM | 17 | 92009-4011 | 2 | ||
| BOLT,PURSUIT LIGHT | 18 | 92001-4015 | 4 | ||
| WASHER PLAIN 8MM | 19 | 411B0800 | 8 | ||
| NUT 6MM | 20 | 312B0600 | 4 | ||
| GROMMET | 21 | 92071-056 | 4 | ||
| WASHER 6.5X20X1.6T | 22 | 92022-125 | 4 | ||
| NUT | 23 | 92019-008 | 4 | ||
| RETAINER,CLIP | 24 | 14020-1096 | 6 |
| HOLDER | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RETAINER | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BODY HEAD LIGHT | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,HEAD LAMP | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEALED BEAM UNIT | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET ASSY,HEAD LAM | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW FOCUS ADJUSTIN | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 4X14 | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING CLIP | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LAMP ASSY PURSUIT | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| STDSEAL BEAM,PRSUT,RED | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL BEAM,PRSUT,BLUE | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | (2 |
| DESTINATION | |
| REMARKS | |
| SEAL BEAM,PRSUT,AMBE | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | (2 |
| DESTINATION | |
| REMARKS | |
| RIM,PURSUIT LAMP | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-4X8,LAMP RIM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,PURSUIT LIGHT | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 8MM | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT 6MM | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER 6.5X20X1.6T | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RETAINER,CLIP | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
