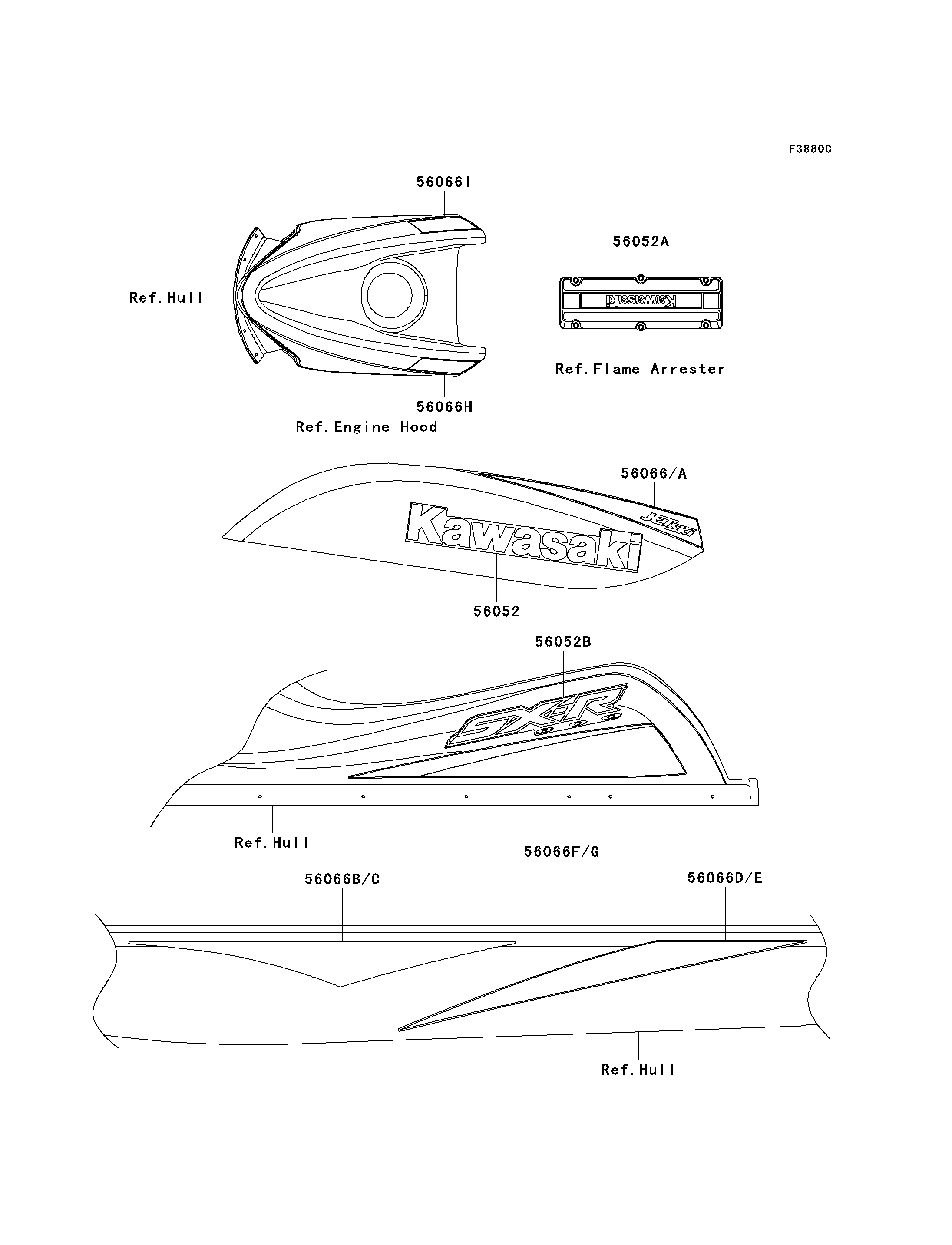

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,ENGINE HOOD,KAWASAKI | 56052 | 56052-3799 | 2 | ||
| MARK,KAWASAKI | 56052A | 56052-3807 | 1 | ||
| MARK,DECK,SX-R 800 | 56052B | 56052-3831 | 2 | ||
| PATTERN,ENGINE HOOD,LH | 56066 | 56066-3829 | 1 | ||
| PATTERN,ENGINE HOOD,RH | 56066A | 56066-3830 | 1 | ||
| PATTERN,HULL,FR,LH | 56066B | 56066-3831 | 1 | ||
| PATTERN,HULL,FR,RH | 56066C | 56066-3832 | 1 | ||
| PATTERN,HULL,RR,LH | 56066D | 56066-3833 | 1 | ||
| PATTERN,HULL,RR,RH | 56066E | 56066-3834 | 1 | ||
| PATTERN,DECK,LH | 56066F | 56066-3835 | 1 | ||
| PATTERN,DECK,RH | 56066G | 56066-3836 | 1 | ||
| PATTERN,NOSE COVER,LH | 56066H | 56066-3861 | 1 | ||
| PATTERN,NOSE COVER,RH | 56066I | 56066-3862 | 1 |
